Power Mirror Motor: Service and Repair

668219 Removing And Reinstalling Mirror Adjuster Motor

Preliminary work
Remove mirror glass.

Removing mirror adjuster motor

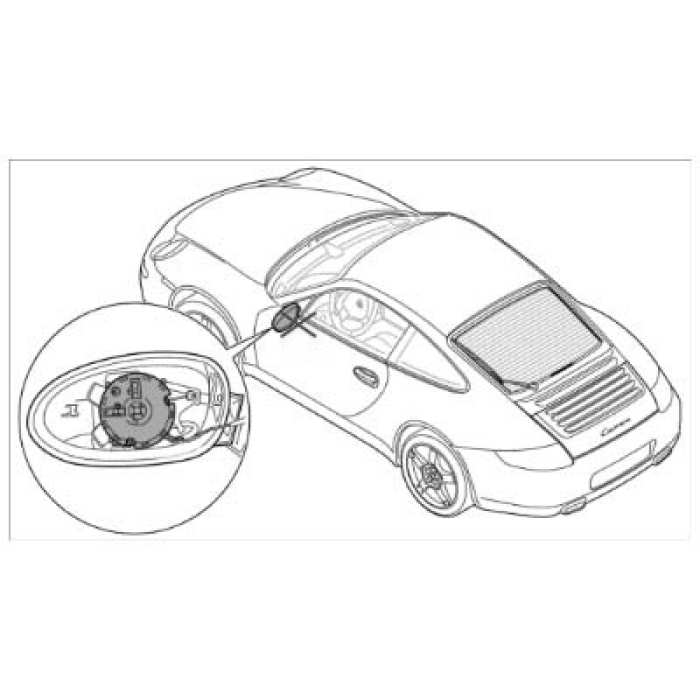

Overview of mirror adjusting motor:

1. Switch off ignition and remove ignition key.

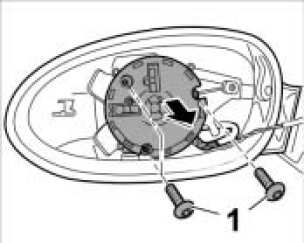

Unscrewing fastening screws from mirror adjusting motor:

2. Unscrew the three fastening screws -1- from mirror adjusting motor.

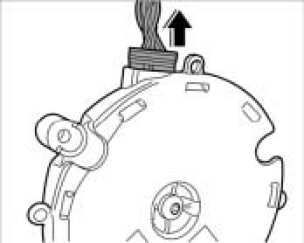

Pulling off connector from mirror adjusting motor:

3. Pull off connector on mirror adjuster motor take off mirror adjusting motor.

Installing mirror adjuster motor

Pushing connector onto the mirror adjusting motor:

1. Push connector onto mirror adjusting motor until it is felt to engage.
2. Insert mirror adjusting motor and screw down the three fastening screws -1-.

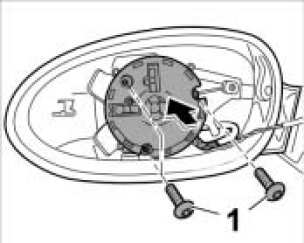

Screwing down fastening screws on the mirror adjusting motor:

3. Switch on ignition and check function of the mirror adjusting motor.

Subsequent work
Install mirror glass.
