Sun Visor: Service and Repair

682337 Disassembling And Assembling Sun Visor

Preliminary work
Remove sun visor.

Removing mirror insert

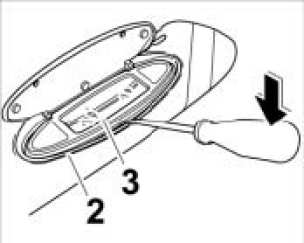

Unclipping mirror insert:

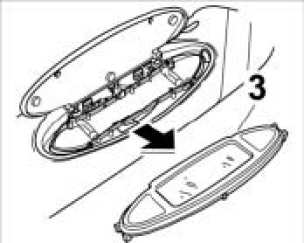

Removing mirror insert:

1. Insert a narrow screwdriver between the mirror insert -3- and mirror housing -2- at the bottom centre, and unclip the mirror insert.

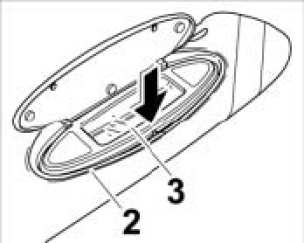

2. Pull the mirror insert -3- upwards and remove from the mirror housing -2-.

Removing bulb and contact clips

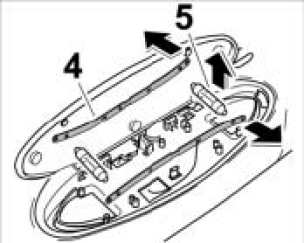

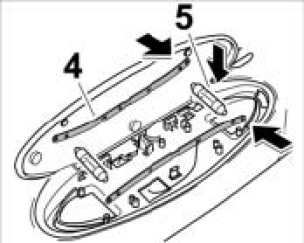

Removing bulb and contact clips:

1. Remove bulb -5- from contact clips -4-. Take the contact clips upwards out of the holder.

Removing mirror housing

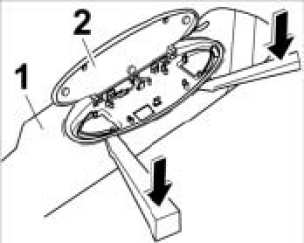

Unclipping mirror housing:

1. Insert a narrow plastic spatula between the mirror housing -2- and the sun visor -1- on the left and right and unclip the mirror housing.

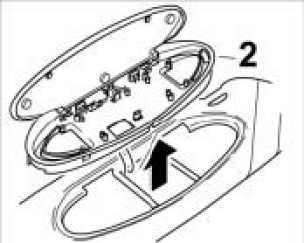

Removing mirror housing:

2. Take the electric lead out of the mirror housing -2- and detach the mirror housing from the sun visor.

Assembling sun visor

Installing mirror housing

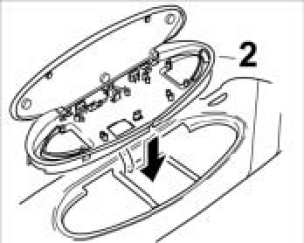

Positioning the mirror housing:

1. Insert electric lead into the mirror housing -2-. Position the mirror housing in the sun visor.

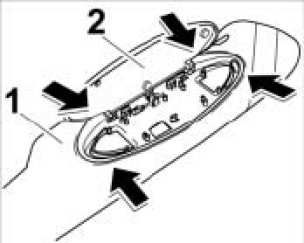

Press in mirror housing:

2. Press the mirror housing -2- at all four corners until it locks into place.

Inserting contact clips and bulb

Inserting contact clips and bulb:

1. Position the contact clips -4- in the mirror housing and fit under the lug. Insert bulb -5-.

Installing mirror insert

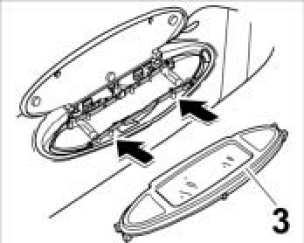

Positioning mirror insert:

1. Position the lugs on the right and left of the mirror insert -3- in the mirror housing.

Clipping in mirror insert:

2. Clip the mirror insert -3- into the mirror housing -2- on the left, right and in the middle.

Subsequent work

Reworking
Install sun visor.
