License Plate Frame: Service and Repair

668319 Removing And Installing Number Plate Cover

Removing front number plate cover

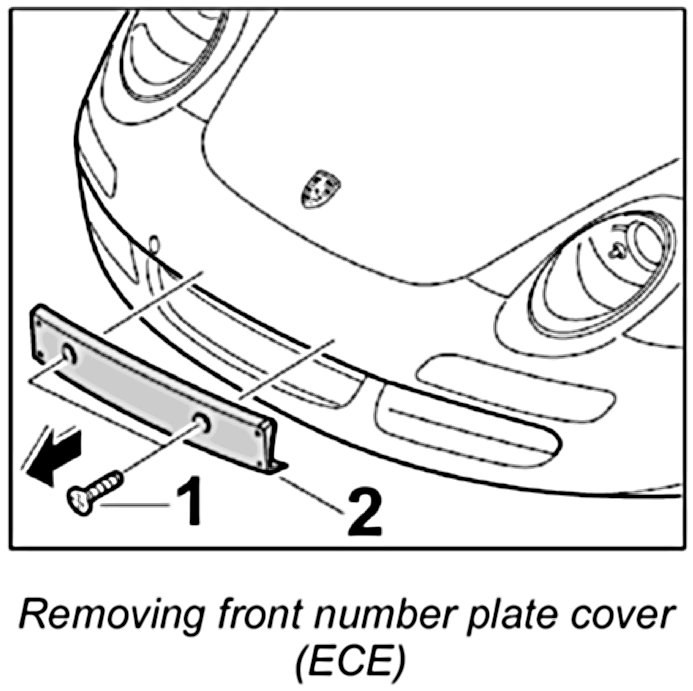

Removing front number plate cover (ECE)
1. Unscrew fastening screws -1- and take off front number plate cover -2-.

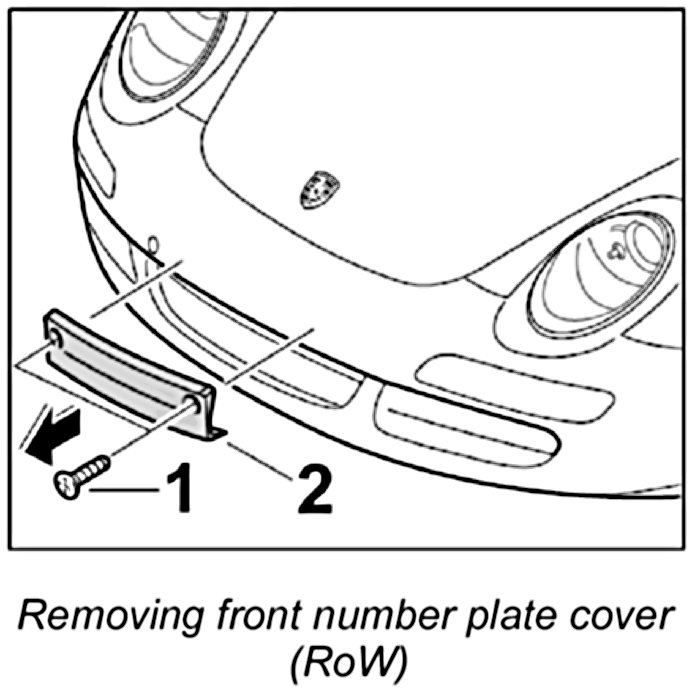

Removing front number plate cover (RoW)
1. Unscrew fastening screws -1- and take off front number plate cover -2-.

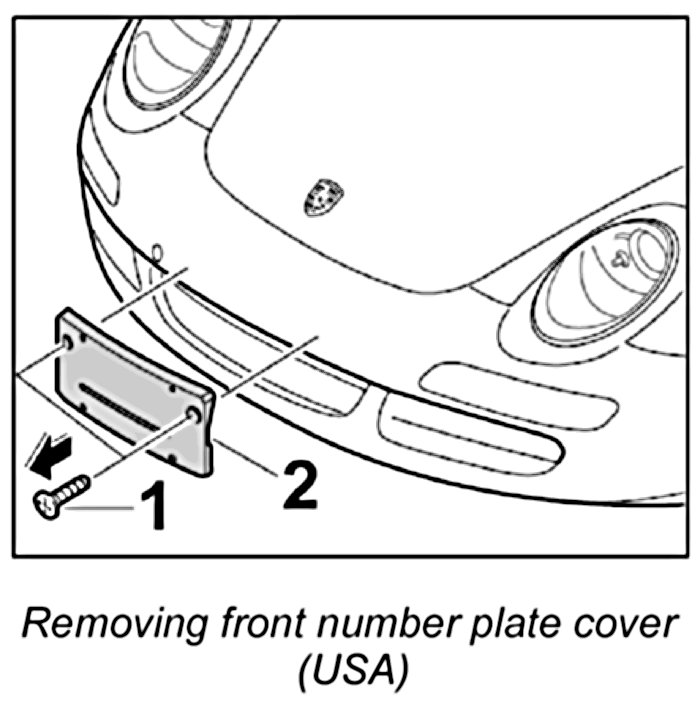

Removing front number plate cover (USA)
1. Unscrew fastening screws -1- and take off front number plate cover -2-.






Removing rear number plate cover

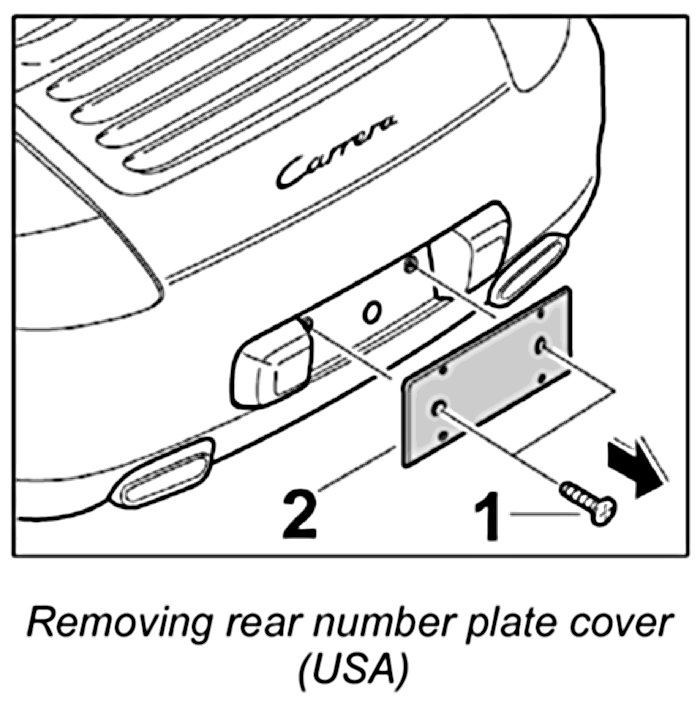

Removing rear number plate cover (USA)
1. Unscrew fastening screws -1- and take off rear number plate cover -2-.






Installing rear number plate cover

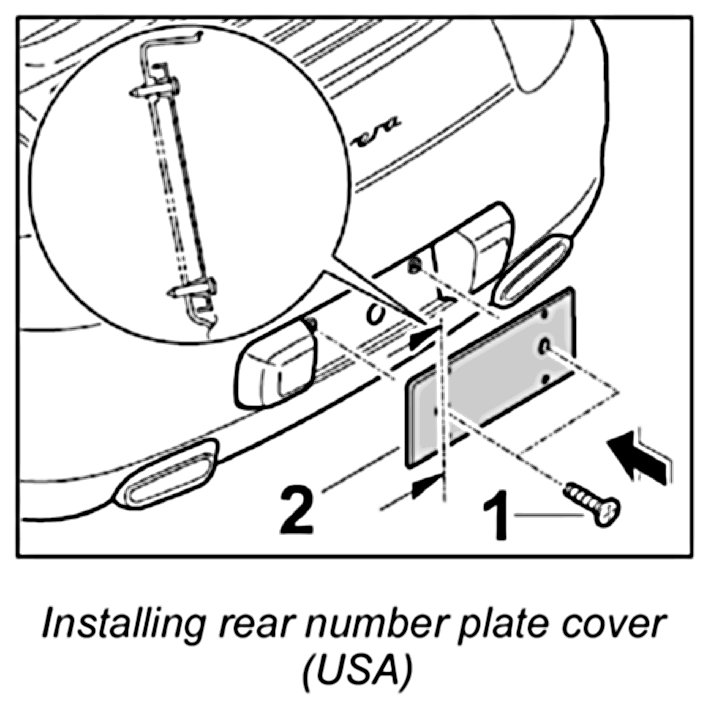

Installing rear number plate cover (USA)
1. Position rear number plate cover -2- at the attachment points on the rear apron and align it.






2. Screw in self-tapping fastening screws -1-.

Installing front number plate cover

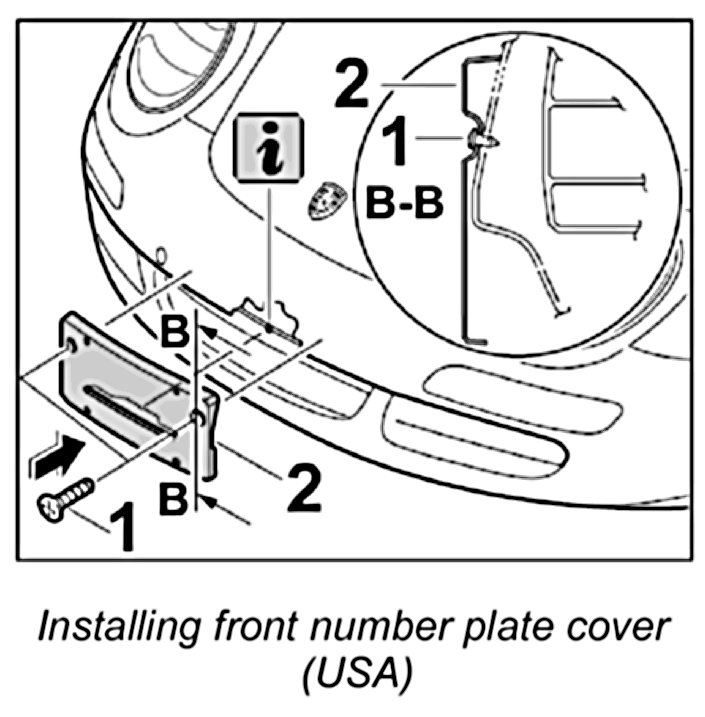

Installing front number plate cover (USA)

NOTE: The centering rib on the front apron is used for positioning the number plate cover.

1. Position front number plate cover -2- on the front apron and align it.






2. Screw in self-tapping fastening screws -1-.

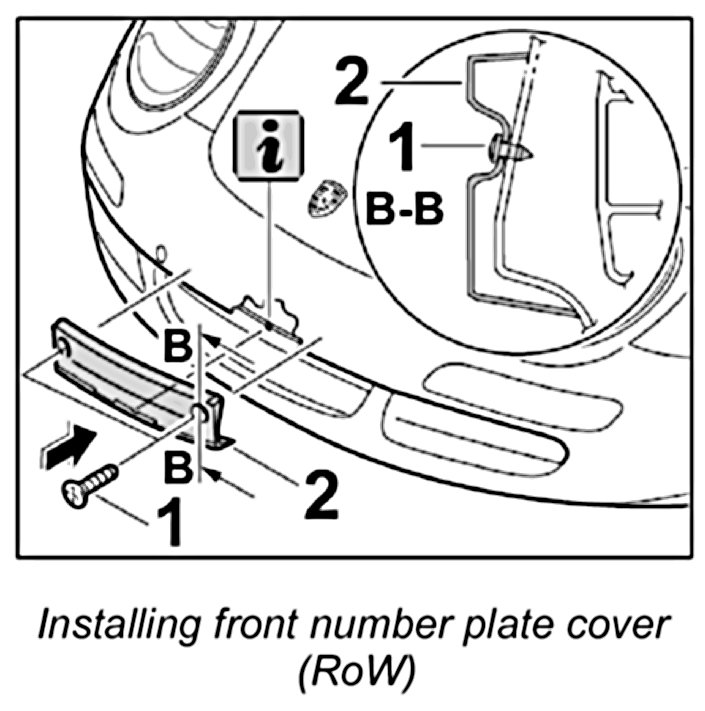

Installing front number plate cover (RoW)

NOTE: The centering rib on the front apron is used for positioning the number plate cover.

1. Position front number plate cover -2- on the front apron and align it.






2. Screw in self-tapping fastening screws -1-.

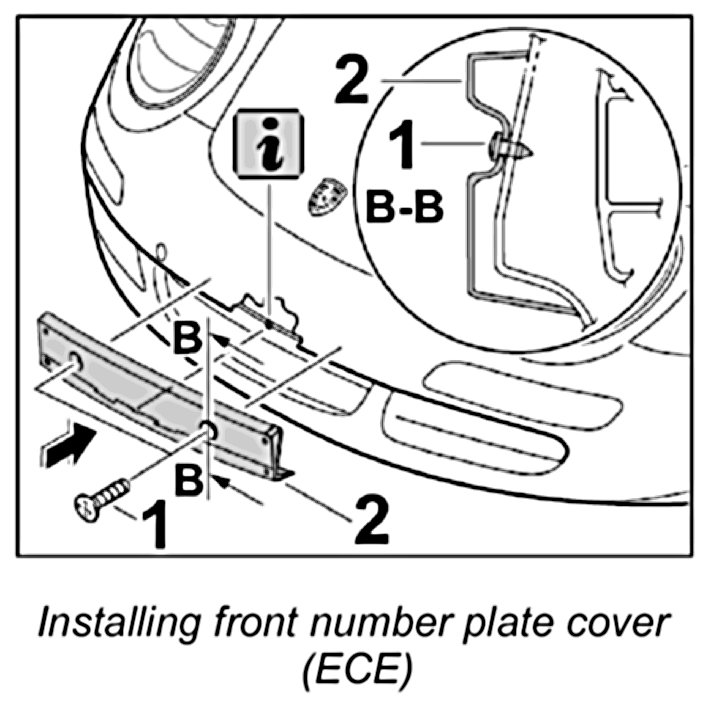

Installing front number plate cover (ECE)

NOTE: The centering rib on the front apron is used for positioning the number plate cover.

1. Position front number plate cover -2- on the front apron and align it.






2. Screw in self-tapping fastening screws -1- .
