Front Bumper Shock Absorber: Service and Repair

633319 Removing And Installing Front Bracket (Impact Pipe)

Preliminary work
Remove the front apron.
Remove front bumper.

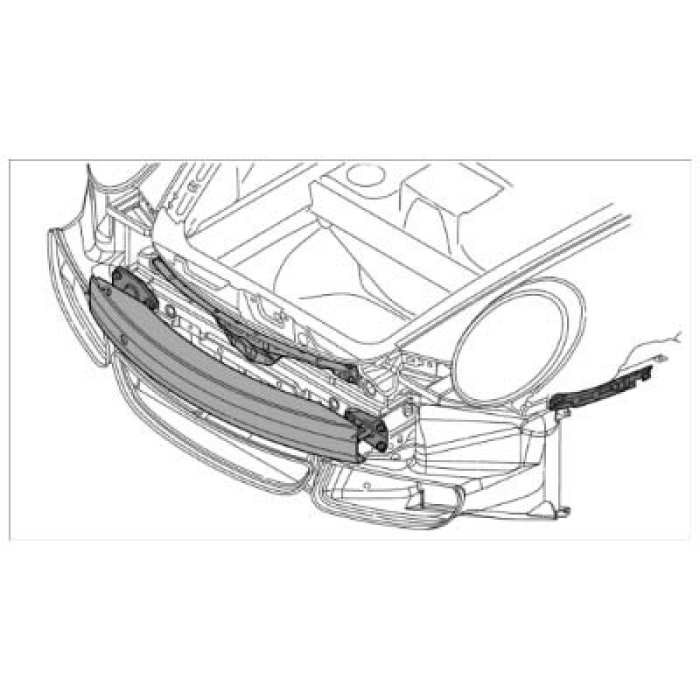

Removing front member

Removing front impact pipe

Overview, front impact pipe:

1. Undo fastening screws -1-.

Removing front impact pipe:

2. Remove the impact pipe -2- and seal -3-.

Installing front bracket (impact pipe)

Install front impact pipe

Overview, front impact pipe:

1. Position the seal impact pipe -3- and impact pipe -2-.

Install front impact pipe:

2. Screw in fastening screws M8 x 30 -1- and tighten using tightening torque Final tightening 17 ftlb.

Subsequent work
Install front bumper
Install the front apron.
