Removing Y-Shaped Pipe

Removing And Installing Cowl For Throttle Body (Y-shaped Pipe)







Removing Y-shaped pipe - Cayenne S (type M48/00)

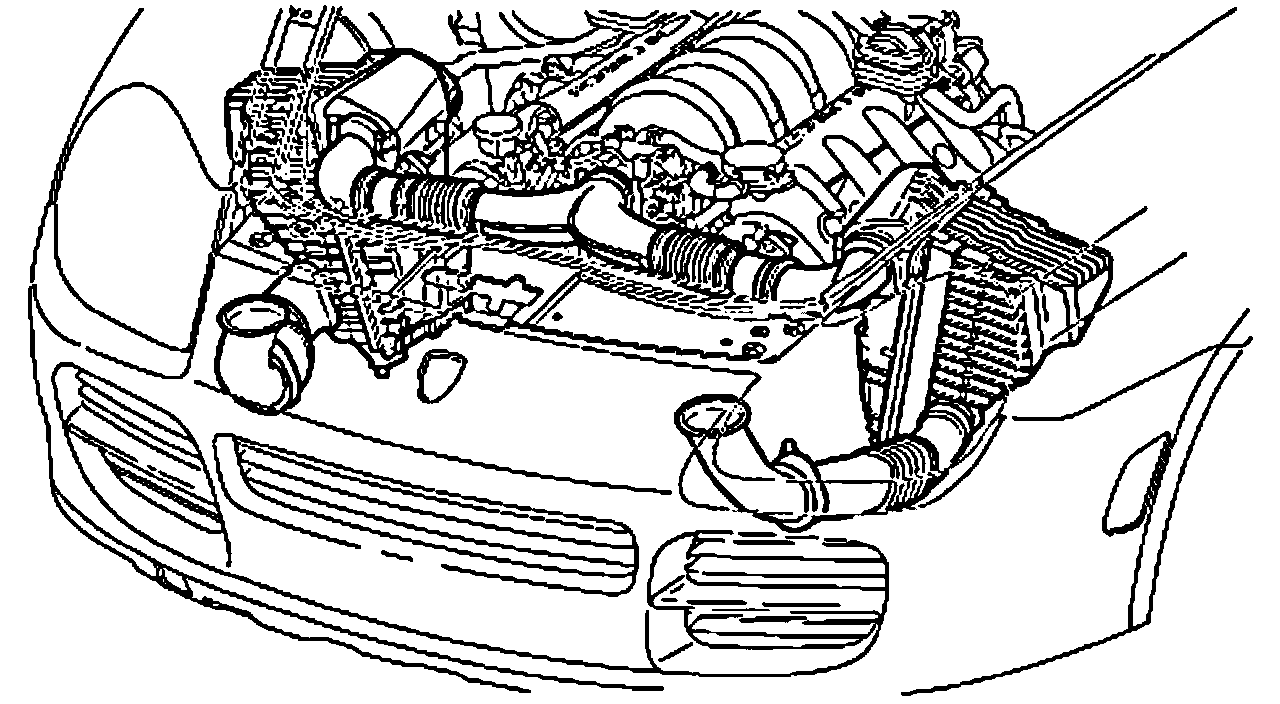

1. Remove the front engine compartment cover.

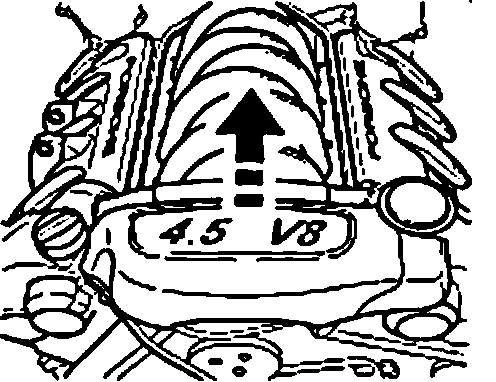

2. Pull the cover of the throttle body vertically upwards.

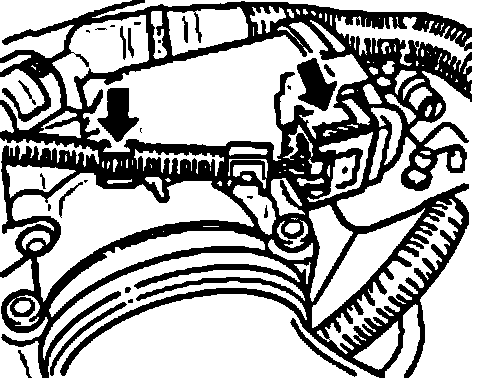

3. Separate the electrical connection from the throttle adjuster. To do this, press on the plug at the top and bottom and, at the same time, pull it off. Unclip the cable from the sheetmetal holder.

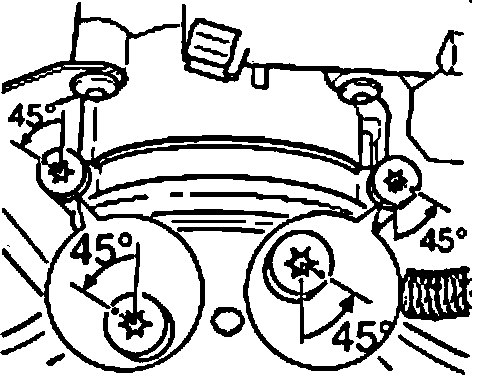

4. Release the fastening pins on the throttle body. To do this, twist pins through 45 degrees in an anti-clockwise direction. The dot on the pins must appear as illustrated in the figure.

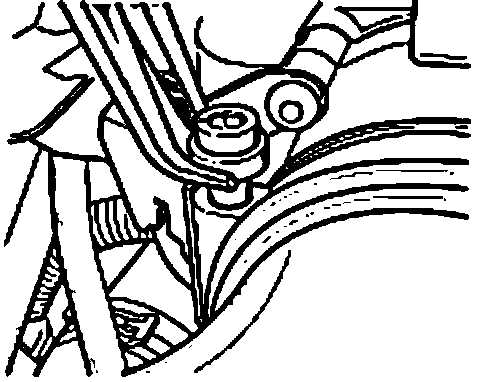

5. Remove the fastening pins. To do this, grasp the pin by the rubber ring with a pliers and pull it out.







6. Pull off the Y pipe from the throttle body.

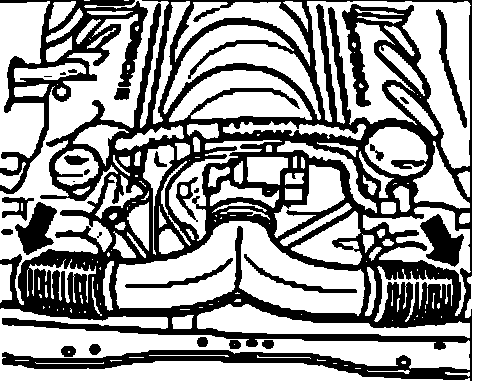

7. Disconnect the air flow sensor connections. To do this, undo the hose clamps on the left and right on the bellows and pull the bellows off the air flow sensors.







8. Remove the hose on the Y pipe. To do this, press the button and disconnect the vacuum line.
