Auxiliary Air Conditioning System

Removing and Installing Vents

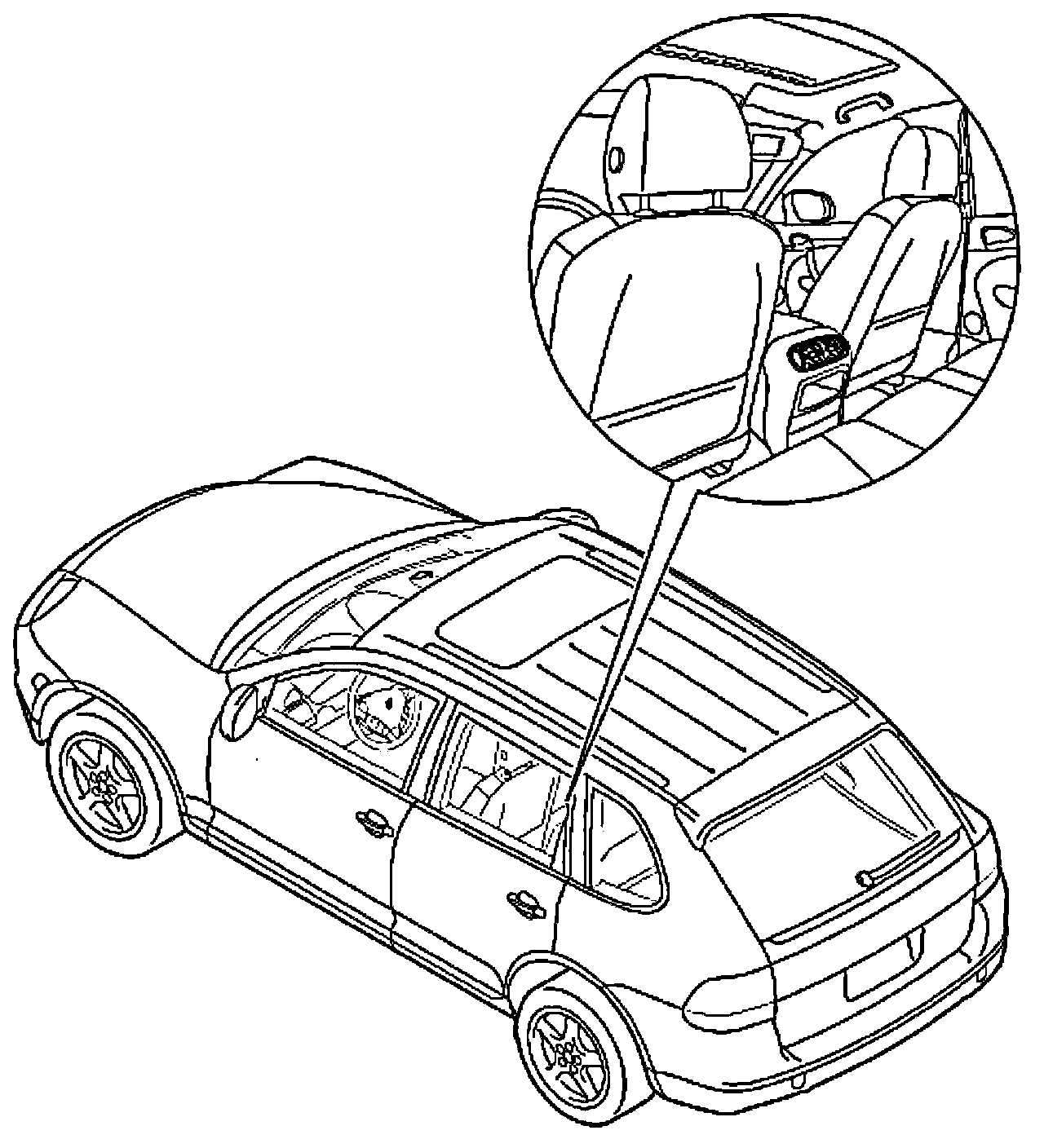

Removing B-pillar Vent
1. Remove vent.

Installing B-pillar Vent
1. Install vent.

Removing Center Console Vent

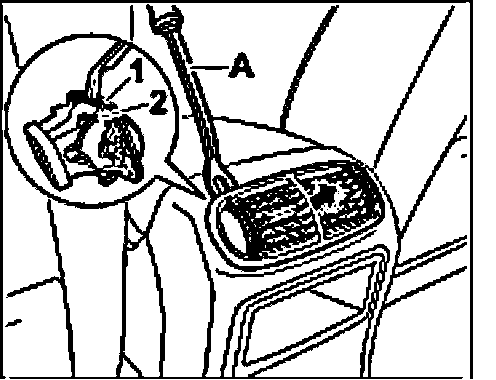

NOTE: Slide in the removal tool, universal 21 far enough so that when levering out, this rests on the vent -2- and not on the cover -1-.

1. Lever out the vent all the way around with the removal tool, universal 21.

Installing Centre Console Vent

NOTE: Install the vent with the ring markings -3- facing upward.







1. Centre the vent and press it in -arrow- until the locking tabs can be felt to engage.

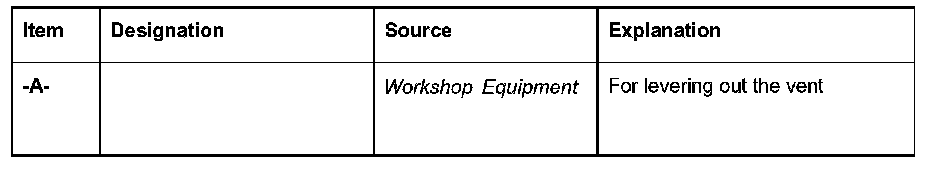

Tools
