Air Conditioner/Removing and Installing Centre Air Vent

Removing and Installing Centre Air Vent

Removing Centre Air Vent

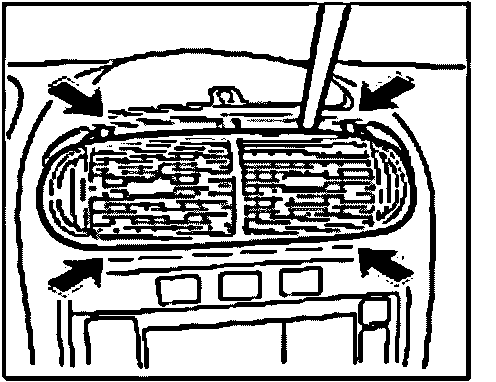

1. Carefully apply a plastic spatula at the four points between the air vent and dashboard and pry out the air vent.
2. Press the electrical plug connection and pull off the plug.

Installing Centre Air Vent
1. Connect electrical plug connection.
2. Position air vent and press into the dashboard until the air vent engages.
