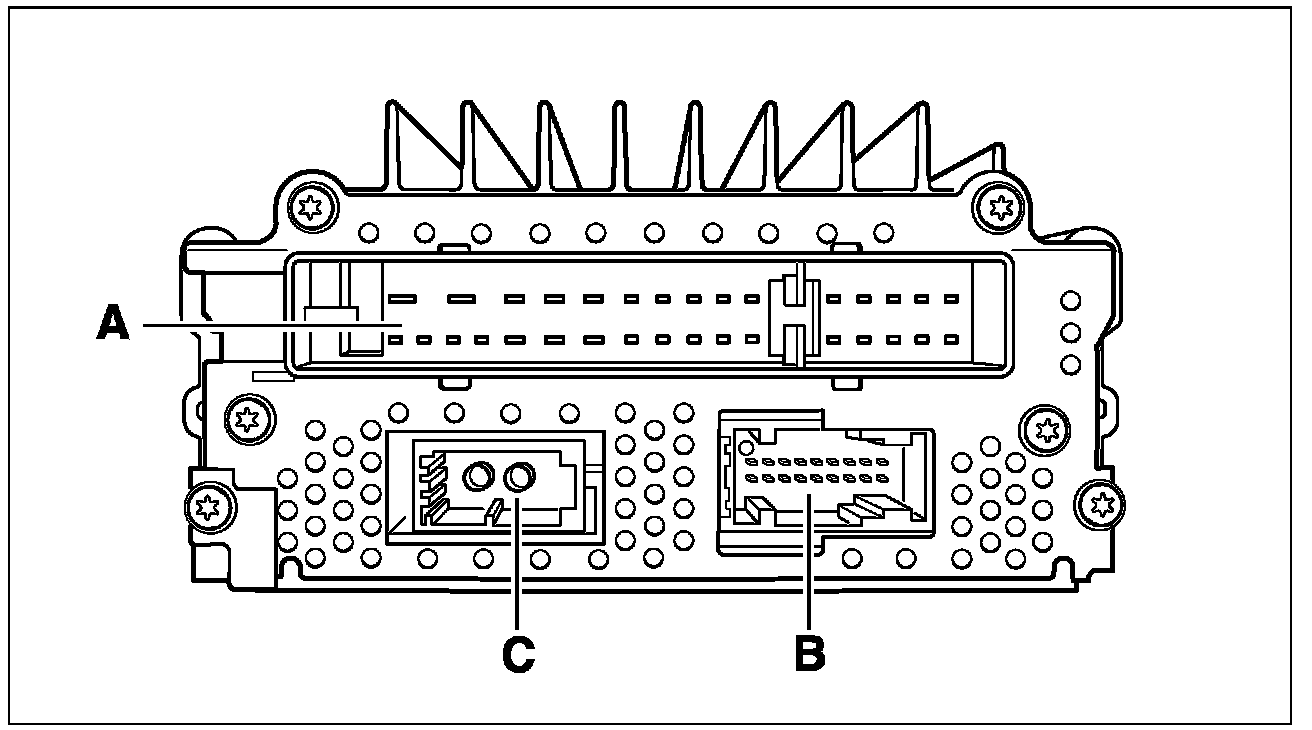

Component Pin Assignment - External Bose Amplifier
Component Pin Assignment - External Bose Amplifier

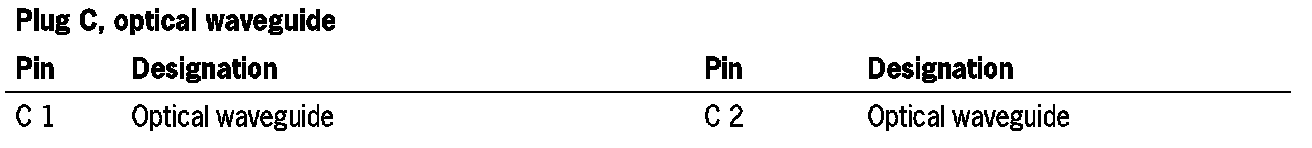

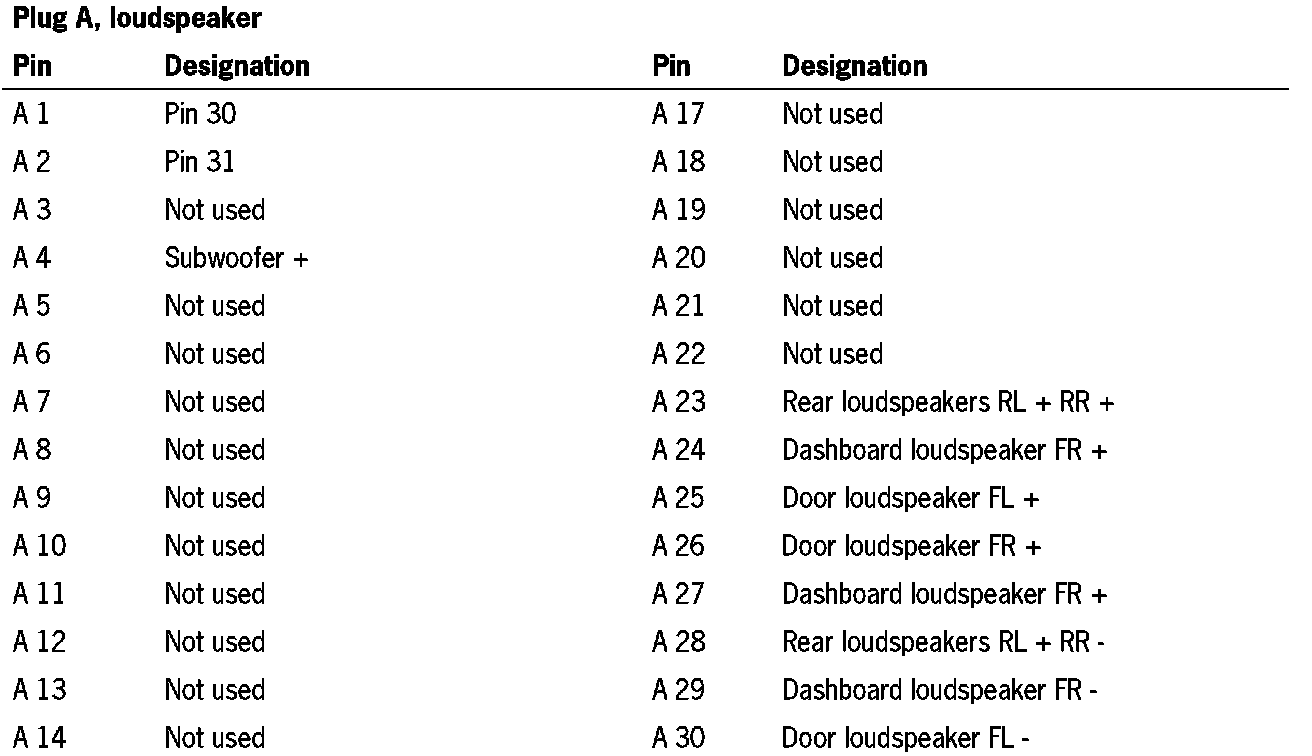

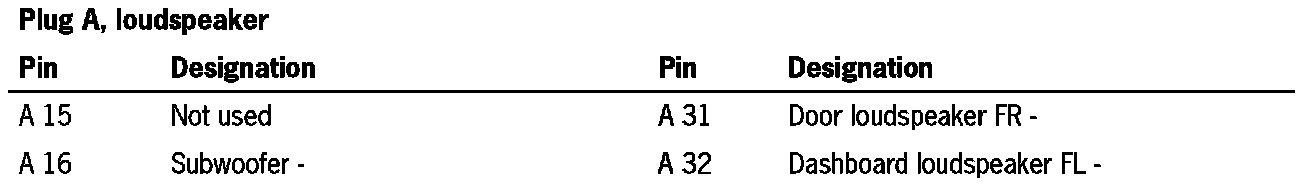

Connector Pin Assignment - External BOSE
Amplifier
Connector Assignment
