Power Steering Pump: Service and Repair

Removing and installing hydraulic pump

Engine installed

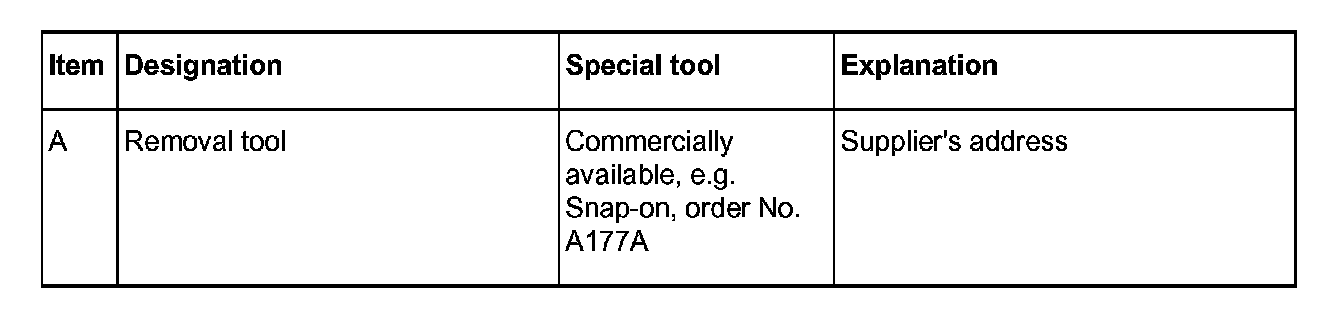

Tools





Remove hydraulic pump

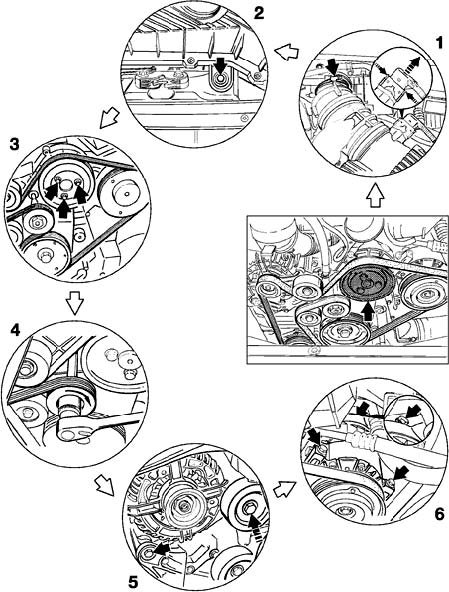

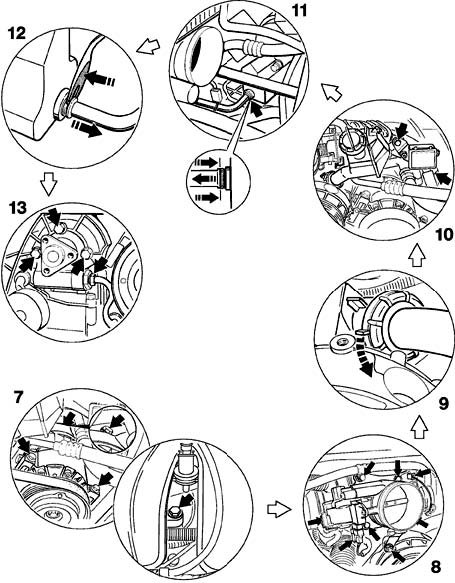

Removal overview of the components

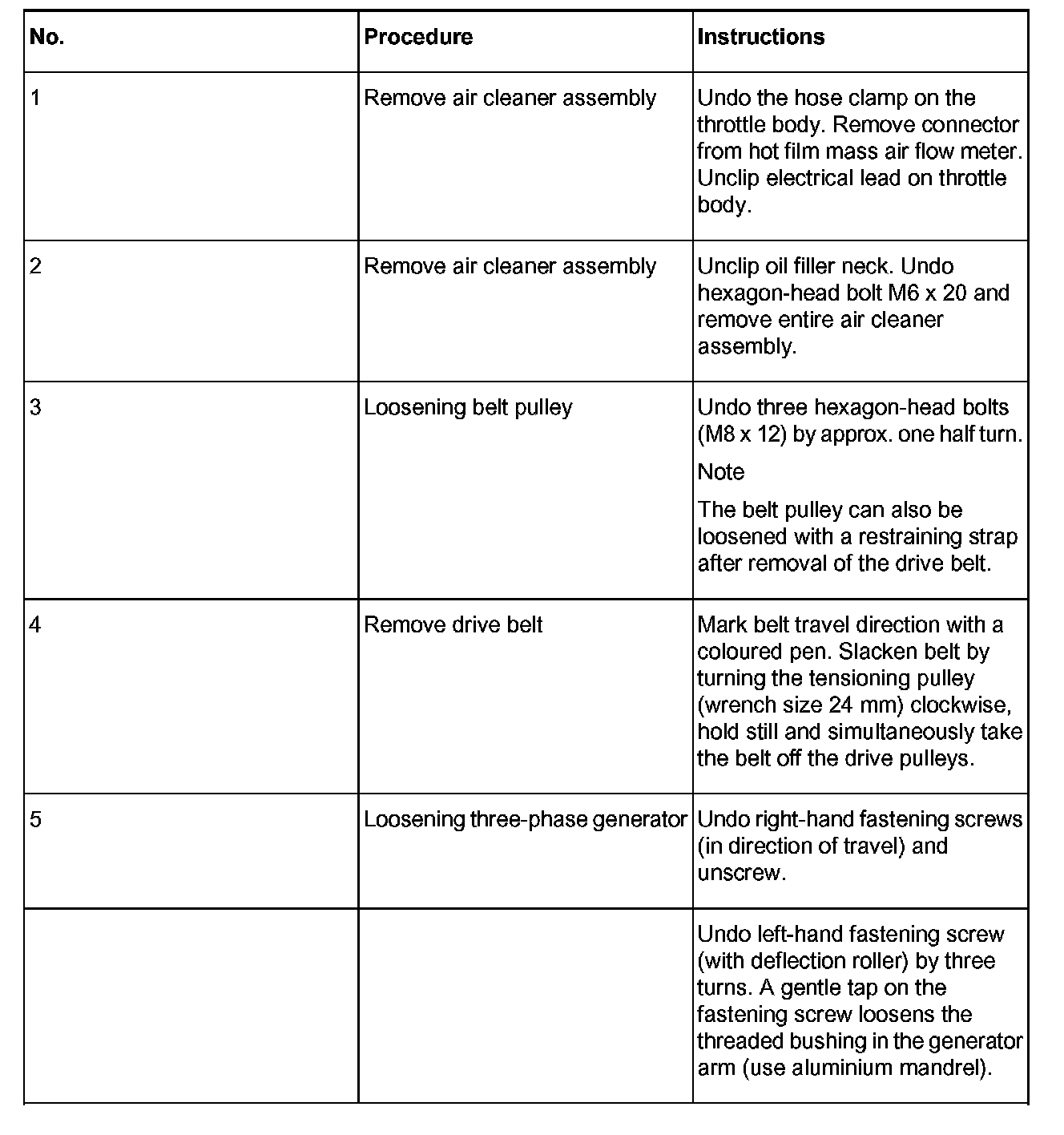

1 Removing air cleaner assembly
2 Removing air cleaner assembly
3 Loosening belt pulley of the hydraulic pump
4 Relieving and removing drive belt
5 Loosening three-phase generator
6 Loosening air conditioning compressor

Remove hydraulic pump





Removal overview of the components

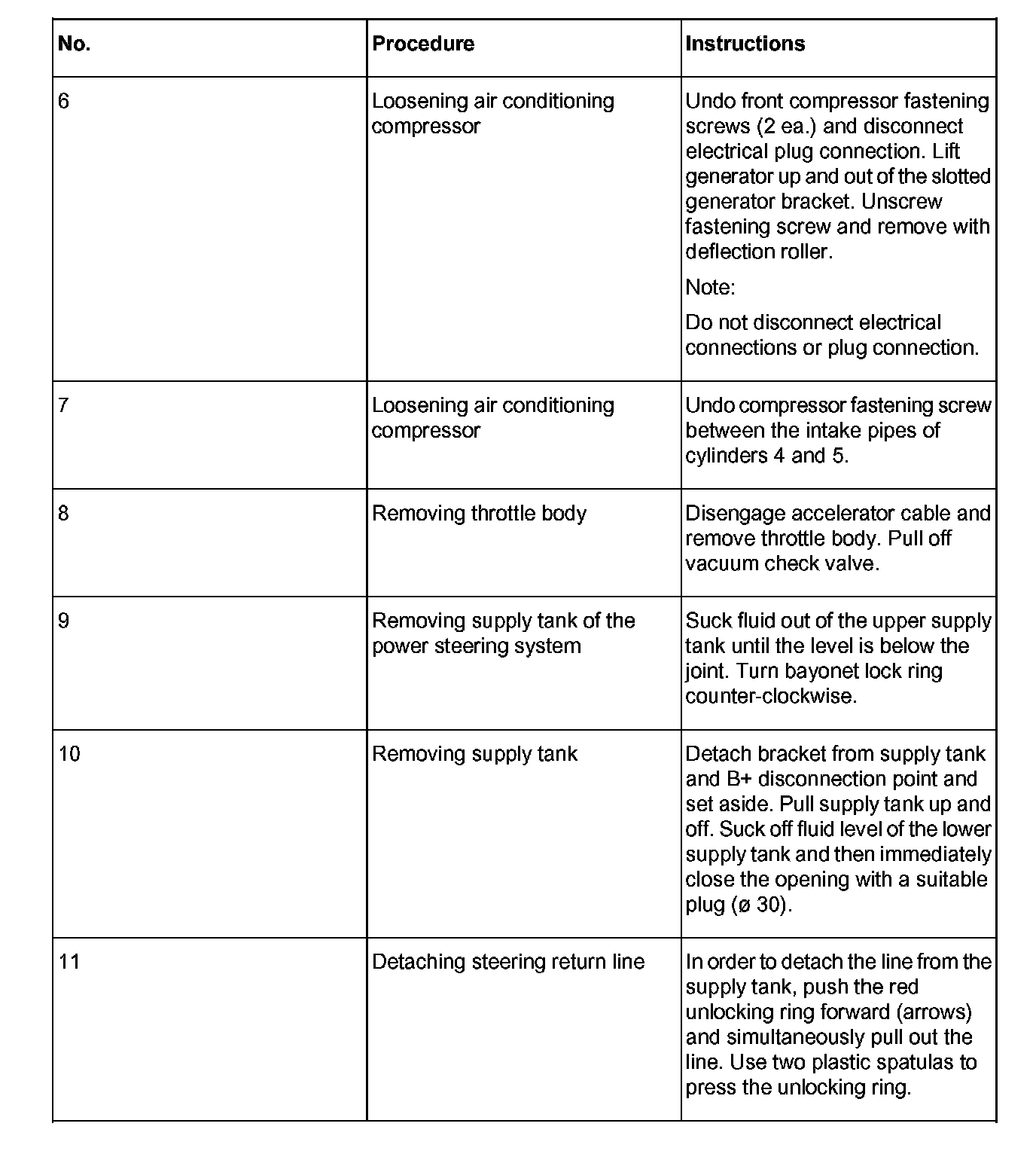

7 Loosening air conditioning compressor
8 Removing throttle body
9 Removing supply tank of the power steering system
10 Removing supply tank of the power steering system
11 Detaching steering return line

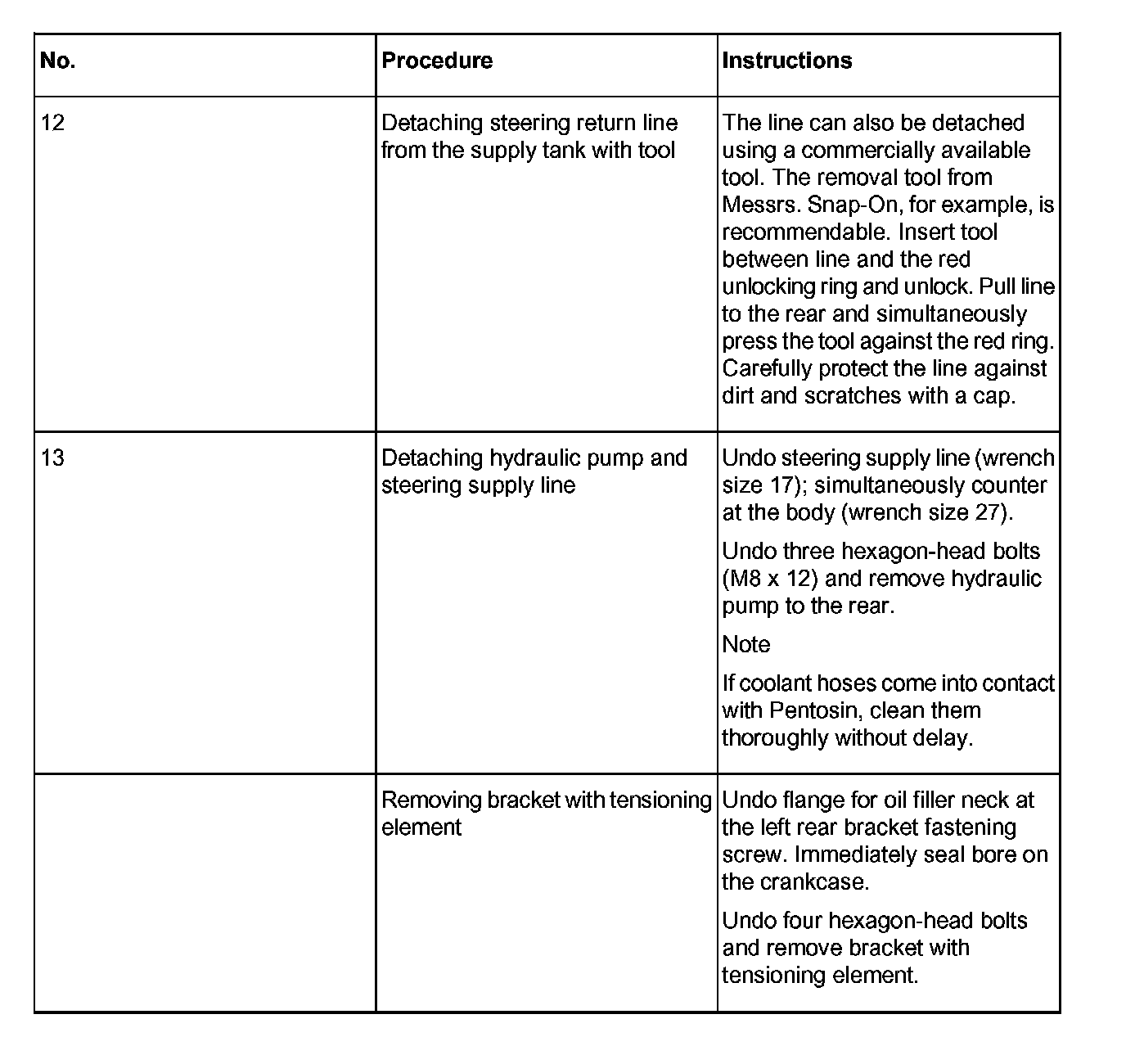

12 Detaching steering return line from the supply tank with tool











13 Detaching hydraulic pump and steering supply line

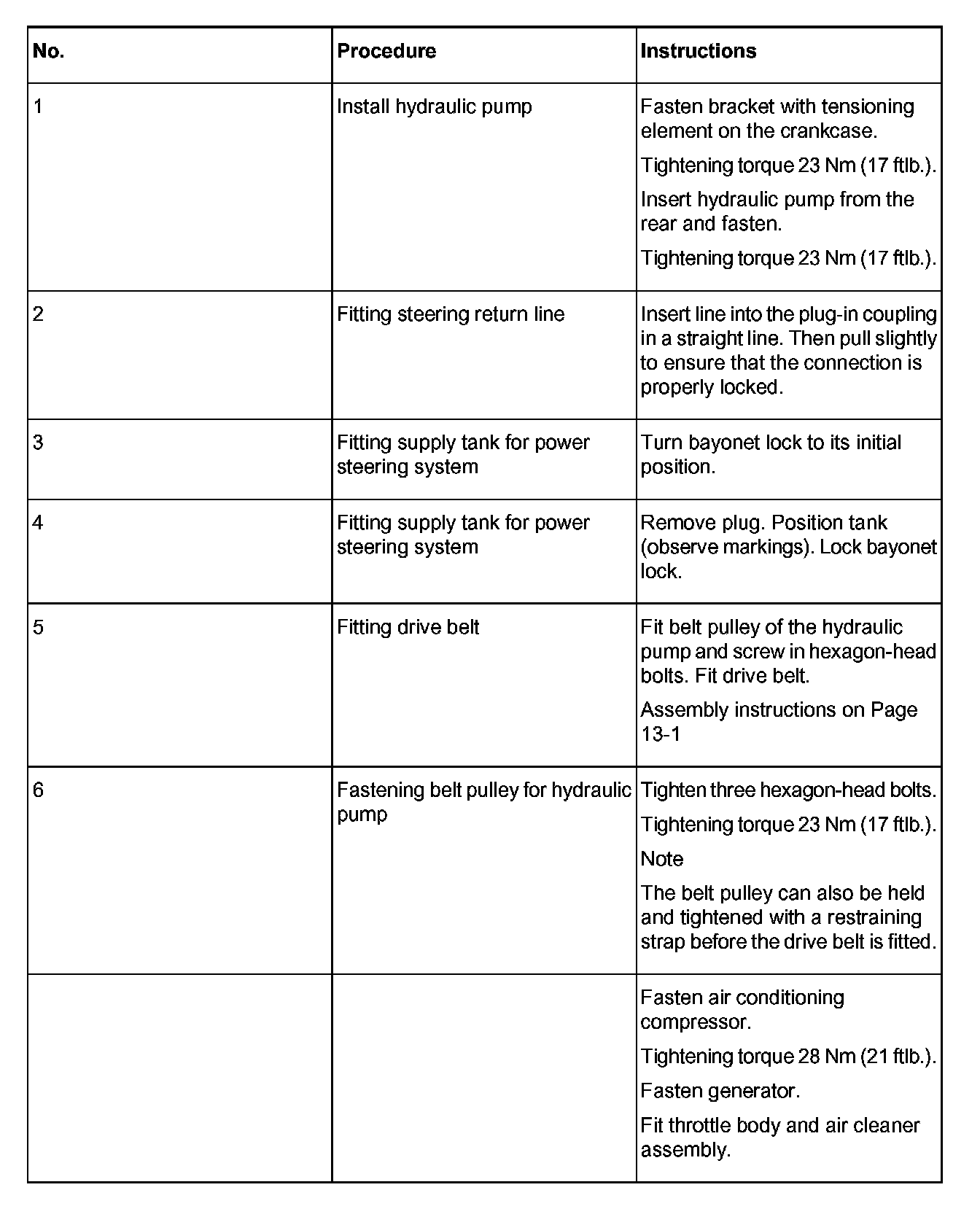

Install hydraulic pump
