Wiper Blade: Service and Repair

Removing And Installing The Wiper Blades







INFORMATION:

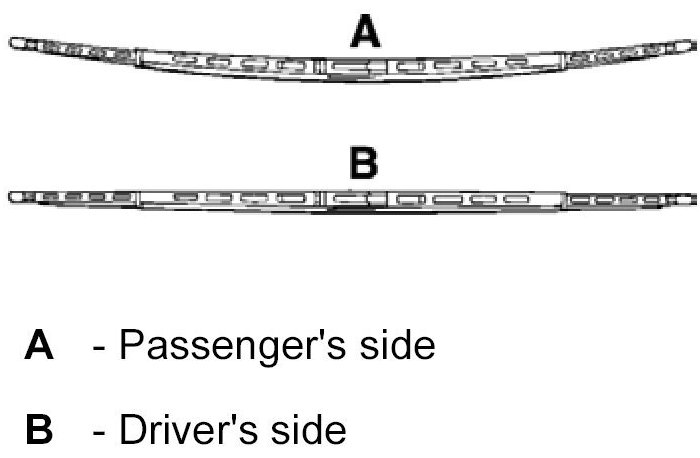

- The wiper blades for the driver's and passenger's side are different. The wiper blade on the driver's side is straight. On the passenger's side it is curved. This arrangement applies to left-hand drive and right-hand drive vehicles.
- The spoiler edge on the wiper blade on the driver's side must face downwards.

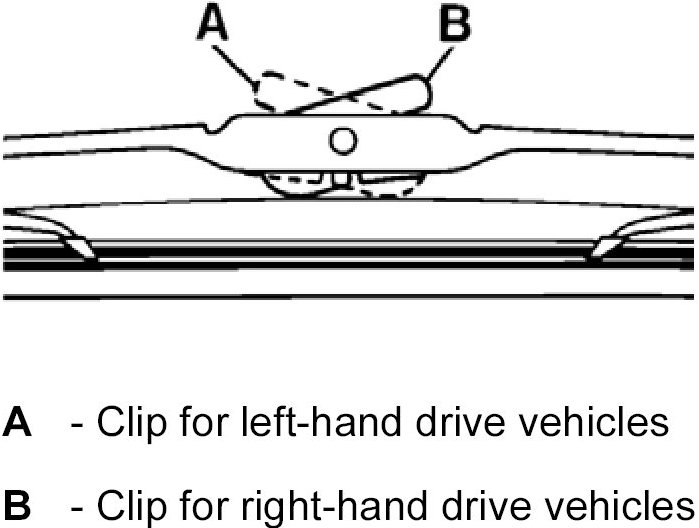

The clip installation position must be observed when installing the wiper blades for left-hand drive and right-hand drive vehicles.
