Disassembling and Assembling Electrohydraulic Control Unit

Disassembling and assembling electrohydraulic control unit (as of MY 2002)

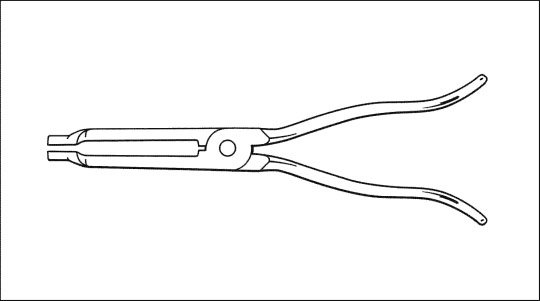

Tools








Overview








Disconnecting hydraulic and electrical control unit

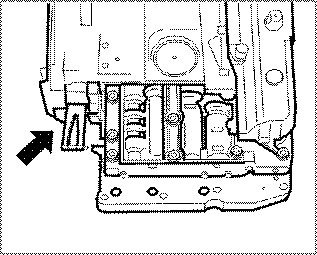

1. Remove electrical control unit - 12 in overview -. To do so, bend back the retaining lug at the strengthening rib on the oil temperature sensor.

Removing solenoid and control valve

1. Pull off plastic cover - 1 or 2 in overview.
2. Unscrew screw - 3 in overview -, remove leaf spring - 5 in overview - and pull out solenoid or control valve - 6 to 11 in overview - if necessary with a pair of pliers.

Installing solenoid and control valve

1. Press in new magnet or control valve - 6 to 11 in overview -. Ensure correct seating.
2. Fit leaf spring - 5 in overview - and screw in screw - 3 in overview -.
3. Fit plastic cover - 1 or 2 in overview -.

Reassembling the hydraulic and electrical control unit

1. Place the control unit carefully in position. The guide pin must engage in the guide bore of the hydraulic control unit.
