Belt Tensioner

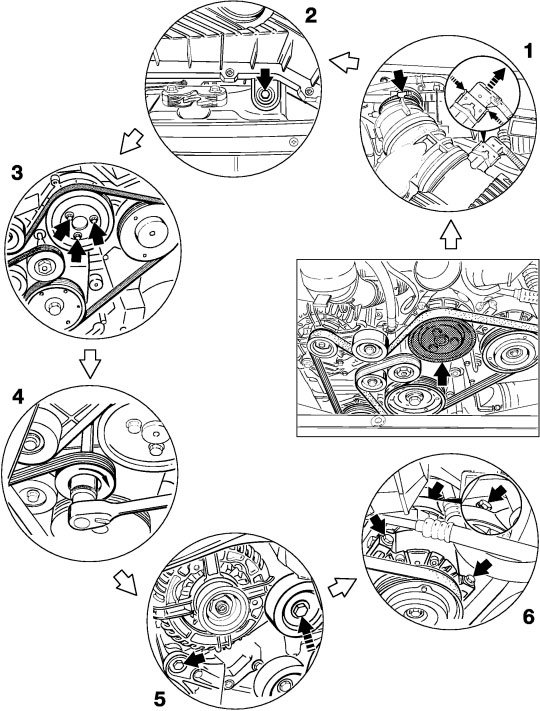

Removing and installing belt tensioner

Engine installed

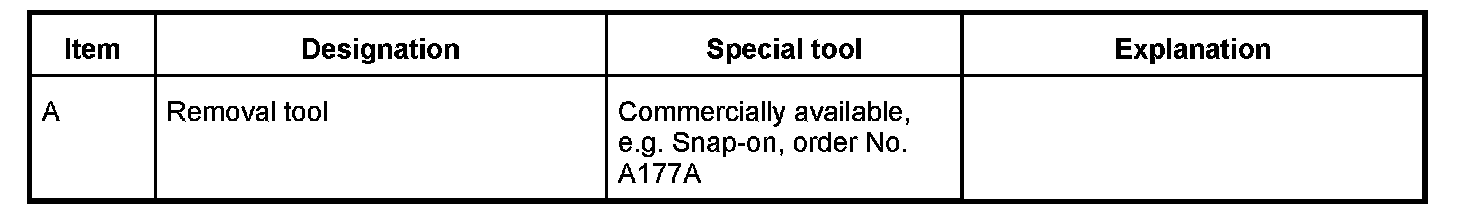

Tools

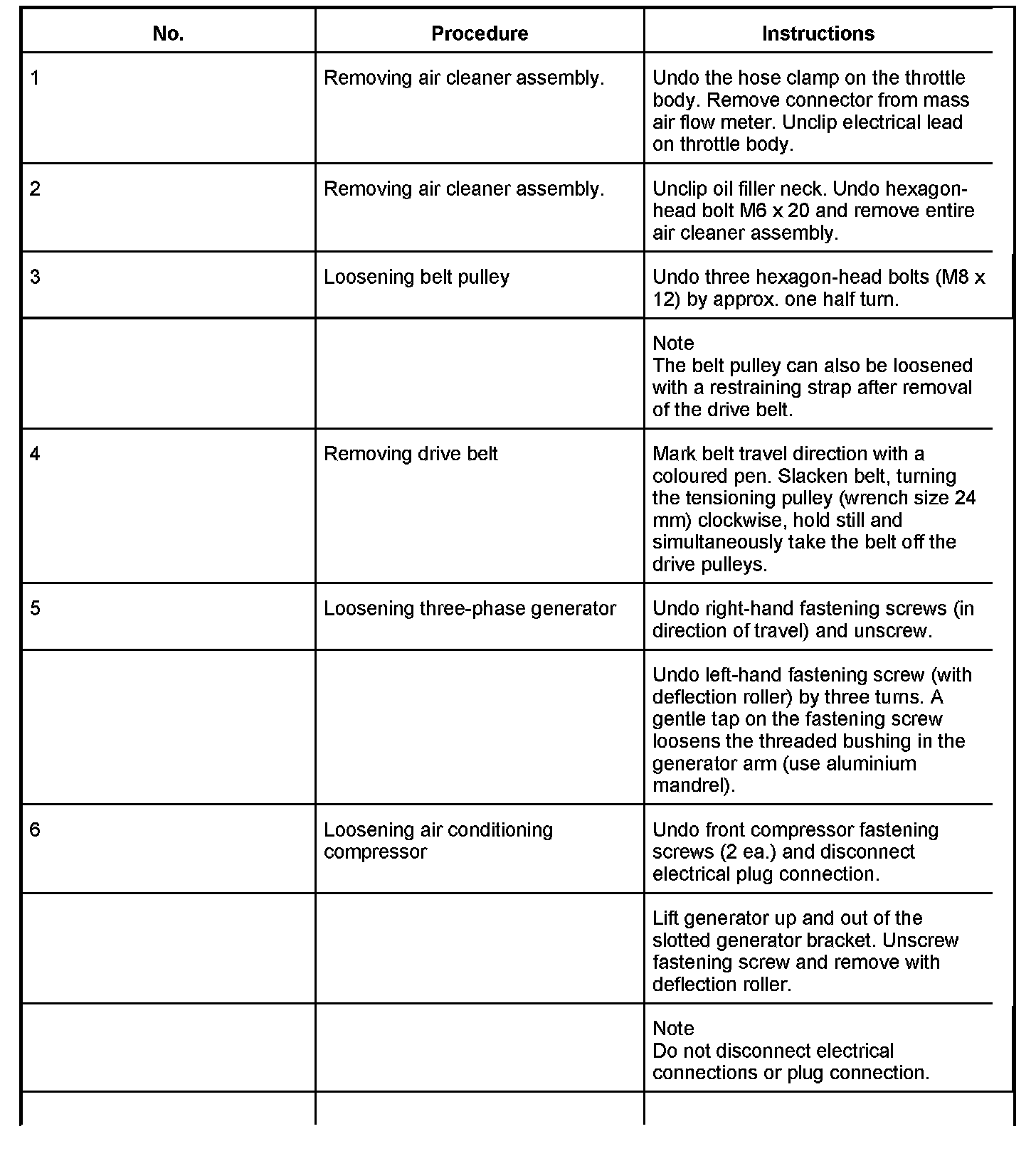

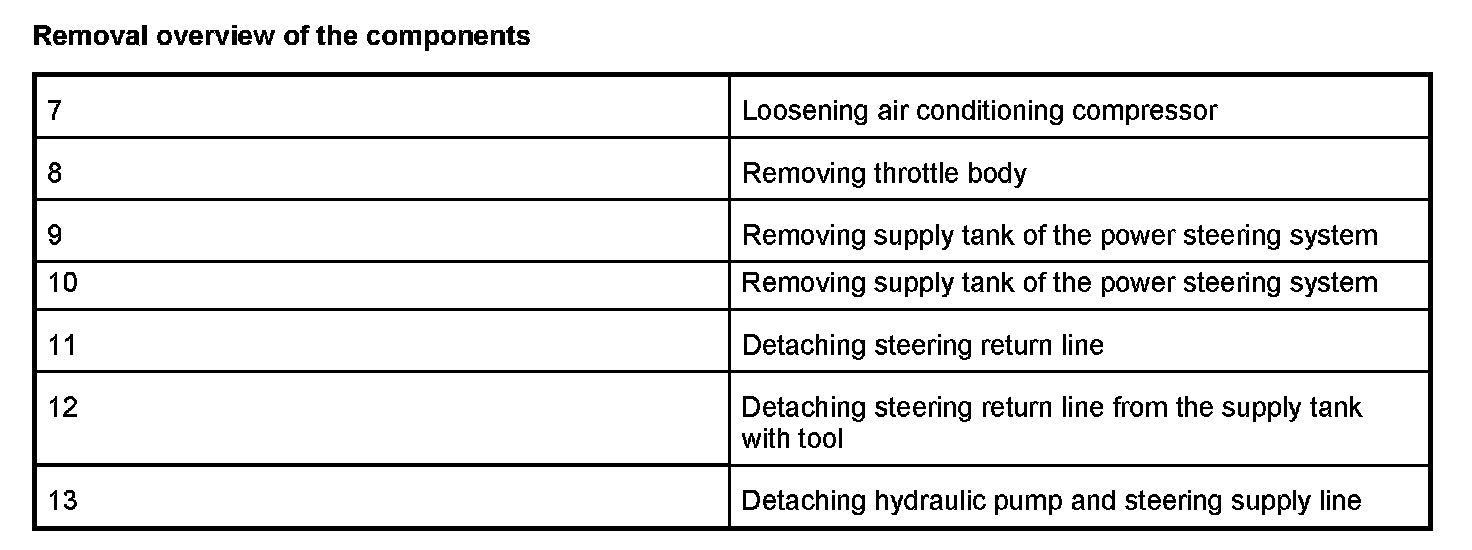

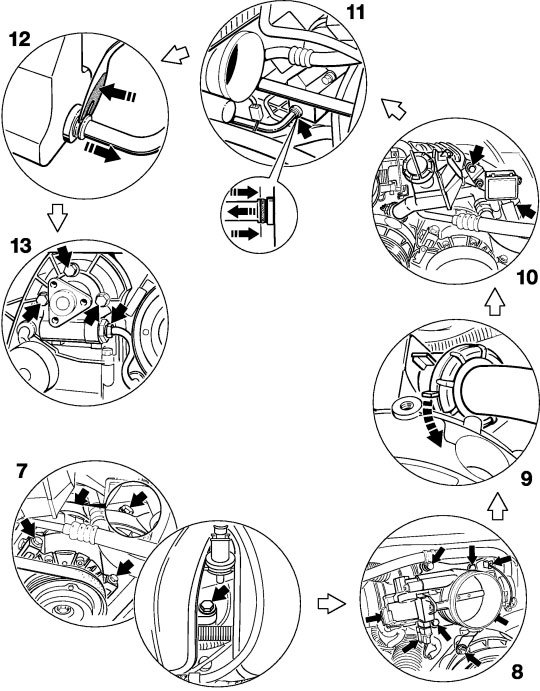

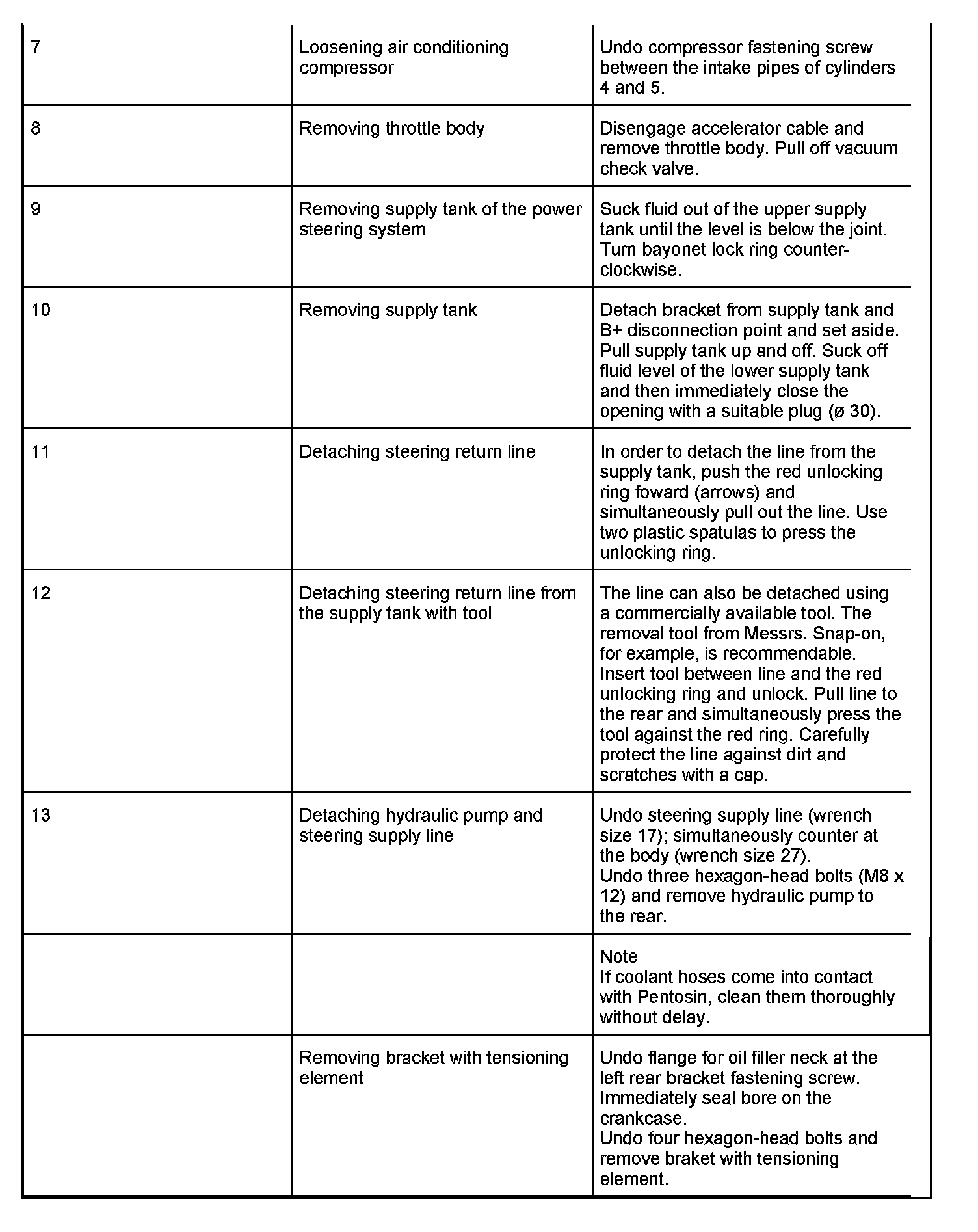

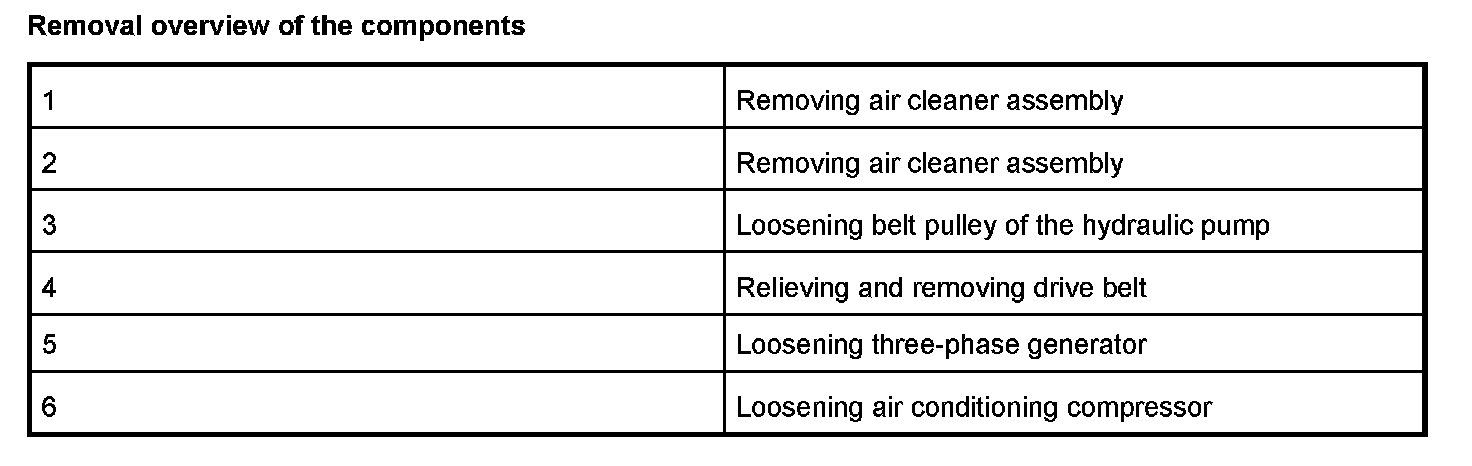

Removing belt tensioner

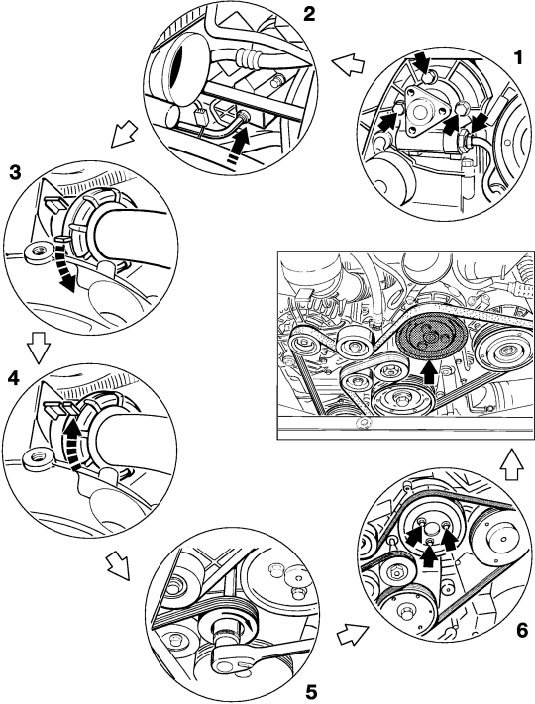

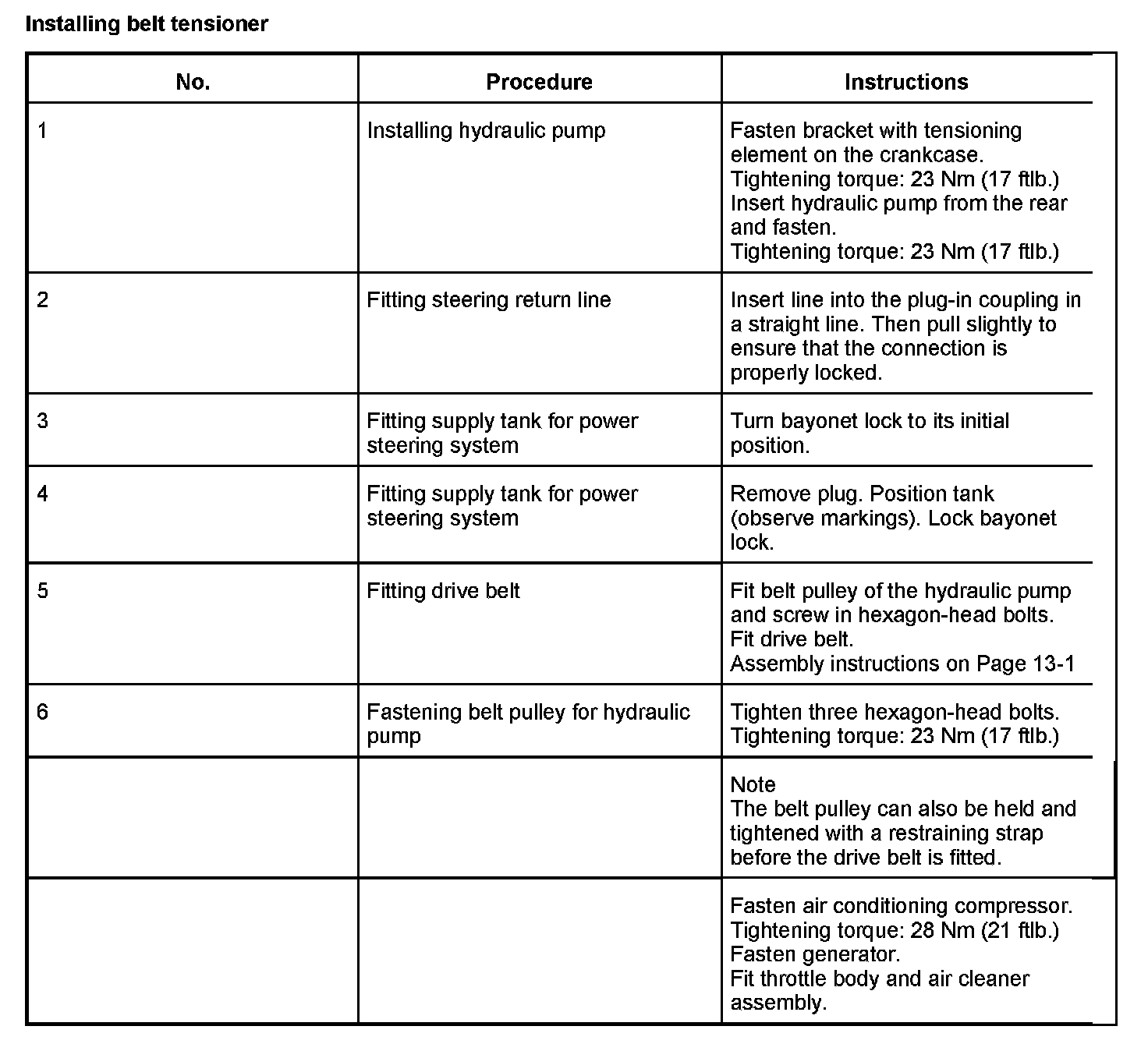

Installing belt tensioner
