Brake Pedal Assy: Adjustments

Adjusting the brake pushrod

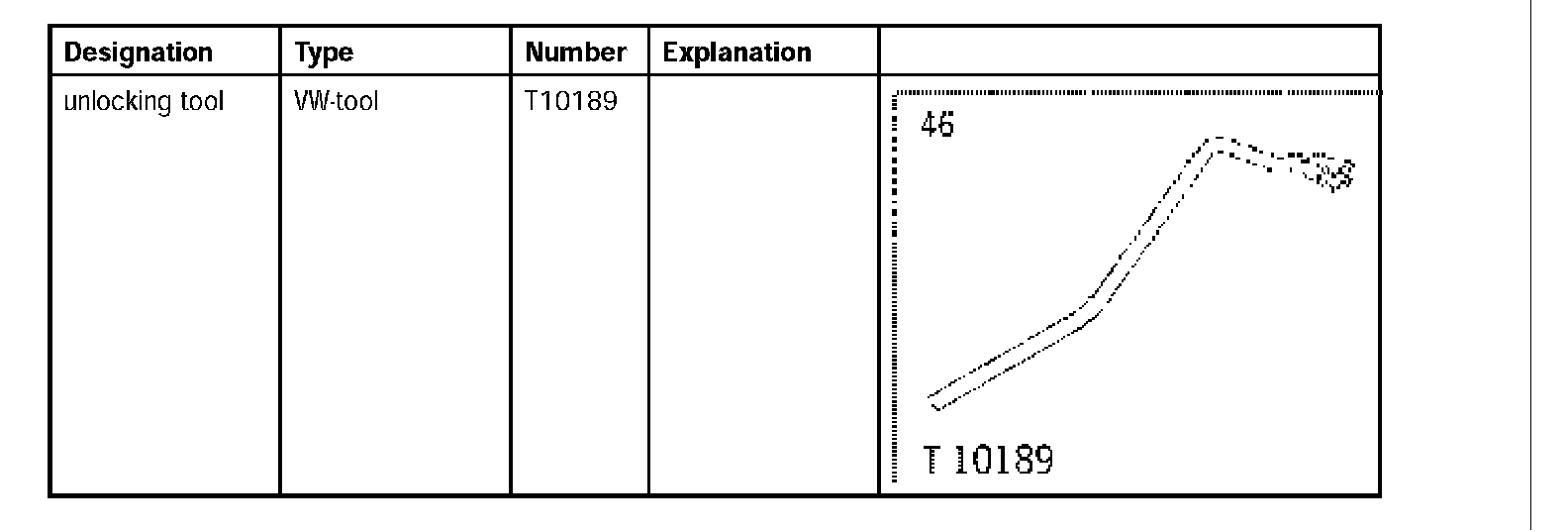

Tools





Adjusting the brake pushrod

Note:
^ The brake pushrod play is strictly specified.
^ The play cannot be adjusted.

The brake pushrod can be removed from the brake pedal with the unlocking tool T10189.
