Home >> Porsche >> 2003 >> Boxster S (986) F6-3.2L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Crankshaft >> Diagrams

Crankshaft: Diagrams

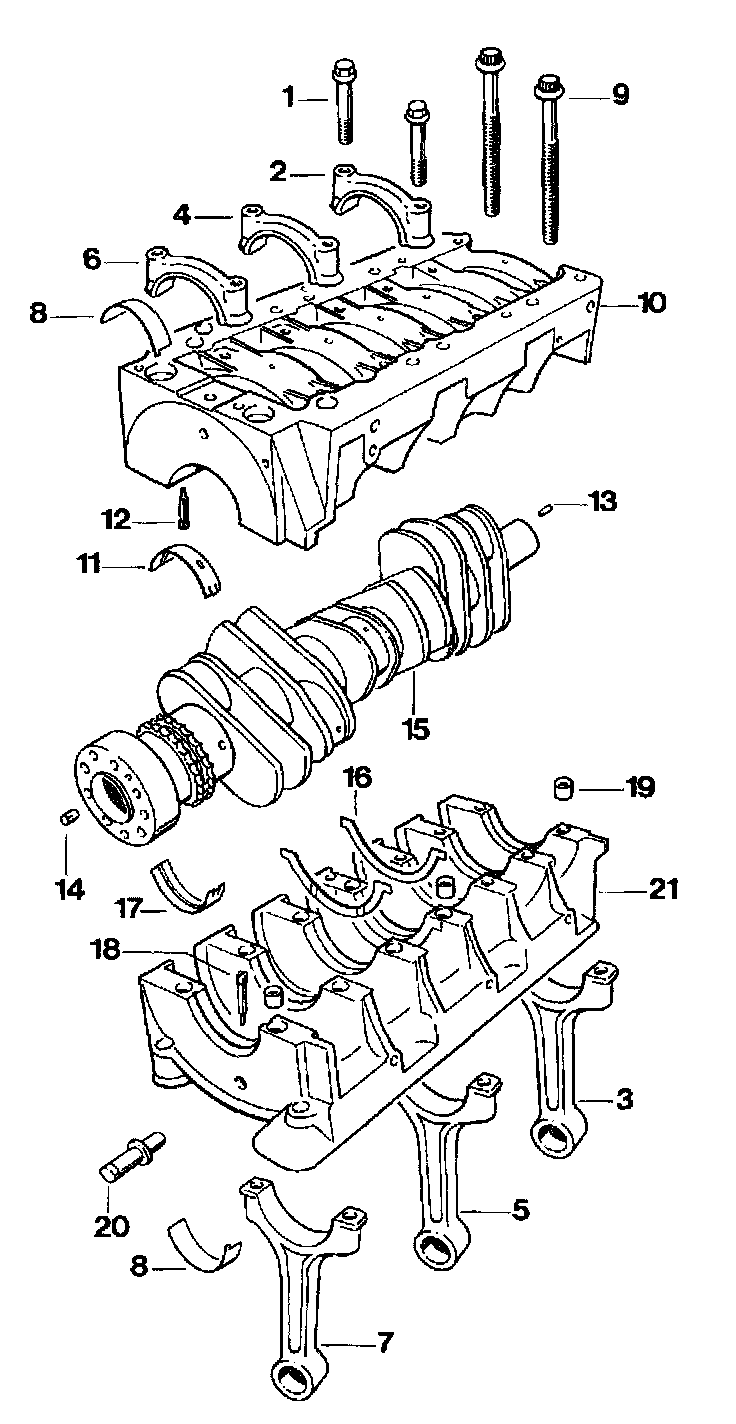

Component view

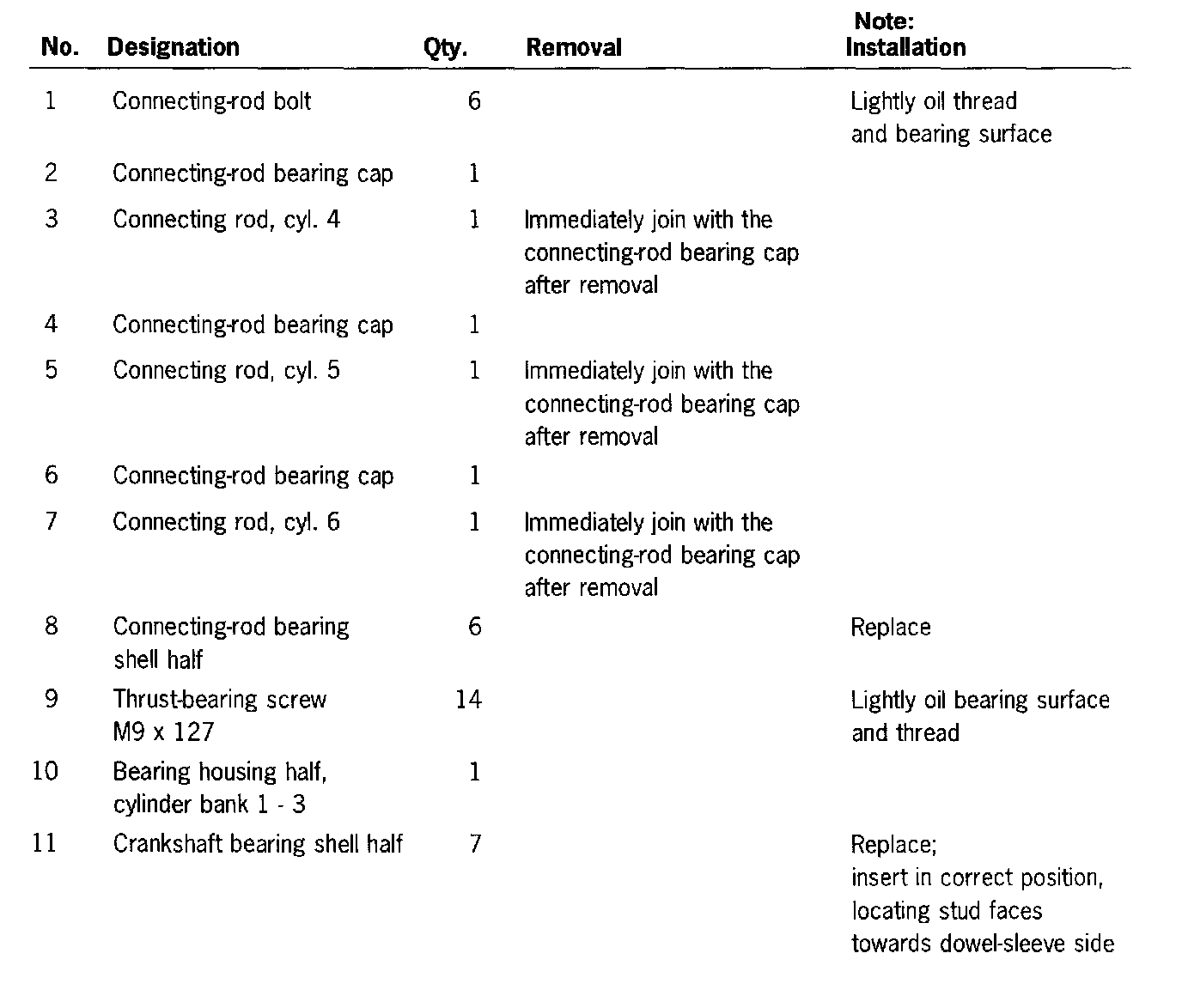

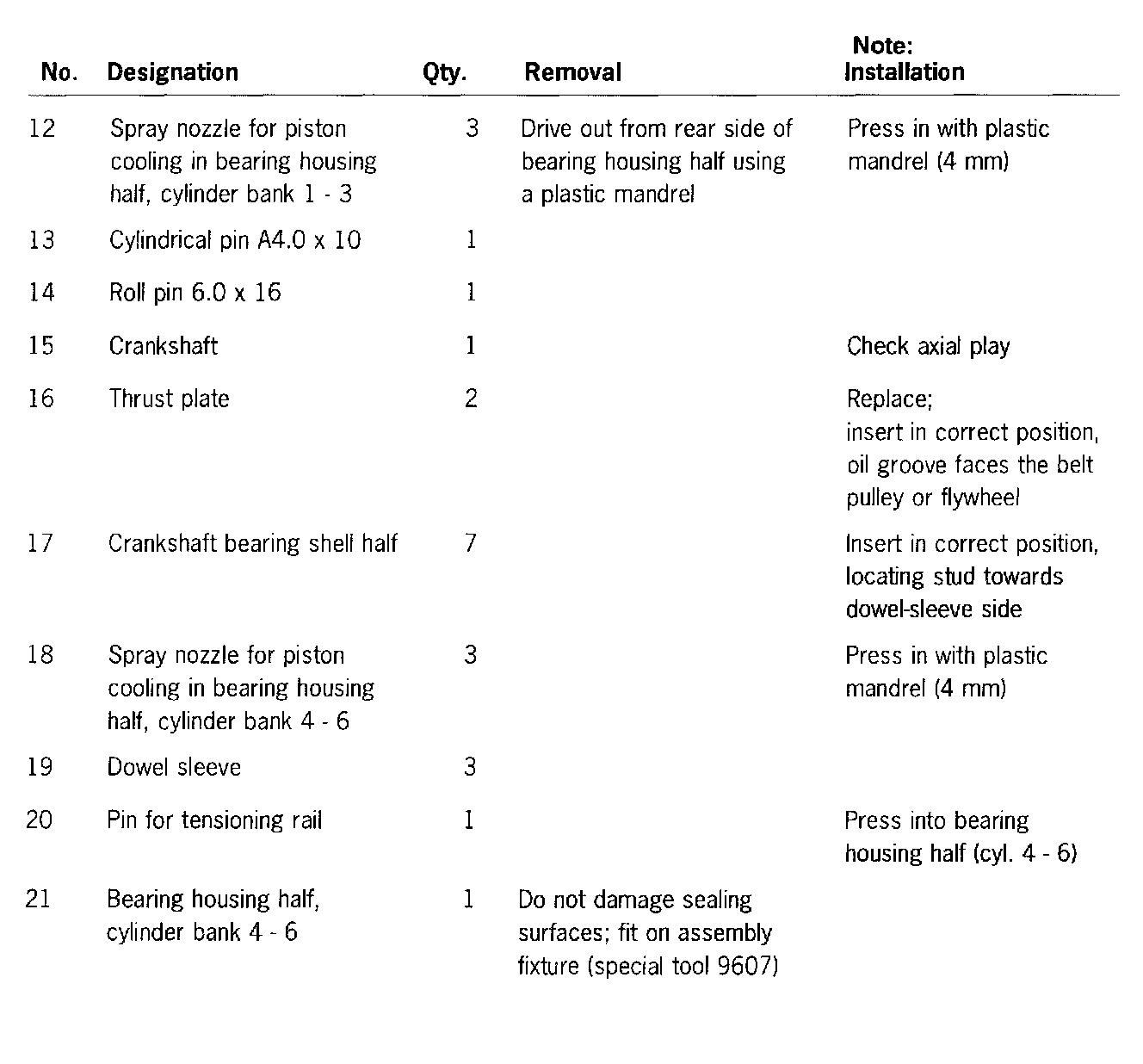

Designations and notes
