Speaker: Service and Repair

Removing And Installing Subwoofer







Removing Subwoofer

WARNING:
Material damage.
- The radio must be switched off before the subwoofer is unplugged.
- Remove ignition key.







1. Open convertible top approx. 50%.

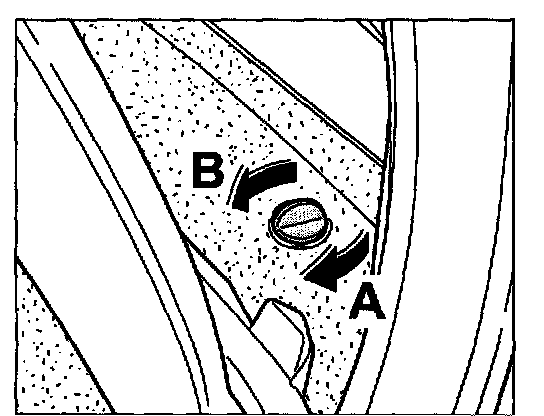

2. Open the plugs on the left and right by turning in the -B- direction.







3. Open convertible top approx. 75%.

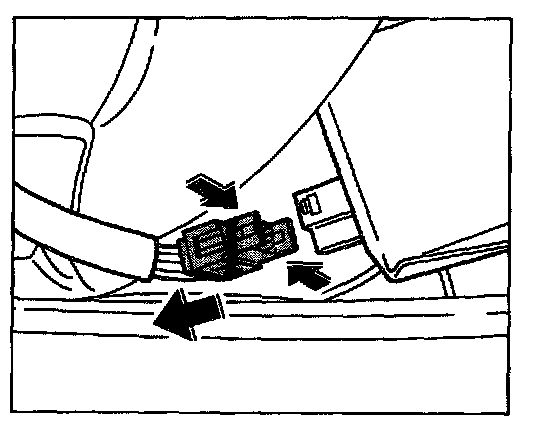

4. Unplug the electrical plug connection on the right side beneath the convertible top linkage. Press connectors -arrow- together and pull apart.







5. Detach tension cables from the tension bow.
6. Close the convertible top to approx. 80% and bring convertible top to service position.

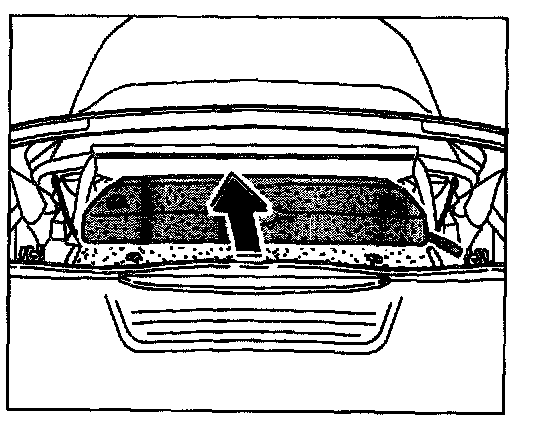

7. Pull the subwoofer out to the rear.

Installing Subwoofer
- Convertible top in service position.







1. Position the subwoofer from behind on the engine compartment lid.
2. Engage the tension cables from the tension bow and engage the cloth covering from the convertible top.







3. Open convertible top to approx. 50%.

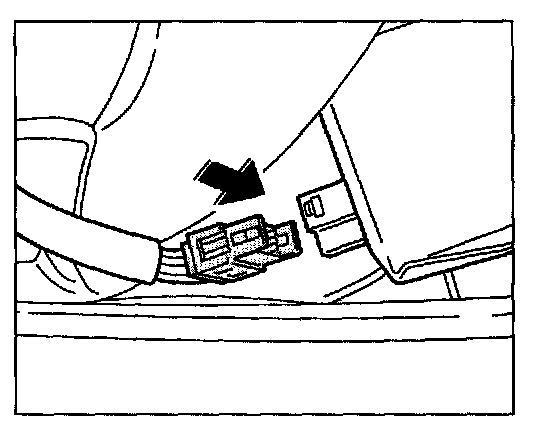

4. Insert the plug connection from the subwoofer until the connector audibly engages.







5. Screw down the plugs on the left and right -A-.
6. Check subwoofer for tightness and function. Close convertible top.
