Speaker: Locations



PCM2/CDR23

Component arrangement - gateway

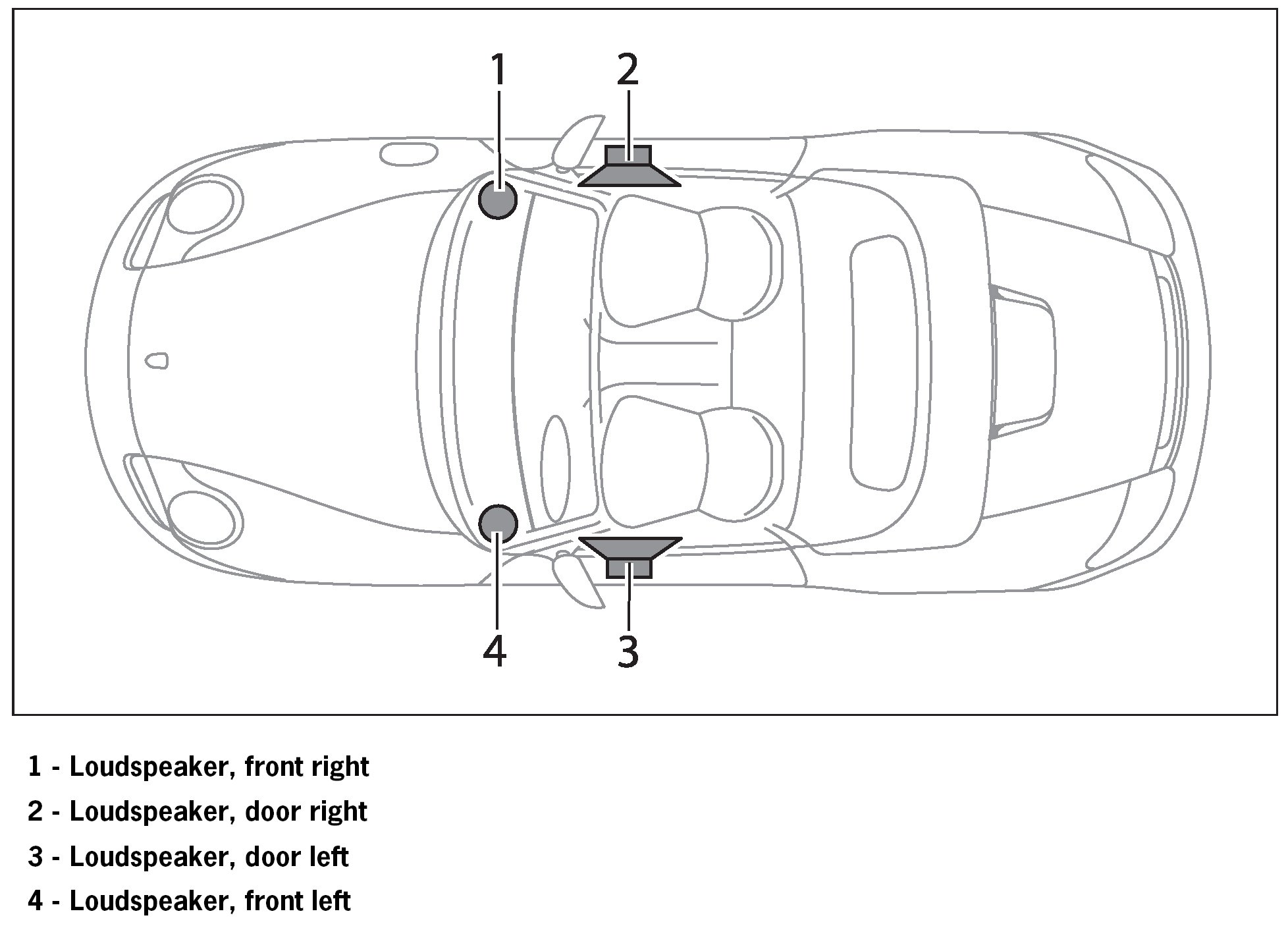

Basic loudspeaker system

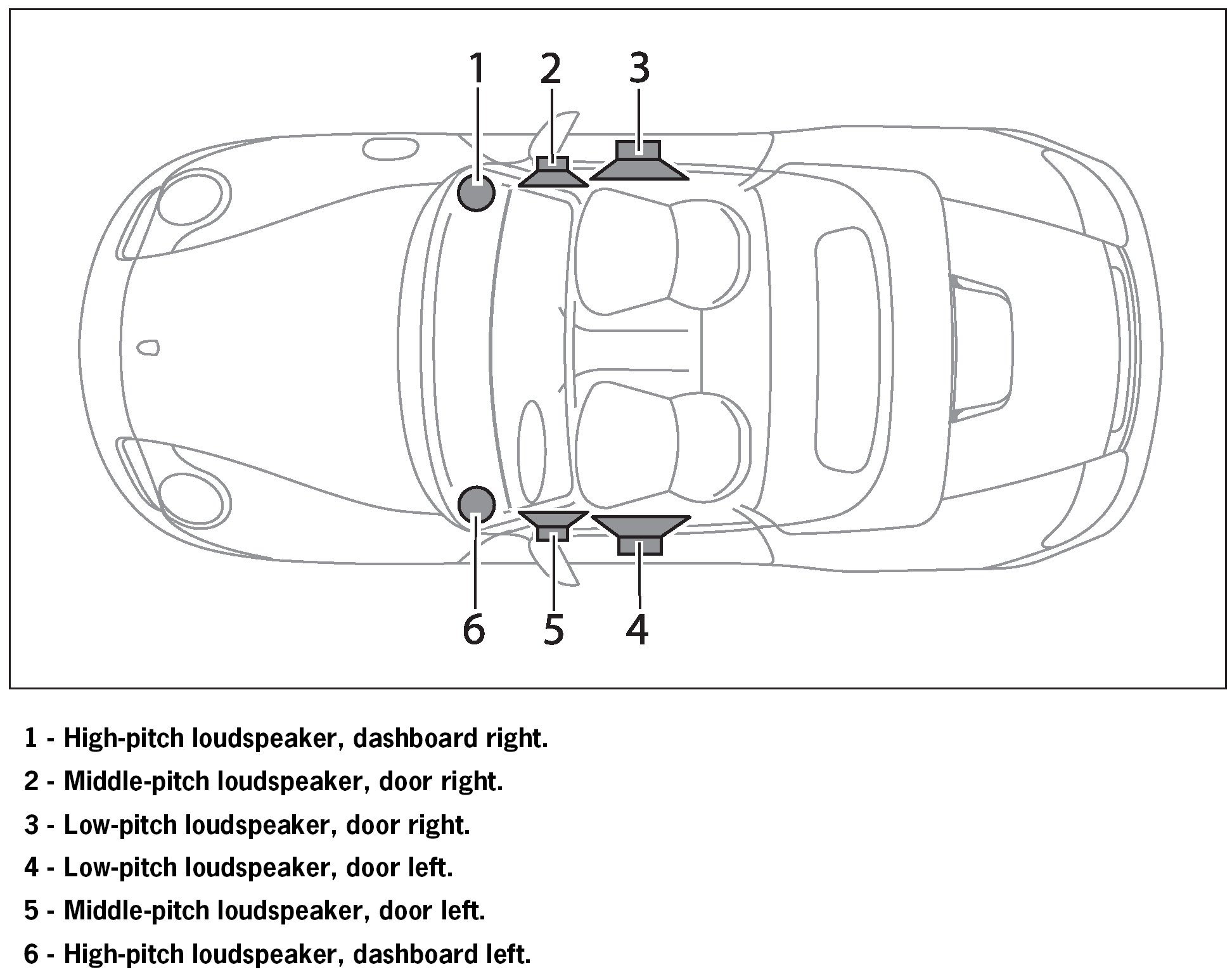

Loudspeaker sound package

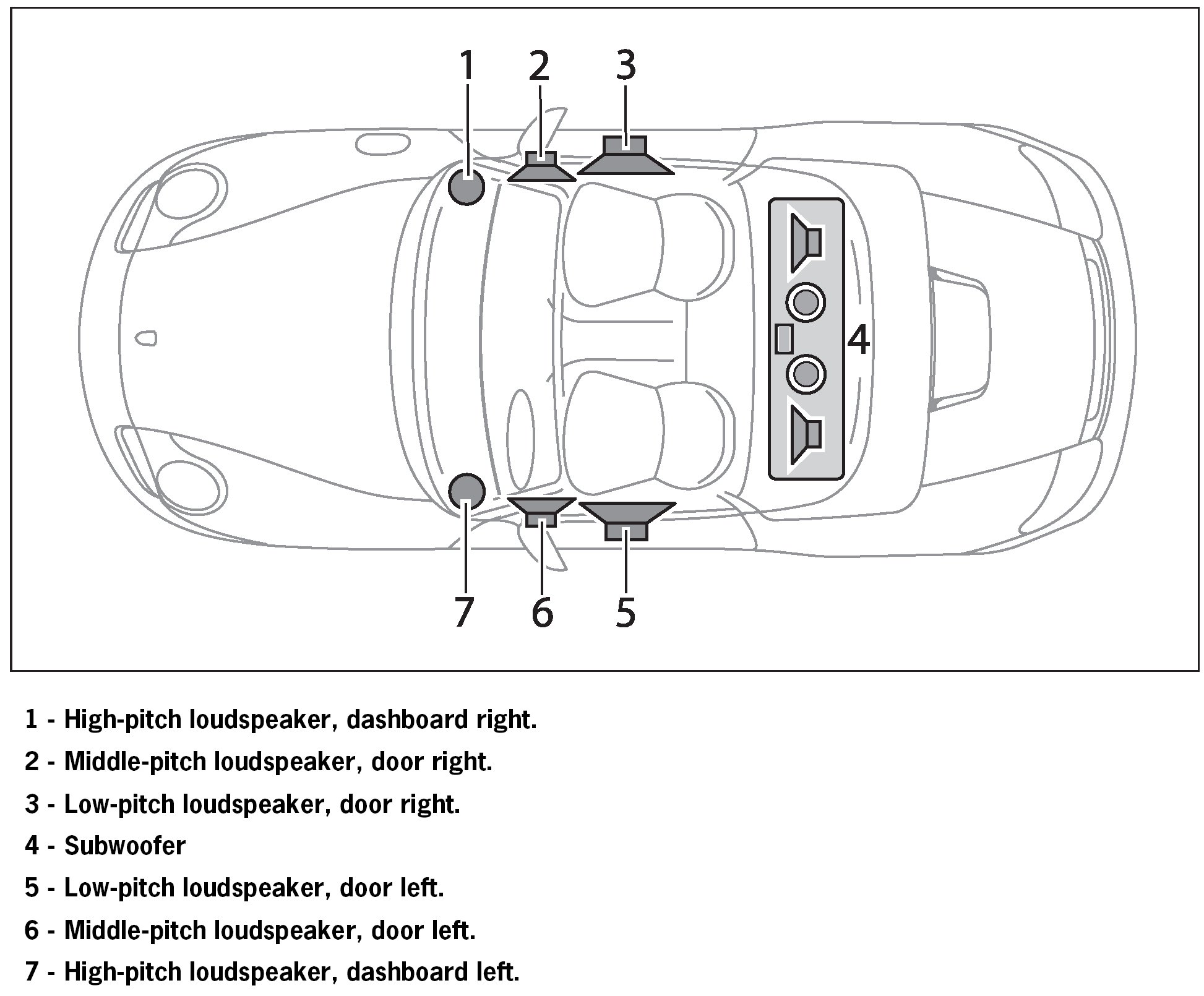

High-End loudspeaker
