Home >> Porsche >> 2003 >> 911 Turbo AWD (996) F6-3.6L Turbo >> Repair and Diagnosis >> Diagrams >> Fiber Optic Diagrams >> Fiber Optic Cables LHD

Fiber Optic Cables LHD

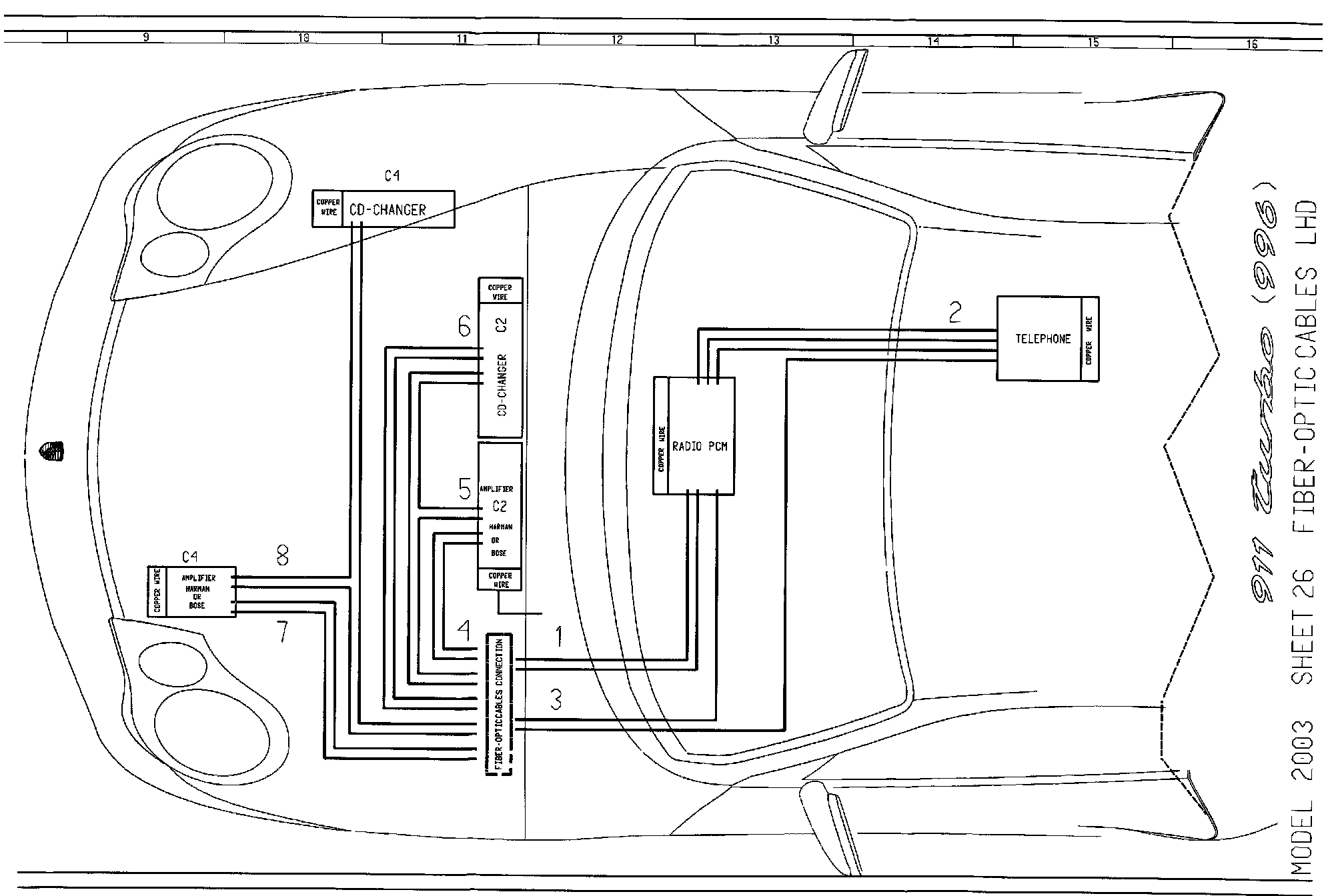

Part 1:

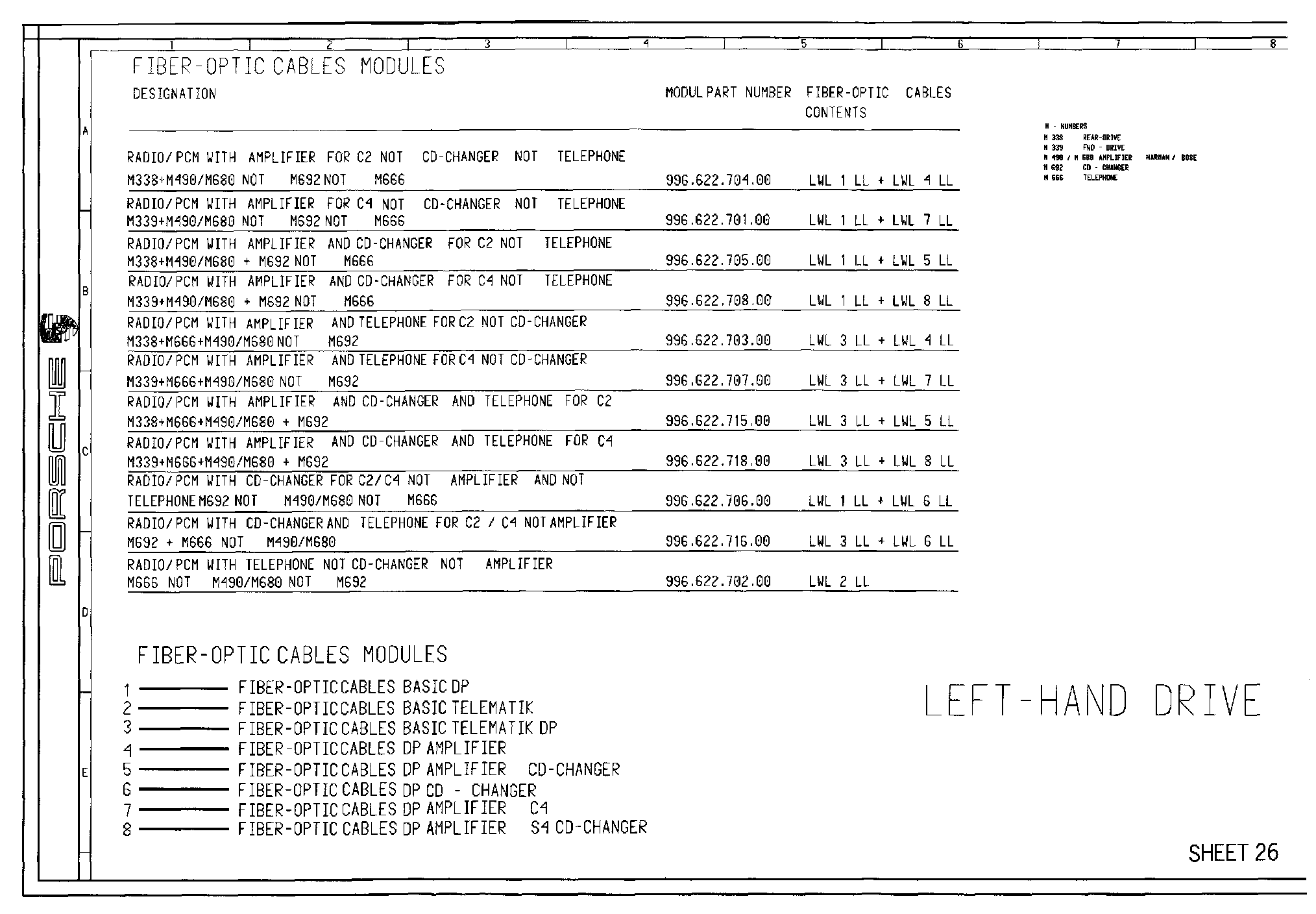

Part 2:
