Wiper Blade: Service and Repair

NOTE:
- The wiper blades for the driver's and passenger's side are different!
- The wiper blade on the driver's side is straight!
- On the passenger's side it is curved -A- !
- This arrangement applies to left-hand drive and right-hand drive vehicles!

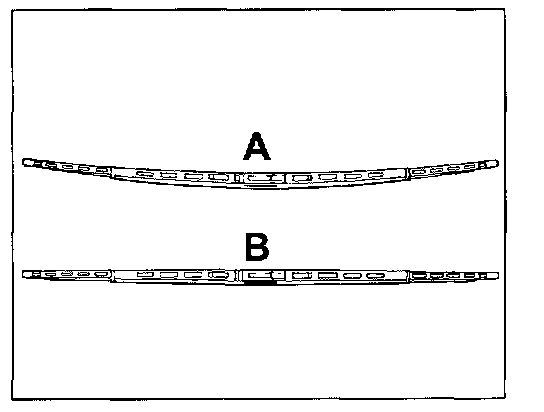

A - Passenger's side
B - Driver's side


NOTE:
- The spoiler edge on the wiper blade on the driver's side must face downwards!

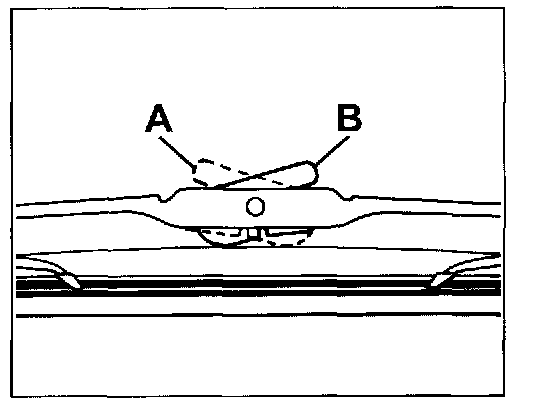

The clip installation position must be observed when installing the wiper blades for left-hand drive and right-hand drive vehicles!

A - Clip for left-hand drive vehicles
B - Clip for right-hand drive vehicles
