Passenger's Airbag Unit

Removing

WARNING: Danger of injury and damage to property as a result of incorrect handling of airbag units.

Please observe the following points:
- The airbag unit must always be deposited so that the airbag opening faces upwards.
- If removed for an extended period, the airbag unit must be kept in a locked place.
- Observe the safety regulations.

1. Remove ignition key.
2. Disconnect the battery and cover terminal or battery.
3. Remove the air guide at the bottom right.

Removing Passenger's Airbag Unit:

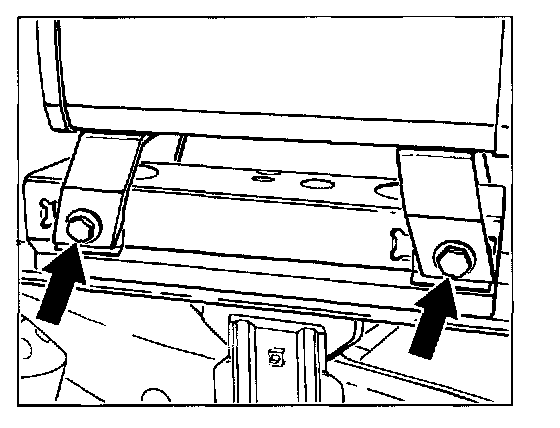

4. Undo the airbag unit from below and remove it rearward to the passenger's seat.
5. Disconnect the electrical plug connection.

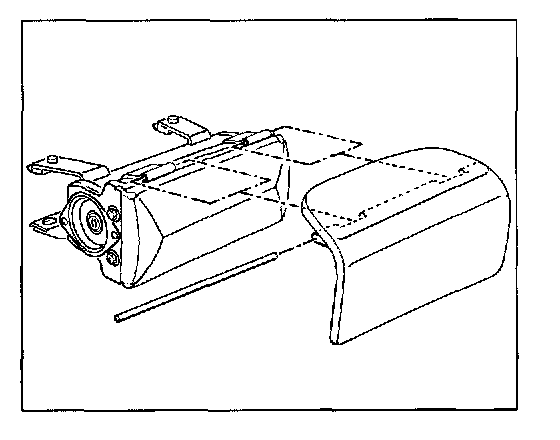

6. Pull out the hinge pin on the airbag unit and remove the panel.

Installing

Tightening torque:
- M8 x 95 fastening screws (2 screws) 20 Nm (15 ft. lbs.)
