Driver's Airbag Unit

Removing

Removing Driver's Airbag Unit:

1. Remove ignition key.
2. Disconnect the battery and cover terminal or battery.

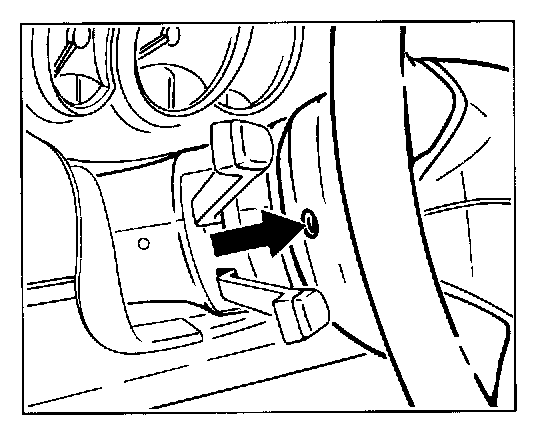

3. Undo the -fastening screws- (2 ea.) with a socket wrench insert for inside Torx T 30 (at least 50 mm long).

NOTE:
- The self-locking screws must be replaced every time they are undone.
- To do this, undo the retaining bracket of the airbag unit (3 screws) in the steering wheel.

4. Disconnect the electrical plug connection.

WARNING: Danger of injury and damage to properly as a result of incorrect handling of airbag units.

Please observe the following points:
- The airbag unit must always be deposited so that the airbag opening faces upwards.
- If removed for an extended period, the airbag unit must be kept in a locked place.
- Observe the safely regulations.

Installing

Tightening torque:

1. M6 x 16 fastening screws (2 screws) 10 Nm (7.5 ft. lbs.)
2. M5 x 20 retaining bracket (3 screws) 5 Nm (3.5 ft. lbs.)
