Home >> Porsche >> 2003 >> 911 GT2 (996) F6-3.6L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> MFI Engine Area

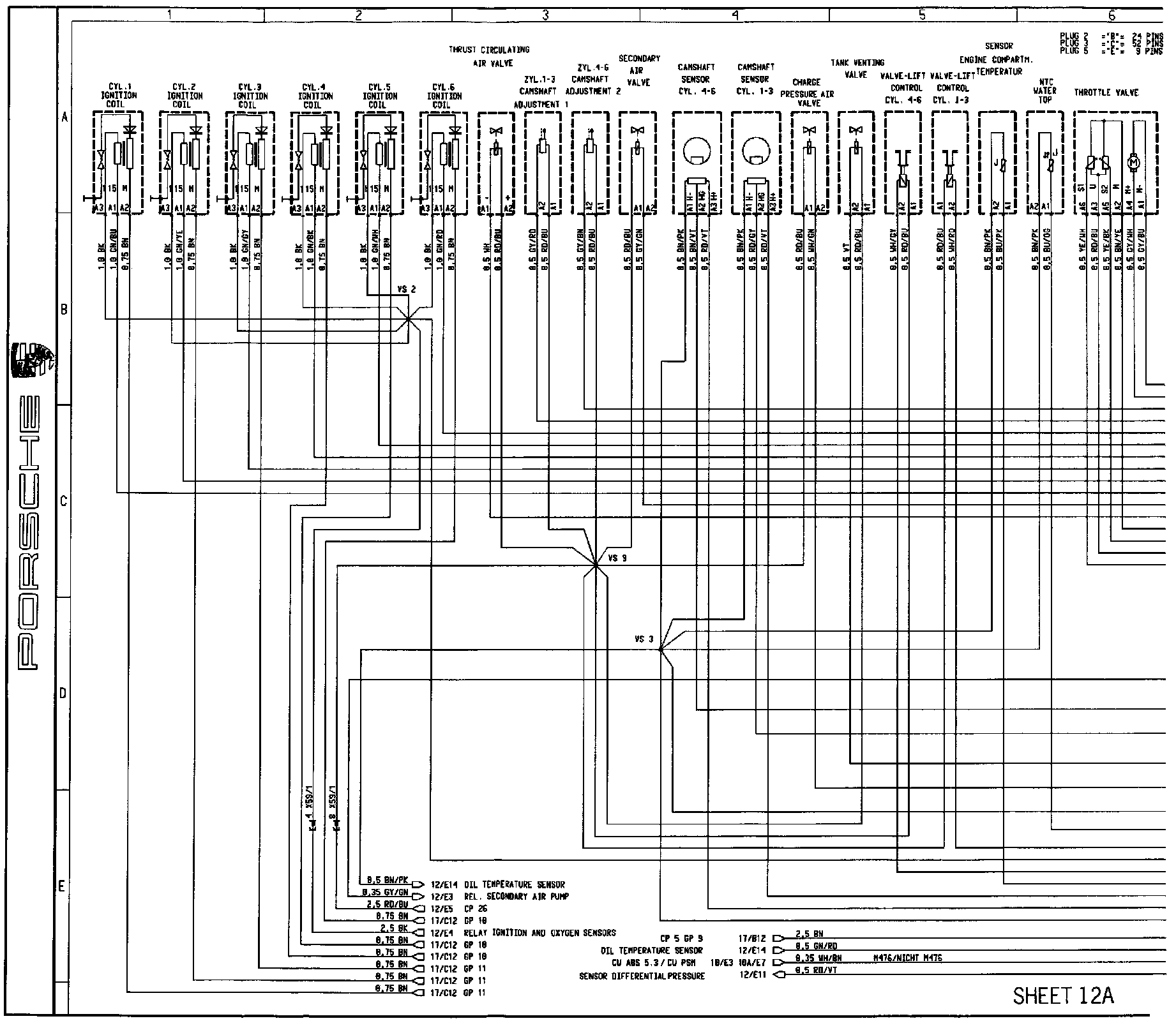

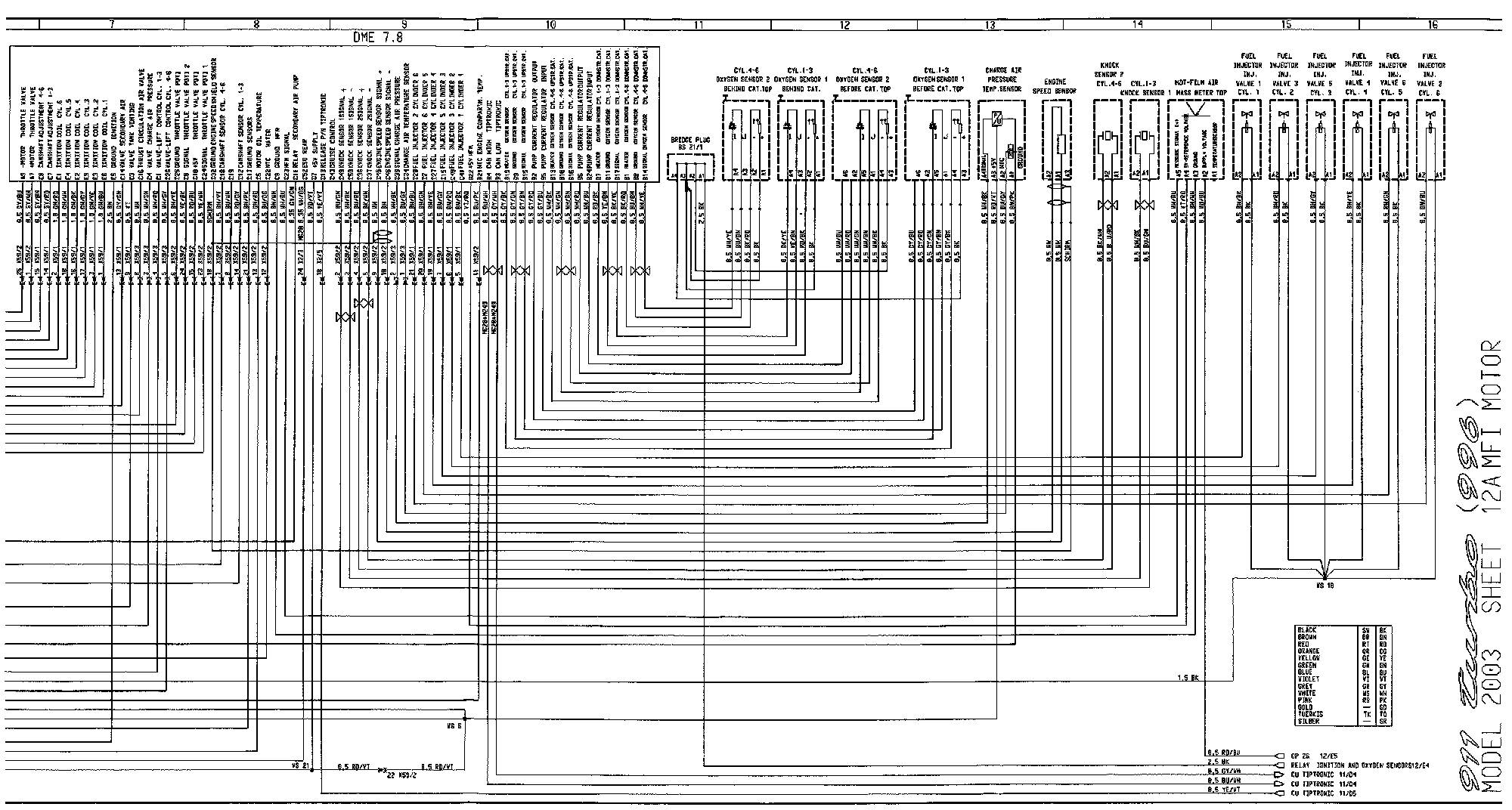

MFI Engine Area



Part 1:




Part 2:
