Differential Mount: Service and Repair

Removing and installing support for final drive

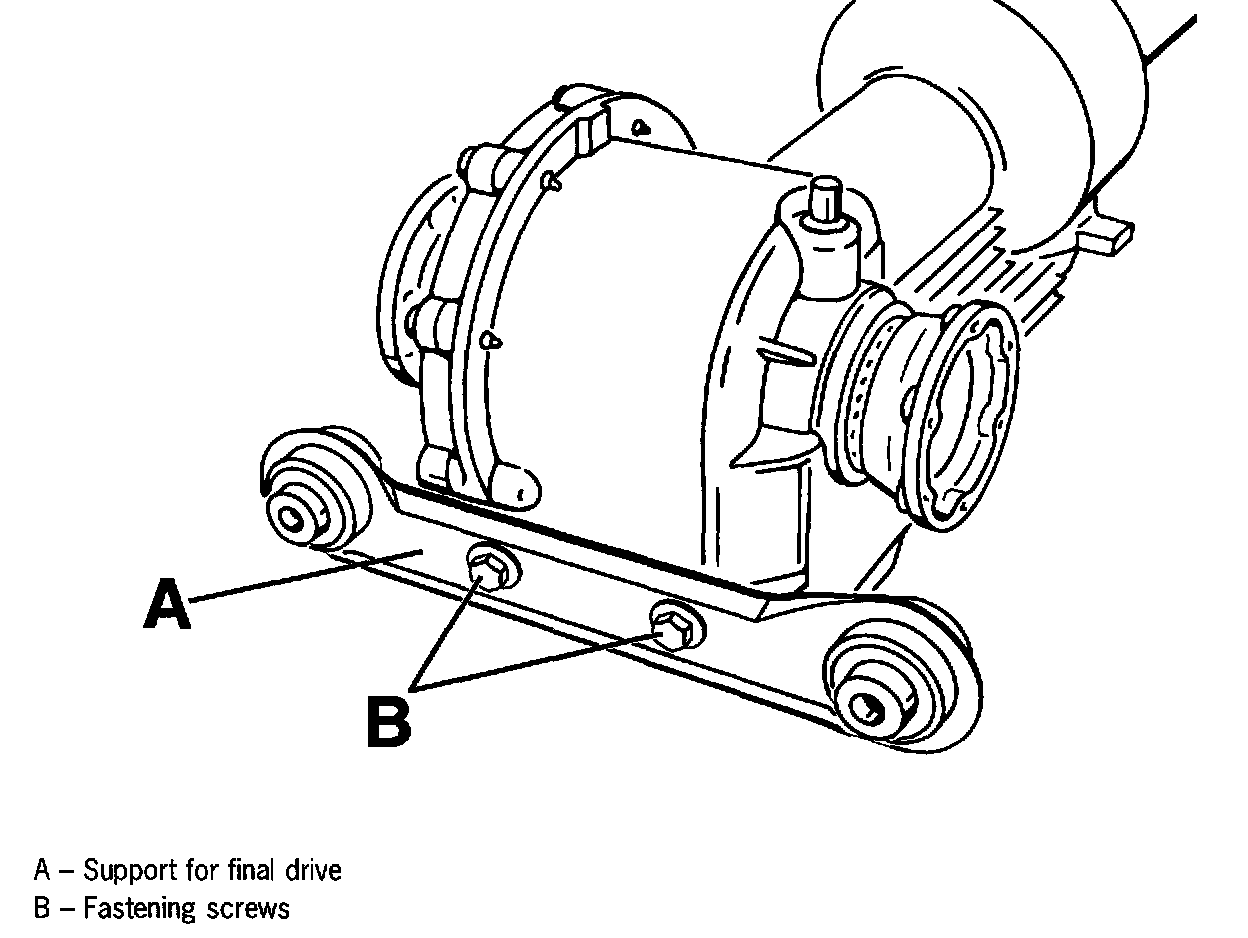

Components

Removal

1. Remove final drive.
2. Unscrew fastening screws and remove support.

Installation

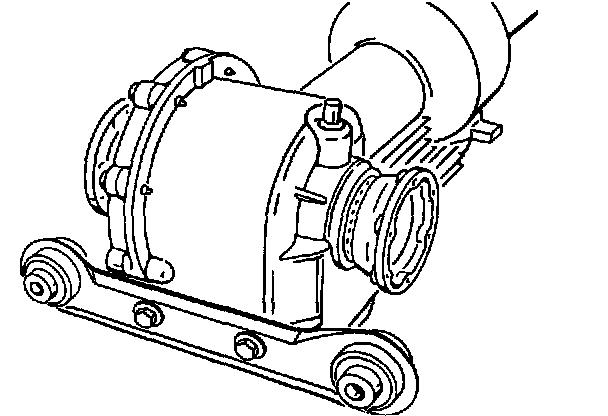

1. Fit support in the correct position (angled side facing upwards).





Note: At the beginning of the series, supports with tabs were installed. These supports must be fitted with the tabs facing downwards.

2. Tighten fastening screws in two stages.
1st stage: Screw both screws to 5 Nm (3.7 ft. lbs.).
2nd stage: Tighten both screws to 65 Nm (48 ft. lbs.).
3. Install final drive.
