Fuel Filler Neck: Service and Repair

Removing and Installing Filler Neck

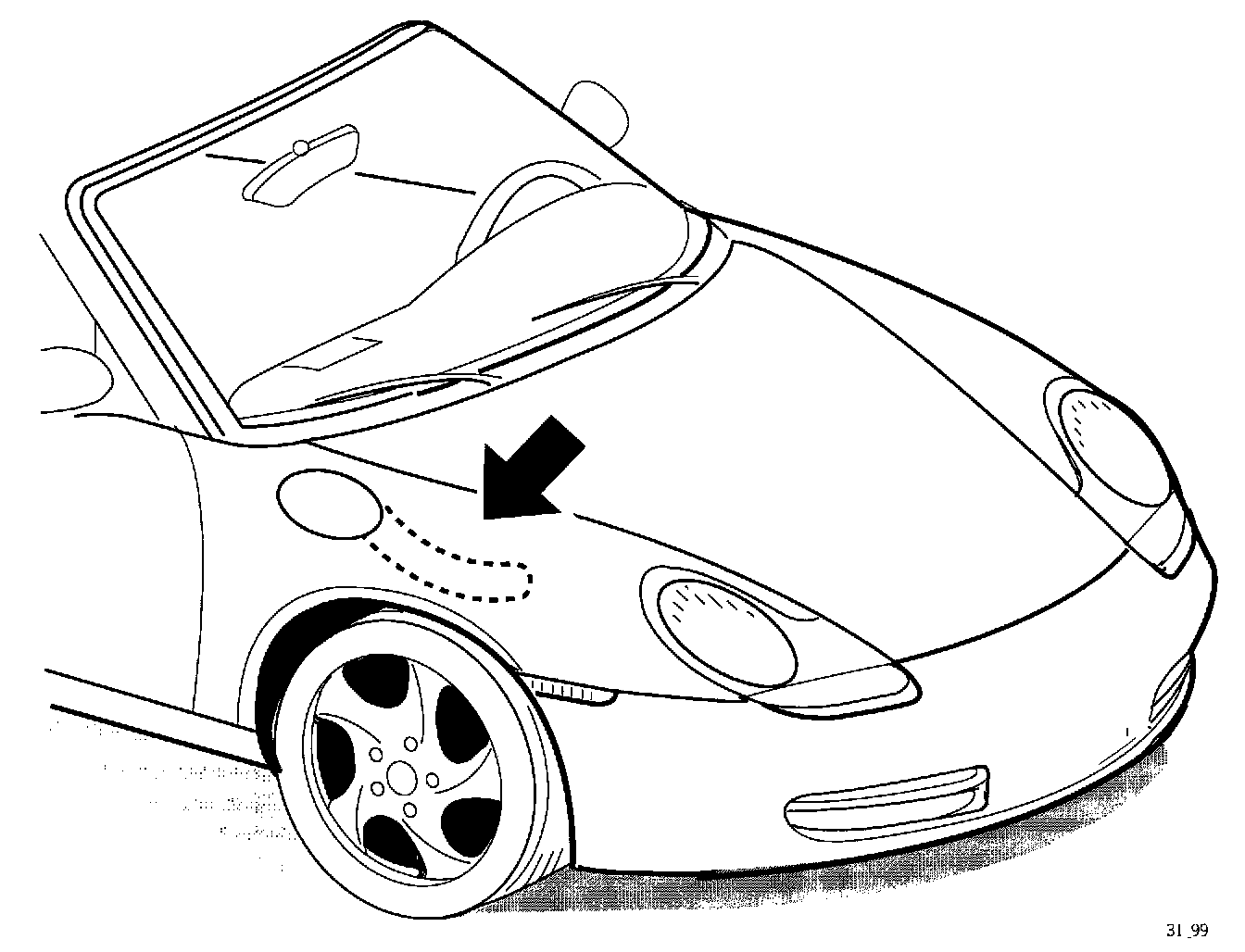

Location

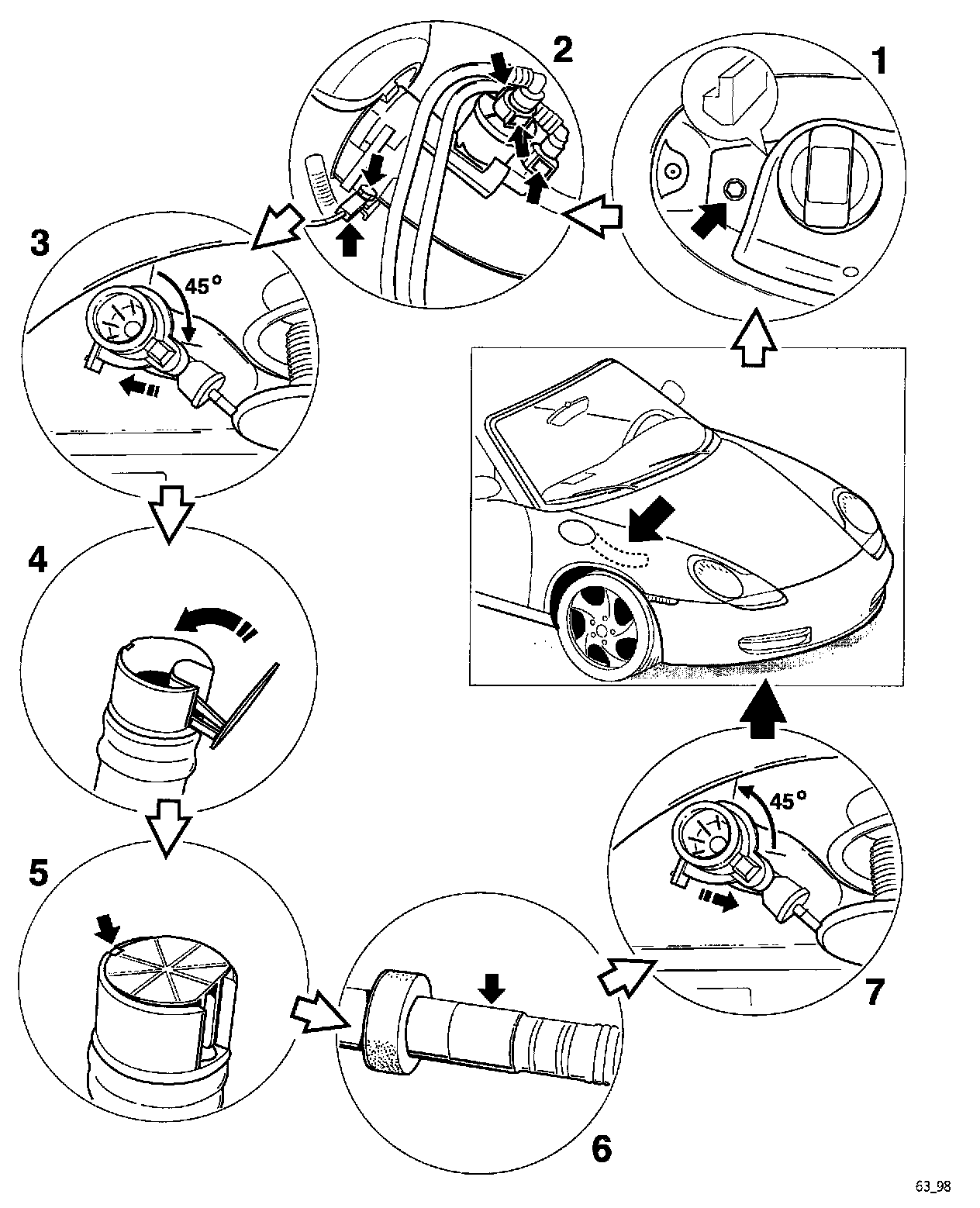

Component view and sequence

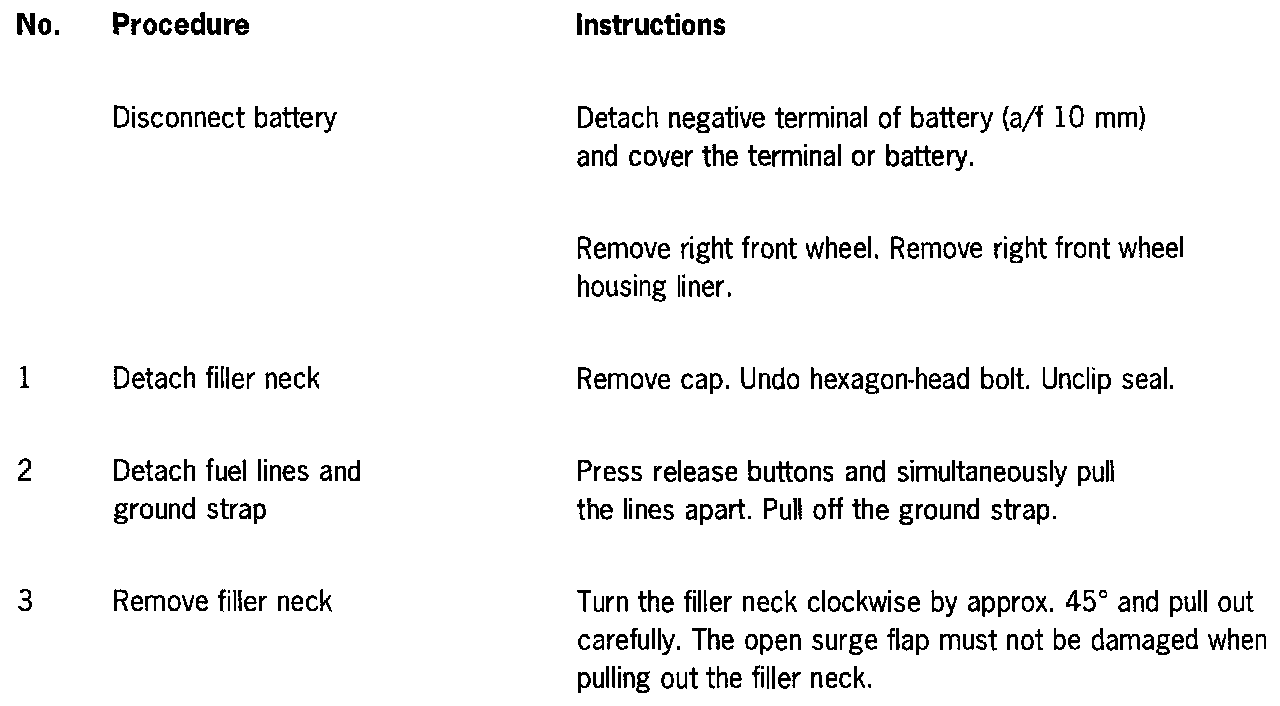

Removing filler neck

WARNING: Danger of fire and injury!

- Observe general safety regulations on the fuel system

- Wear protective gloves.




Procedures and instructions

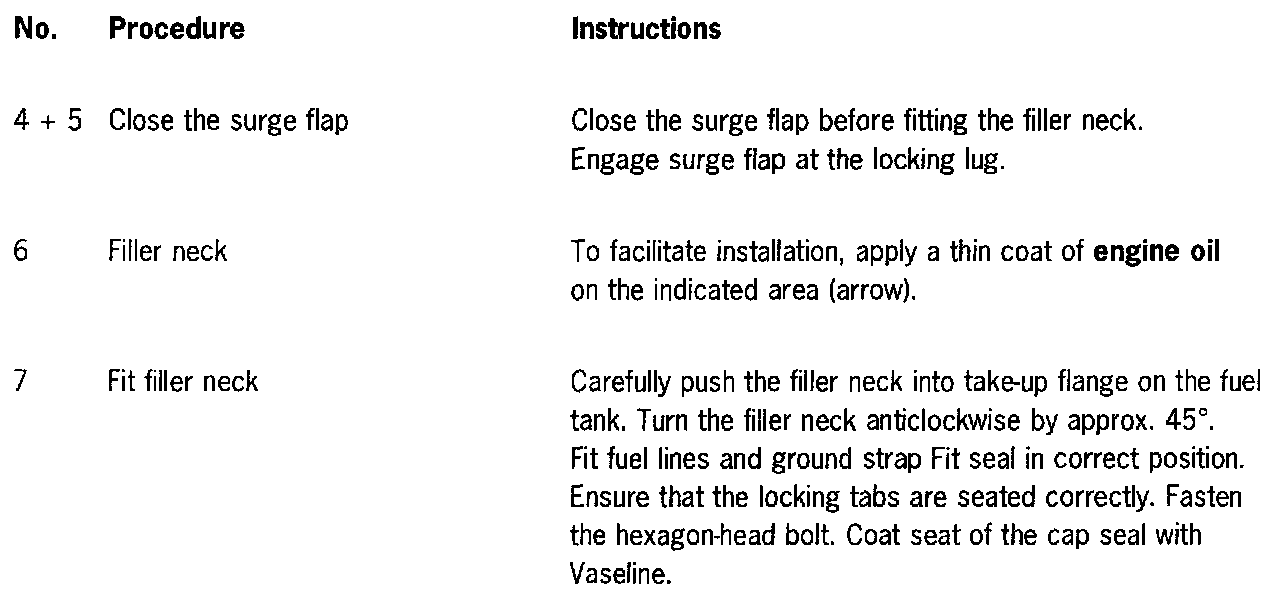

Installing filler neck




Procedures and instructions
