911 Carrera 4S (996) F6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
General Module
>>
PCM2 Gateway
PCM2 Gateway

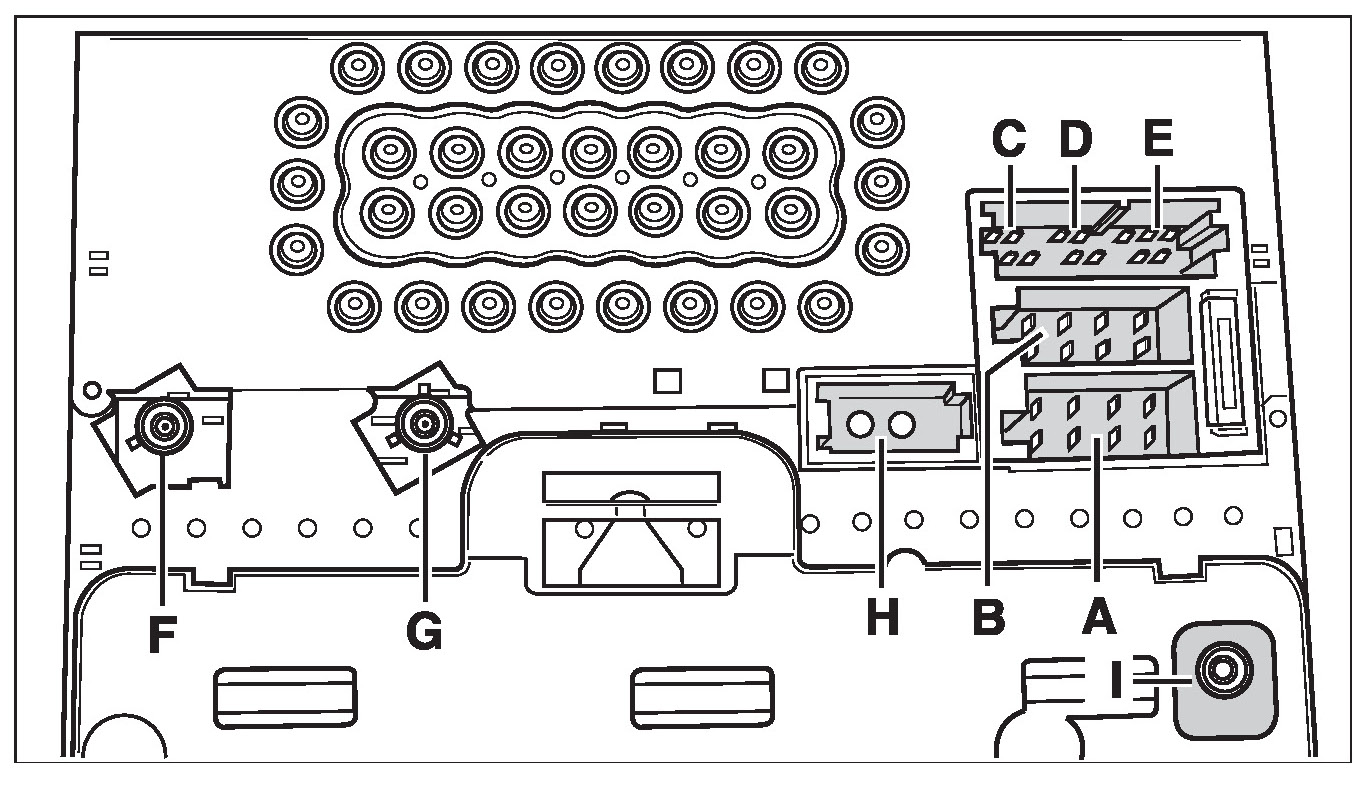

PCM2 gateway connector assignment

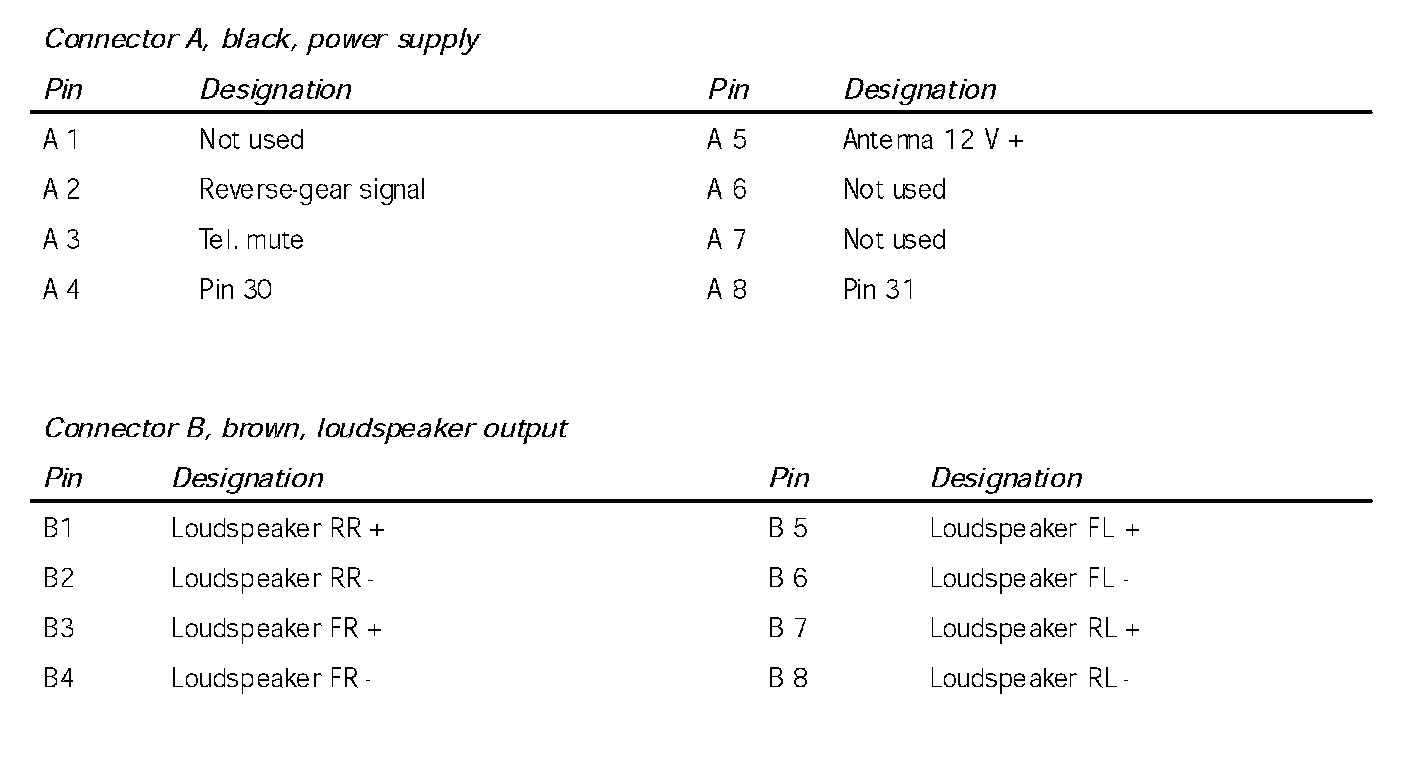

Connector assignment
