Porsche
>>
2003
>>
911 Carrera 4S (996) F6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
System Diagram
System Diagram

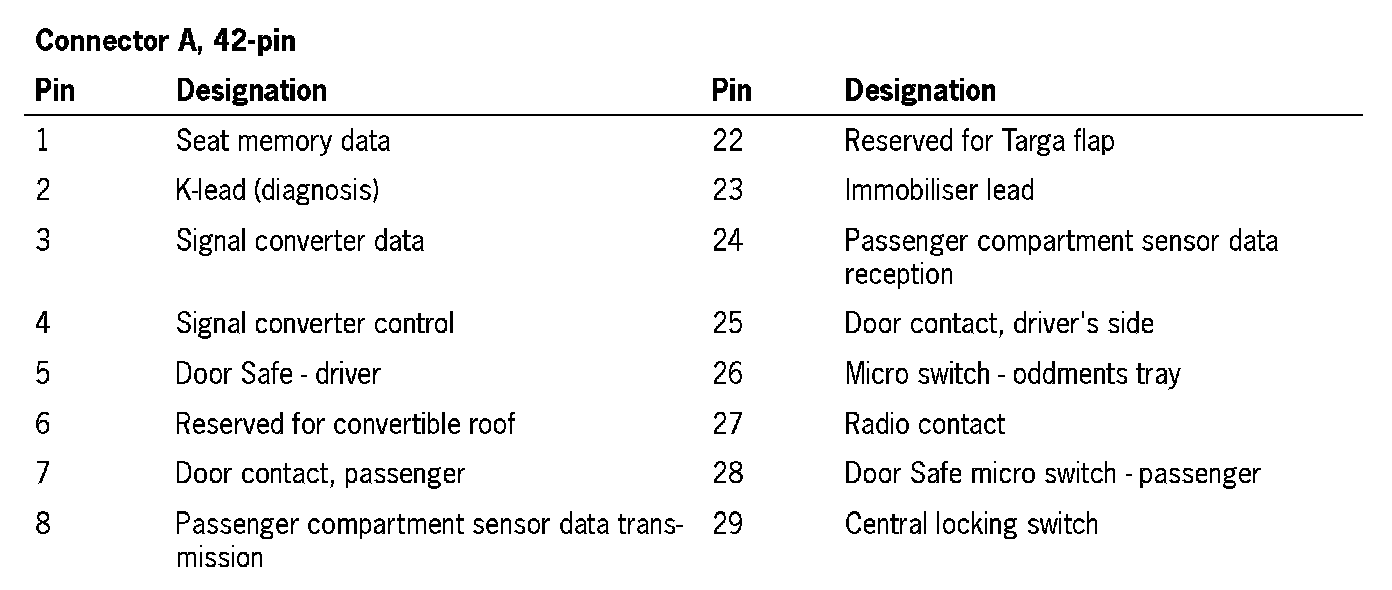

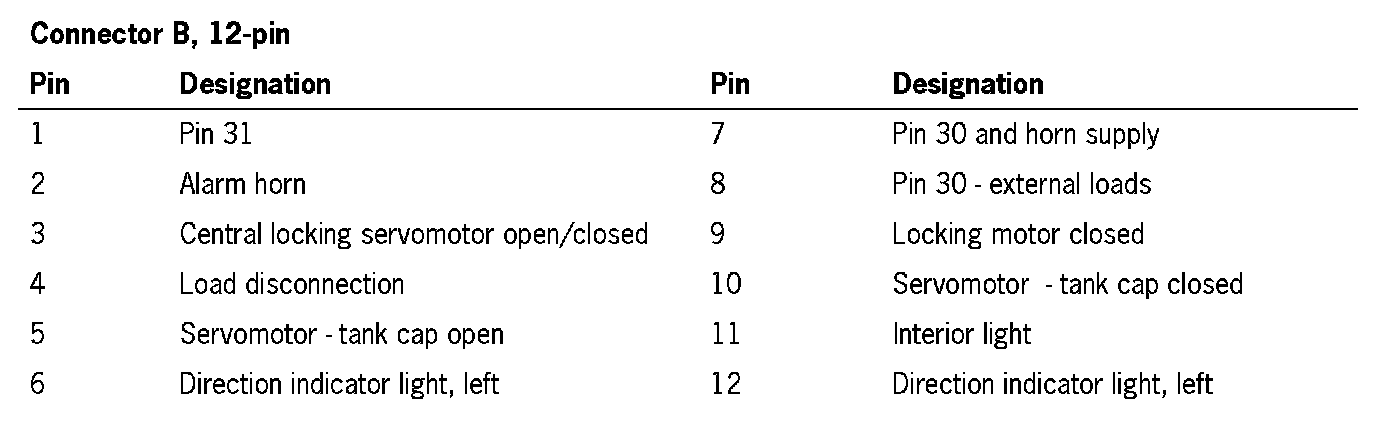

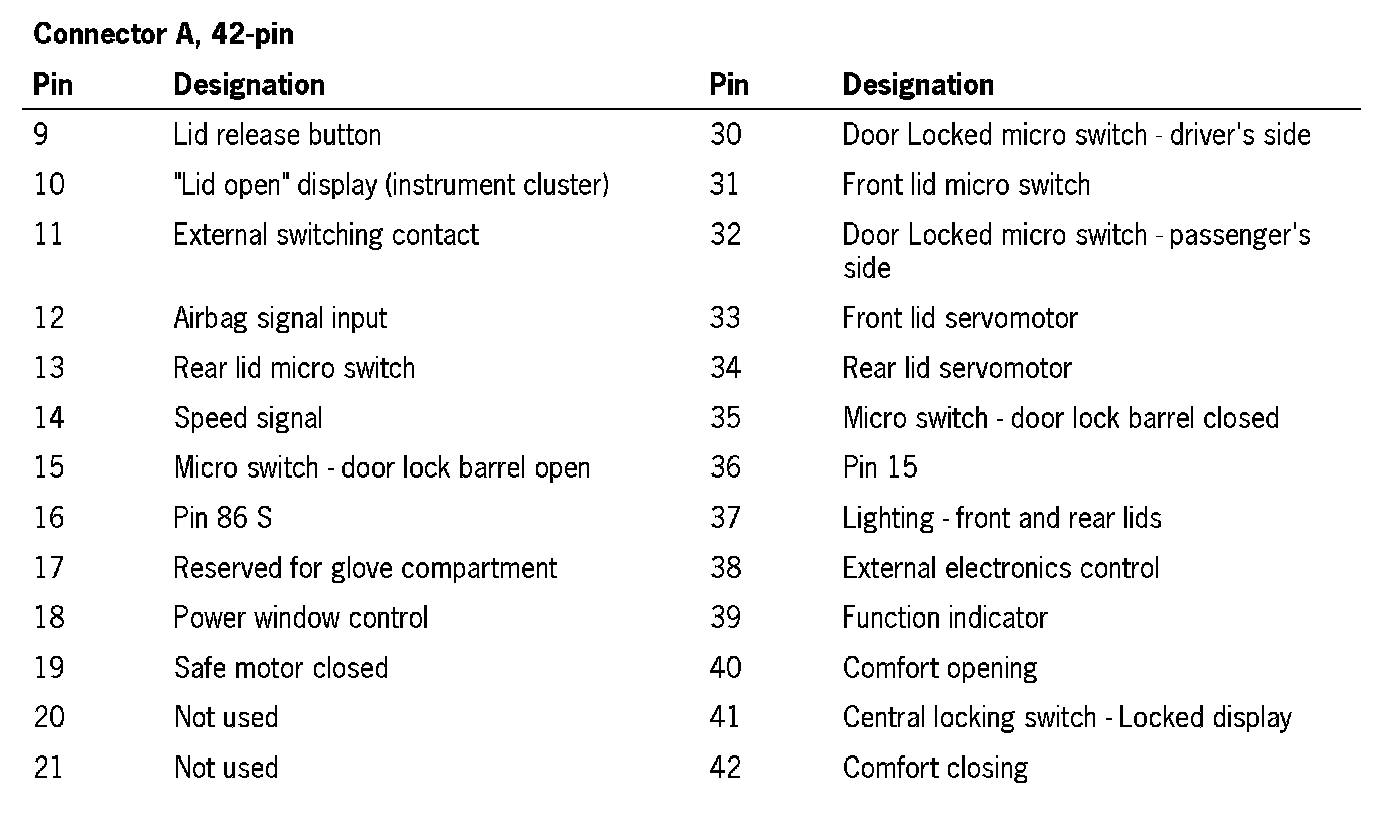

Connector assignment

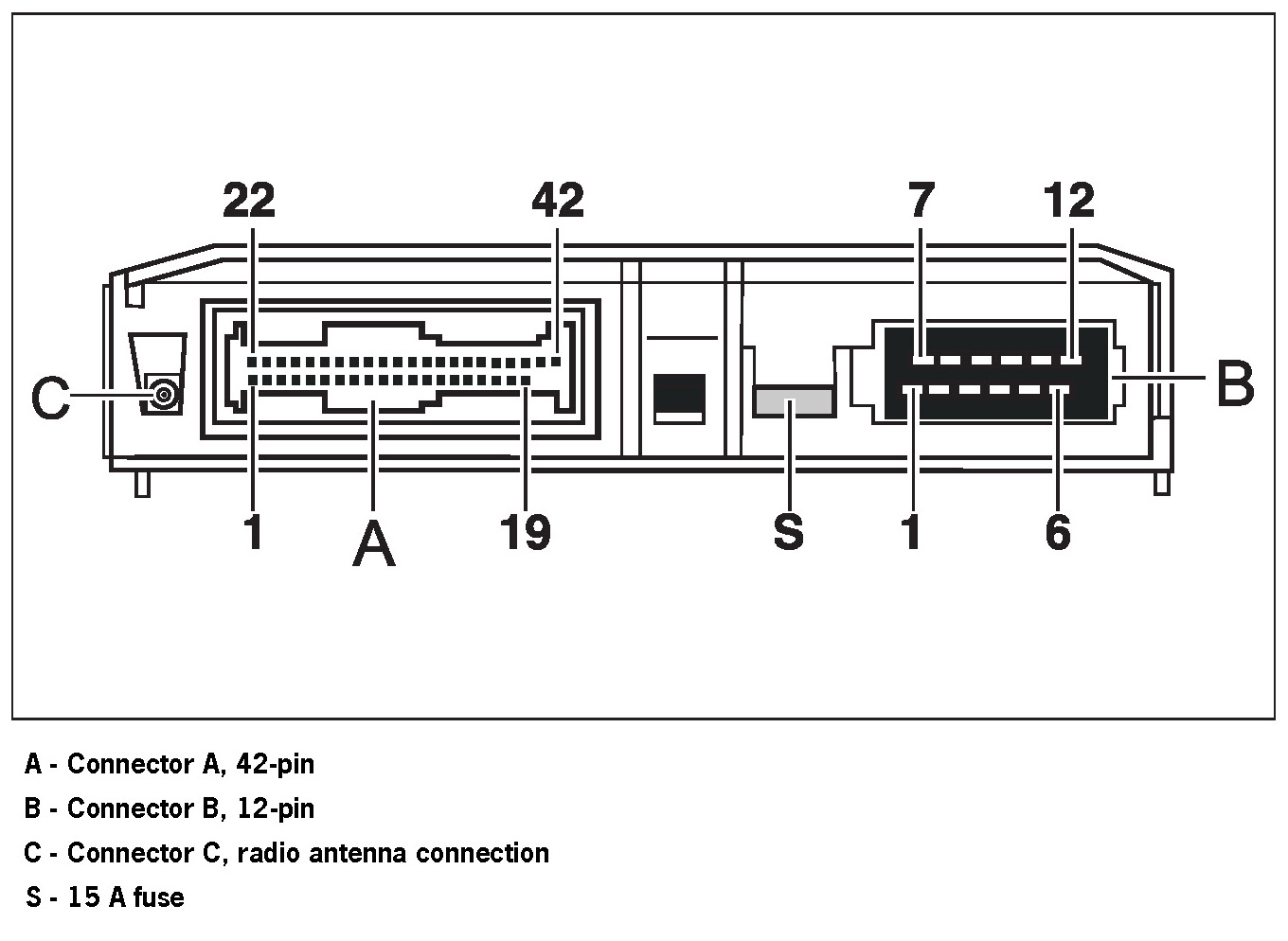

Connector assignment for alarm system control module
