911 Carrera 4S (996) F6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
>>
System Diagram
>>
Airbag System B04
Airbag System B04

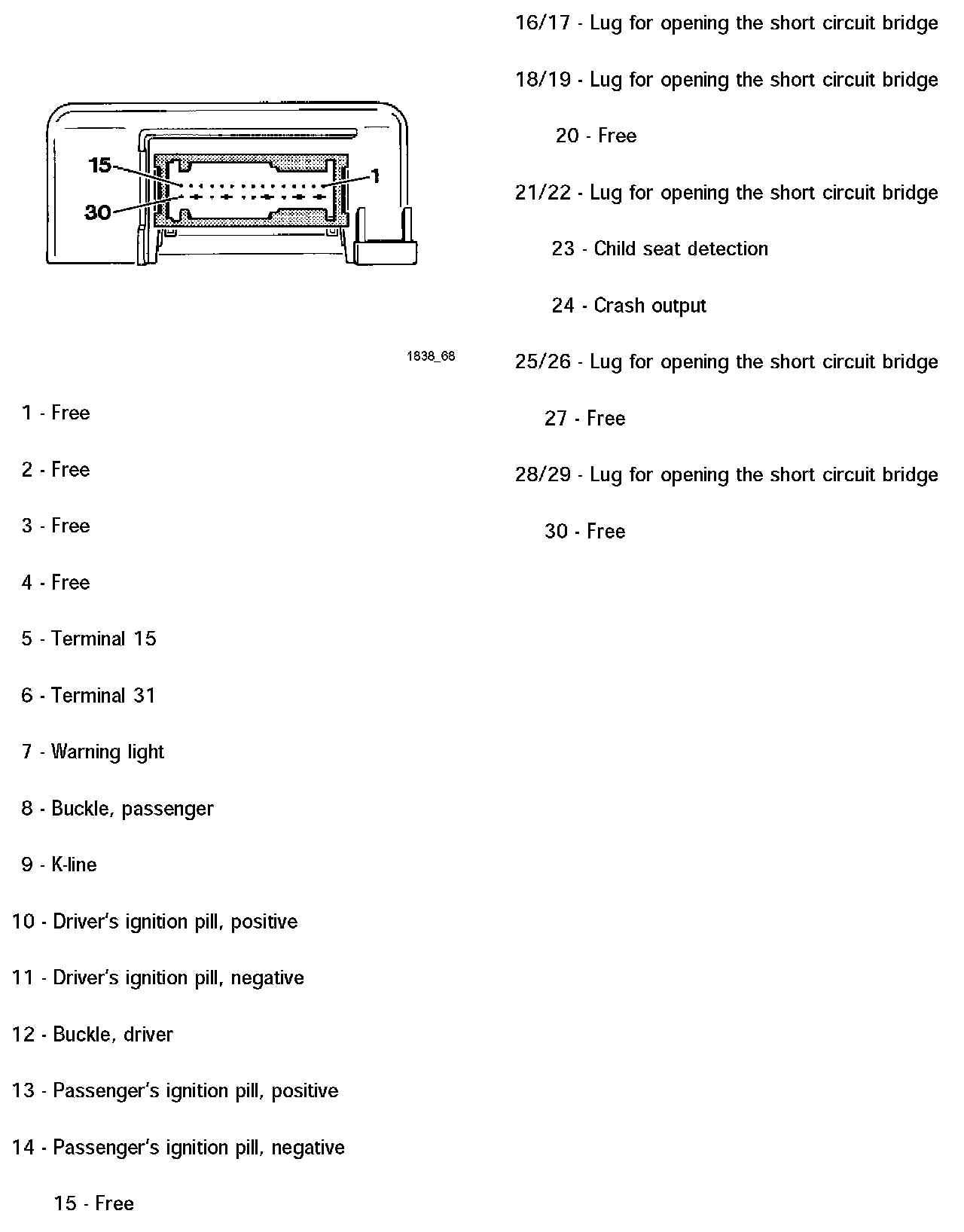

Connector assignment, triggering unit
