Accessory Control Display
>>

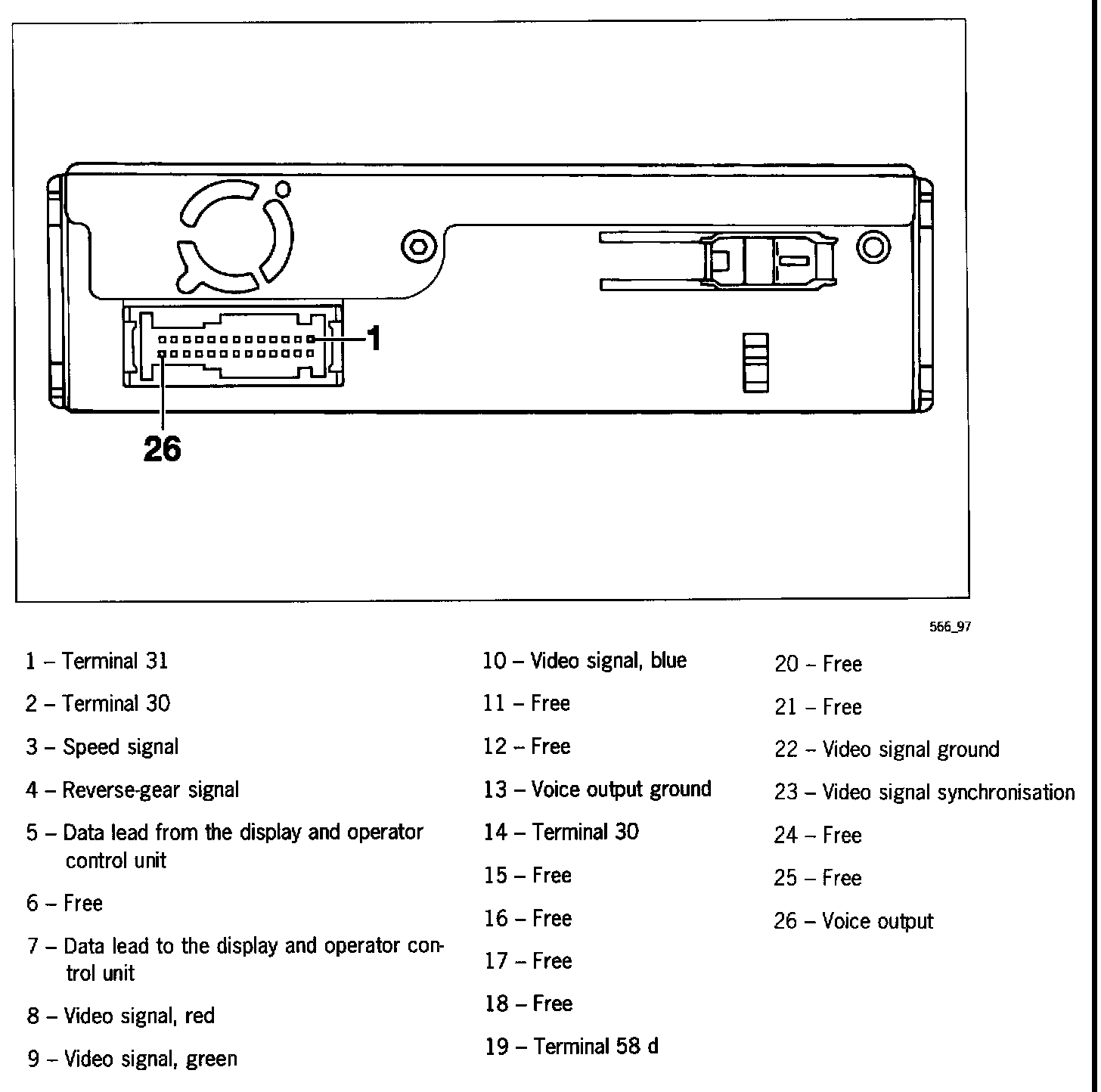

Connector Pin Assignment, Navigation Unit
Connector Pin Assignment, Navigation Unit
Connector View:
