CDR23

8001 CDR23

Voltage supply

Diagnostic conditions
- Ignition on
- Engine running
- Start CDR23

Possible cause of fault
- Battery voltage too low 'less than 9 V for greater than 30 sec'
- Battery voltage too high '> 16 V for > 30 sec'
- Check fuses
- Check battery
- Check generator regulator
- Check generator

Affected pins

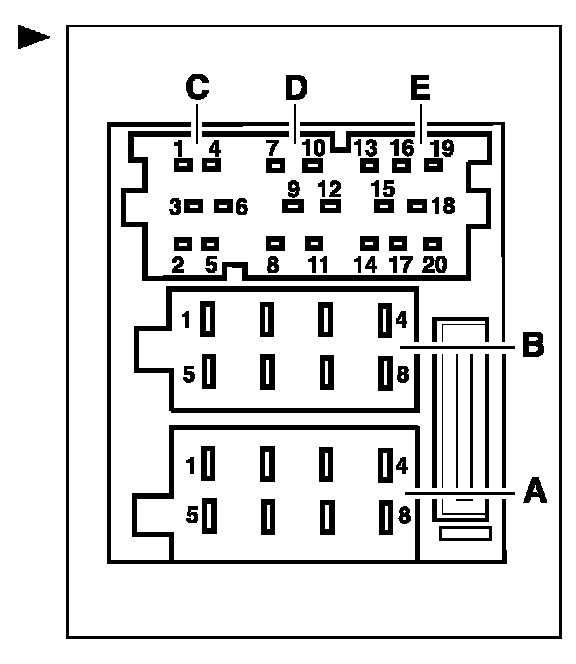

Radio plug A, pins 4 and 8

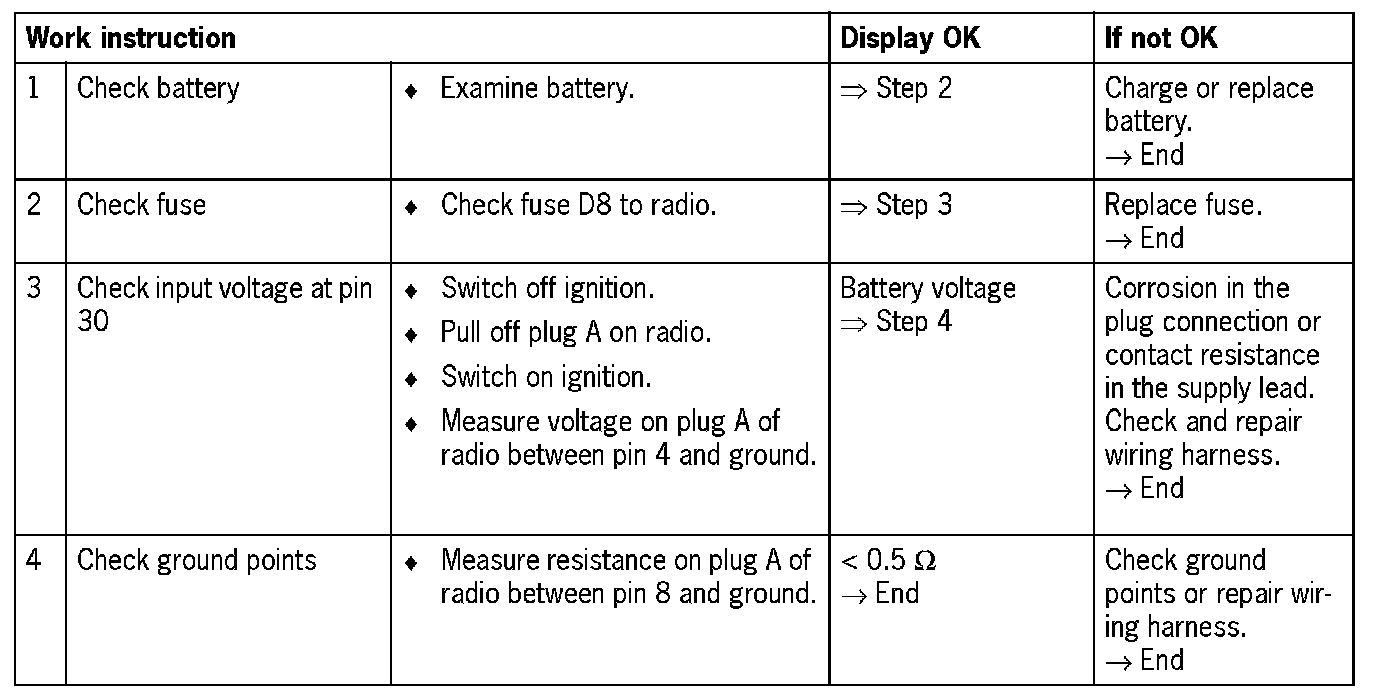

Diagnosis/troubleshooting
