Home >> Porsche >> 2001 >> 911 Turbo AWD (996) F6-3.6L Turbo >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Alignment Control Module >> Diagrams

Headlamp Alignment Control Module: Diagrams

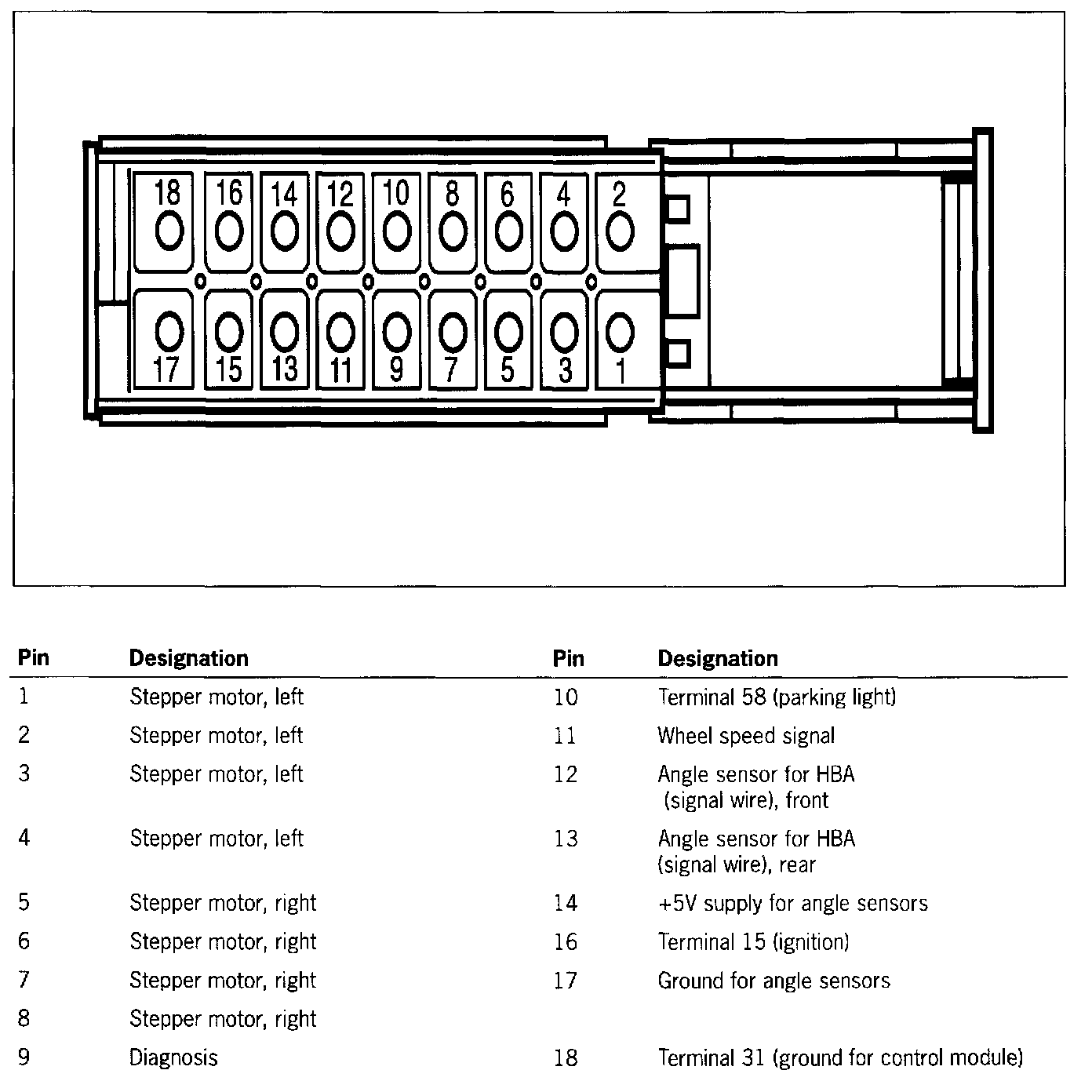

Connector Assignment For HBA Control Module




HBA Control Module, Pins and Designations
