Curiosii for ever!: Car repair manuals for everyone.
Home >> Porsche >> 2001 >> 911 Turbo AWD (996) F6-3.6L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Plug

Plug

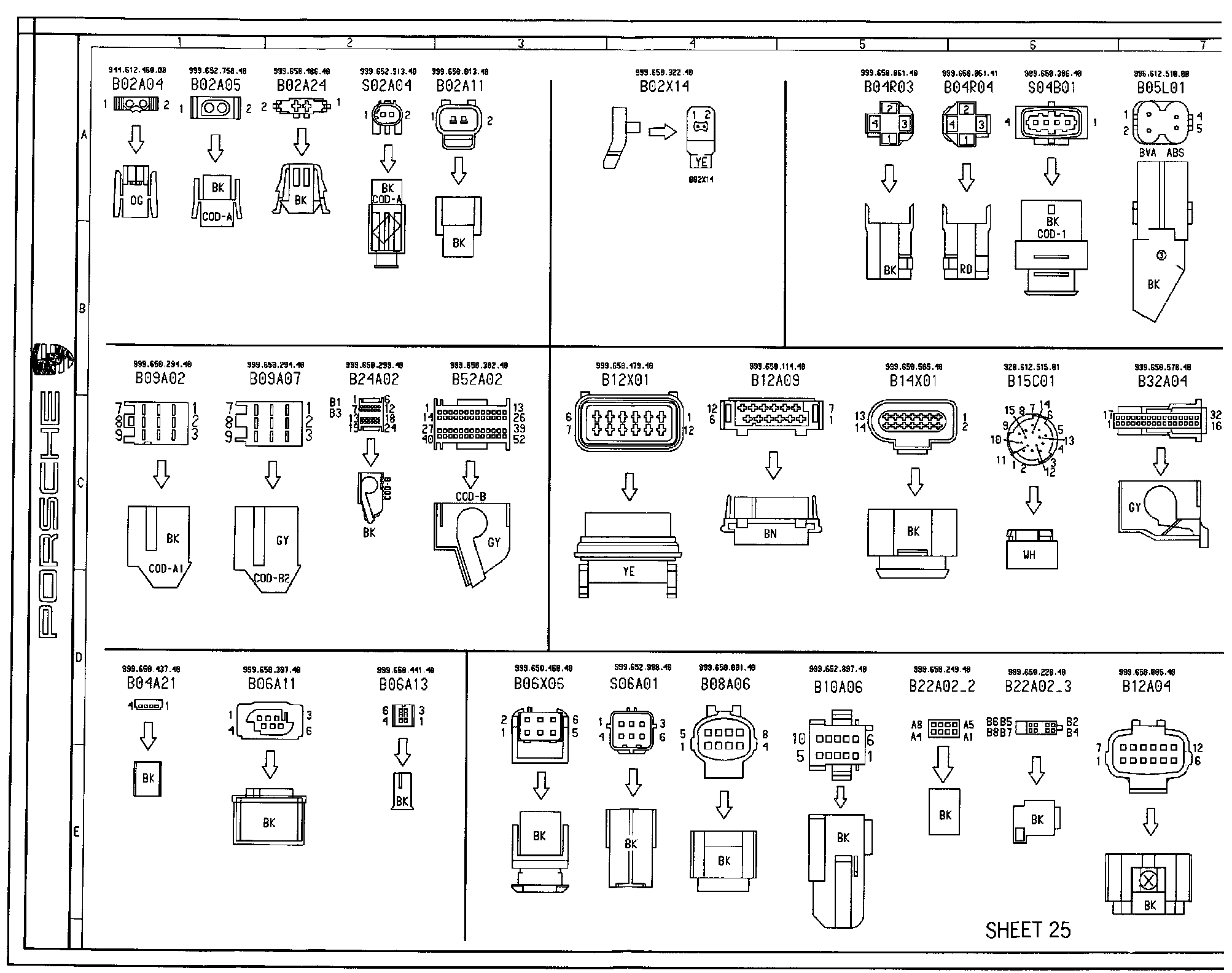

Part 1:

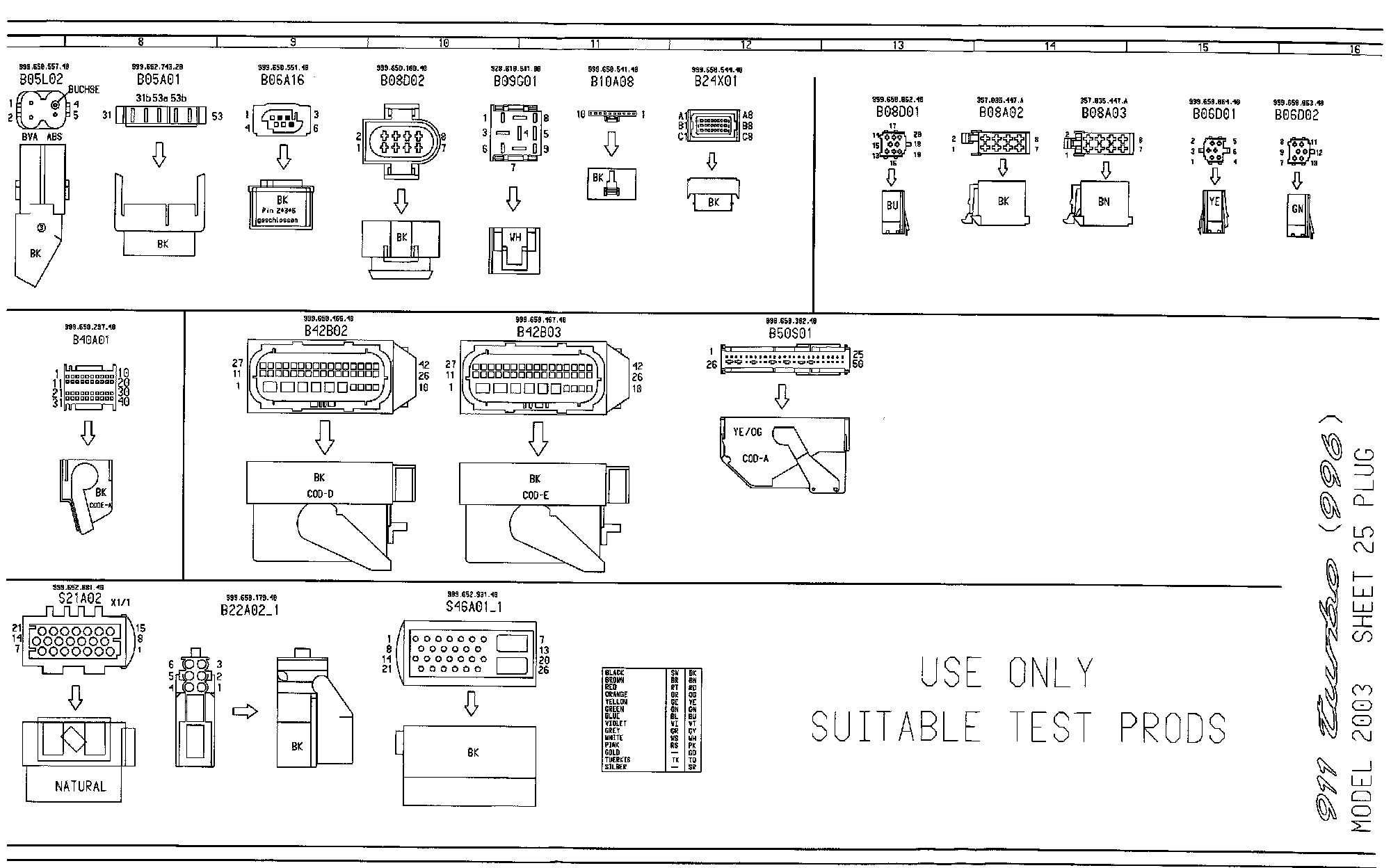

Part 2:
