Cooling System - Leaks at Band Type Hose Clamps
Boxster2/00 8032
Binder 8, A/C & Electrical
11-10-00
Spring-Band Type Hose Clamps
Vehicle Type:
Boxster / Boxster S
Model Year:
As of 1997 (V) / 2000 (Y)
Concern:
Coolant leakage at the spring-band clamps in the engine cooling transmission cooling and heating systems
Information:
It coolant leaks are found at the hose connection points in the engine cooling, transmission cooling and heating systems, you must replace the spring-band type with screw-type hose clamps. Use the following layouts (in this bulletin) to locate the hose connection points, then reference the correct screw4ype hose clamp.
Parts Information:
Literature:
Boxster Technical Manual, Group 1:
> Repair: 19 38 17 - Draining and topping up with coolant
Boxster Technical Manual, Group 3:
> Repair: 38 60 19 - Removing and installing ATF cooler
Boxster Technical Manual, Group 8:
> Repair: 80 23 19 - Removing and installing heat exchanger

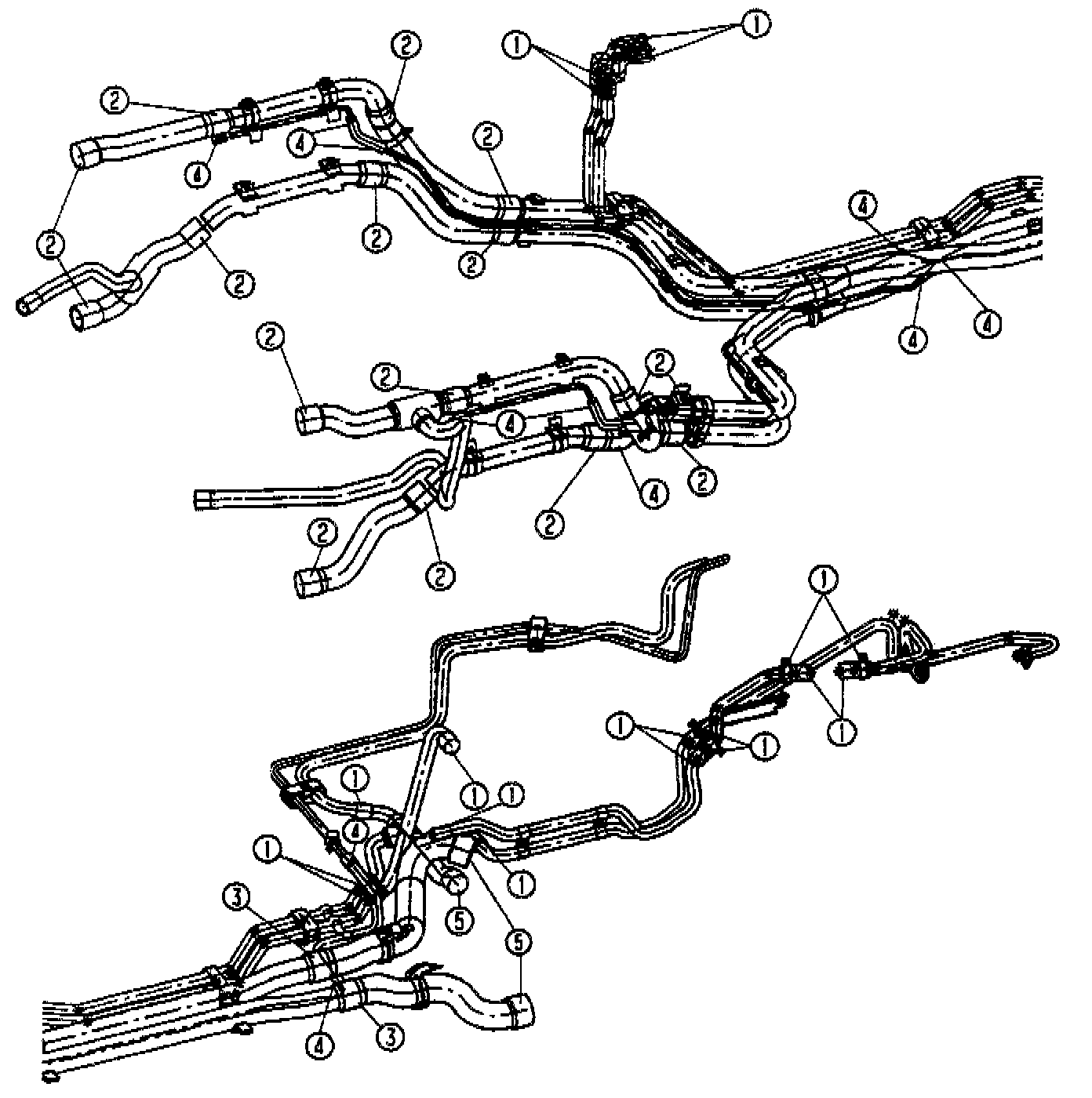

Boxster - 2.5 Liter

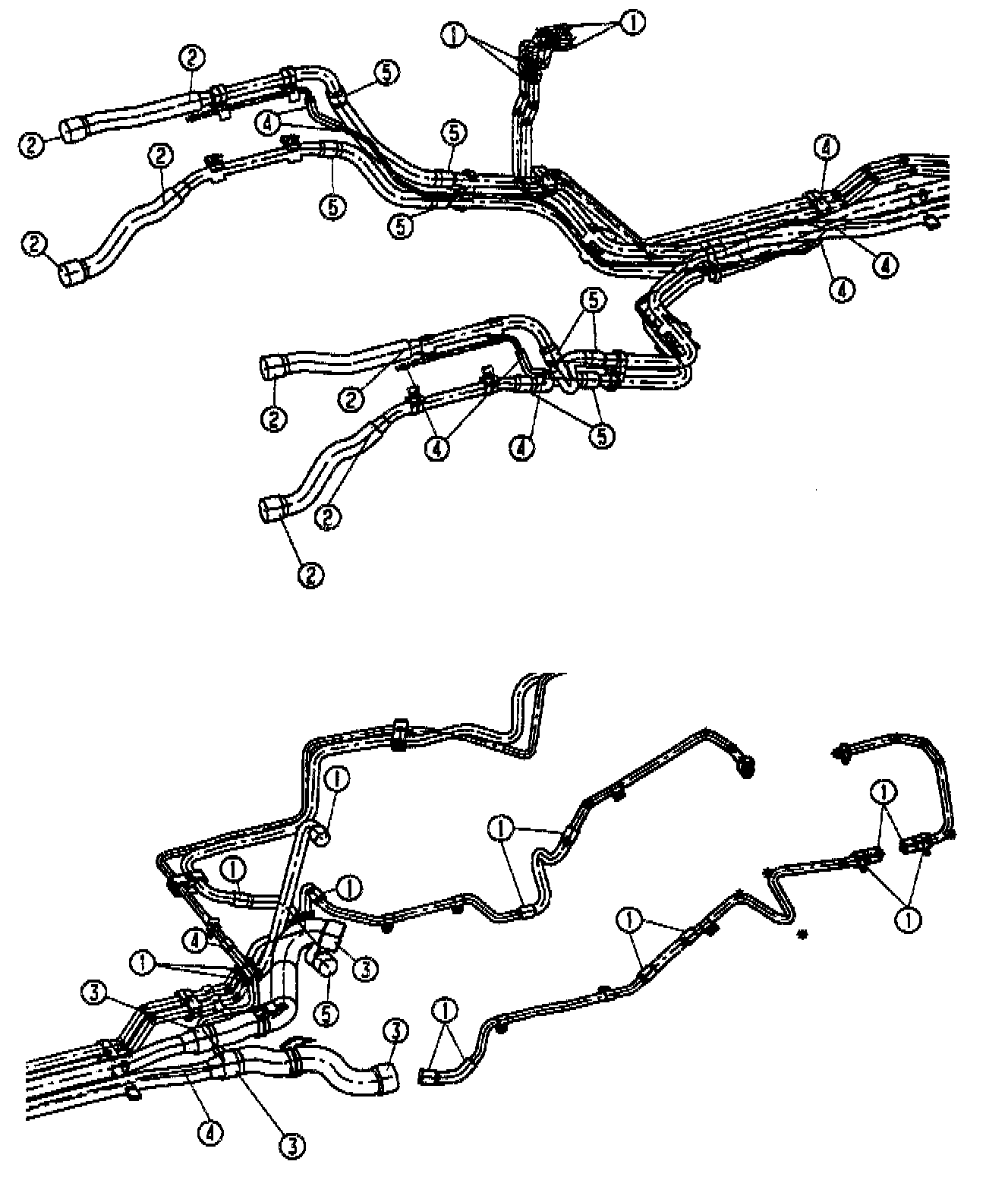

Boxster - 2.7 Liter
Boxster S - 3.2 Liter
