Sport Bucket Seat - Retrofitting
Boxster1/99 7201
Binder - 7, Interior Equipment
Sport Seat Retrofitting
Date: 3-18-99
Vehicle Type:
Boxster
Model Year:
As of 1997 (V)
Concern:
Service installation of sport seat(s).
Information:
A sport bucket seat has been developed and approved for the Boxster. The seat cover of the sport seat is available in two variants:
1. Seat cover of perforated leather, available in interior color
2. Seat cover of flame-retardant fabric, black only (i.e. regulation for racing events)
The sport seat does not have provisions for: adjustable height, lumbar support, or backrest adjustment. Longitudinal adjustment (fore/aft seat position) is only available as a manual adjustment. Additionally, seat memory and seat heating junctions cannot be used with the sport bucket seat.
A Porsche child seat can be fitted on the passenger's side sport seat. In this case the deactivation bar with belt buckle (for deactivating the passenger side dashboard and door airbags) must be fitted on front of the passenger seat, in the usual manner. Also the child seat occupancy must be activated with the PST2 (refer to Technical Information Bulletin, Group 6, No. 9/98).
Sport bucket seats are available on new Boxsters (in leather) under Exclusive options: XSE (left sport seat) and XSF (right sport seat).
Warning!
Always observe all local laws and ordinances!
Parts Info.:
Part Number Description
996 521 985 00 Left sport seat with black fabric cover
996 521 986 00 Right sport seat with black fabric cover
996 521 985 01 XXX Left sport seat with leather cover
996 521 986 01 XXX Right sport seat with leather cover
Note:
XXX = desired color code
Tools Required:
Torque wrench up to 65 Nm (48 ft lb.)
17 mm socket
Shop light
Hammer
Large slotted screwdriver
17 mm open-end wrench
Torx T27 socket wrench
Drift punch 4.0 mm
Work Procedure:
Installation of sport seat.
1.1 Remove standard seat (Technical Manual, Group 7, Serv. No. 7201).
1.2 Remove belt fitting fastening (hexagon-head bolt) in sill area of B-pillar (Technical Manual, Group 6, Serv. No. 6972).
1.3 Screw hexagon-head bolt with bushing back into threaded hole of B~pillar. Place plastic cap on bolt head.
1.4 Remove hexagon-head bolt on the outside of the sport seat.
1.5 Check if there are grooved pins (arrows) on the intermediate part (Figure 3, Item A) of the sport seat. If yes, the intermediate part must be removed and the grooved pin(s) must be driven out with the hammer and drift punch.
2. Install sport seat. Note: The belt fittings (3 point) must always be fitted on the outside of the sport seat
Guide belt fitting (Figure 3, Item B) of the 3-point belt through the external openings of the sport seat to the seat rail as shown in Figure 2.
Note:
Ensure that the belt is routed correctly, i.e. the belt strap must not be twisted (Figure 1). The angled side of the belt fitting must point toward the seat bucket after assembly on the sport seat.
2.2 Position the belt fitting in front of the threaded hole in the intermediate part (Figure 3).
2.3 Screw on belt fitting and spacer bushing (Figure 3, Item C) with the hexagon-head bolt belonging to the sport seat. Tightening torque: 50 Nm (37 ft lb).
2.4 Make electrical connection under the seat, lock and affix to the bottom of the seat bucket. Affix electrical wire to the holders provided on the seat bucket.
2.5 Align the pins on the bottom of the seat rail of the sport seat with the bores in the floorpan. Screw the sport bucket seat to the floorpan with the standard screws. Tightening torque: 65 Nm (48 ft lb).
2.6 Fit covers (4 x per seat) for the seat rails.
3. Check function of the warning light which shows whether or not the belt is fastened.
3.1 Switch ignition on.
3.2 The warning light in the instrument panel must go out when the tongue of the 3-point belt is inserted into the belt buckle.

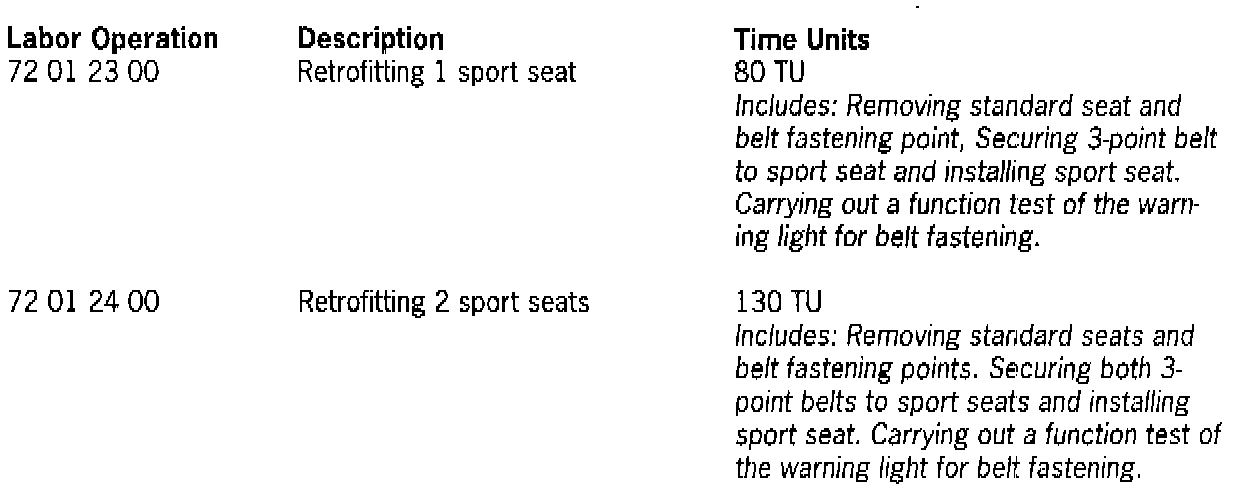

Labor Operations
Literature:
Boxster Technical Manual, Groups 6/7, sections:
69 72 19 - Removing and installing rollover bar
72 01 19 - Removing and installing front seat
Technical Information Bulletin, Group 6/7, No. 9/98 - Bar with belt buckle.
