Engine - Crankcase/Bearing Housing Replacement

Boxster

1a/01 1010

Binder - 1 - Engine, Part 1

Date: 8-22-03

These bulletin replaces bulletin Group 1, # 1/01, dated 2-28-02.

Crankcases and Bearing Housings

Vehicle Type:
Boxster

Model Year:
1997 (V) - 99 (X)

Concerns:
Crankcases and bearing housing use for repairs/replacement parts.

Filing:
Replace bulletin Group 1, # 1/01 dated 2-28-02 in the Boxster Technical Manual with this one and affix the attached decal across page 18 of Technical Bulletin Book S

Information:
The parts department will be supplying modified crankcases and bearing housing. During repairs, if the crankcase is damaged, the crankcase and the bearing housing must be replaced together.

Due to the crankcase modifications, the previously installed bearing housing can no longer be used. This applies for all engines in the model years 97 (V), 98 (W) and 99 (X) up to the following engine numbers:

M96/20 65 X 17100

Note:
During installation of a new bearing housing the oil spray jets for piston cooling must also be installed.

The modified bearing housing can be installed retroactively in a pre-modification crankcase.

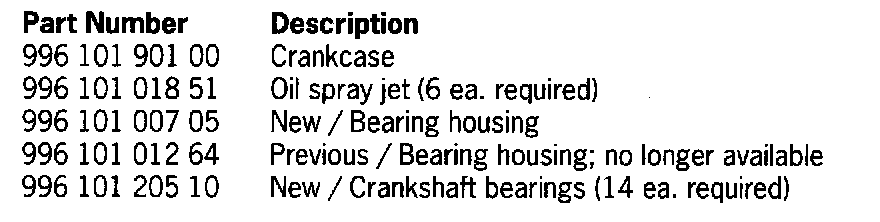

Parts Information

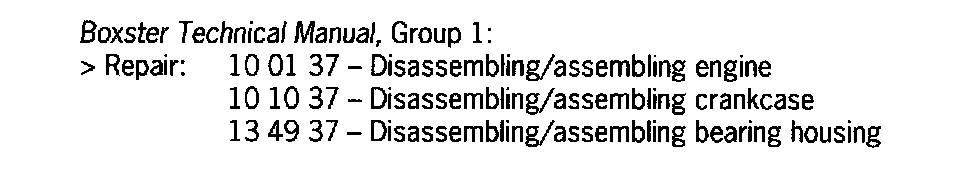

Literature:





Disclaimer
