Automatic Dimming Rearview Mirror (Interior) - Install: Overview
Boxster7/98 6827
Binder - 6 Body
Date: 6/24/99
Automatic Dimming Rearview Mirror (Interior)
Vehicle Type:
Boxster
Model Year:
As of 1998 (W)
Concern:
Service installation of the automatic dimming (anti-dazzle) interior rearview mirror. (Exclusive option "XE3")
Information:

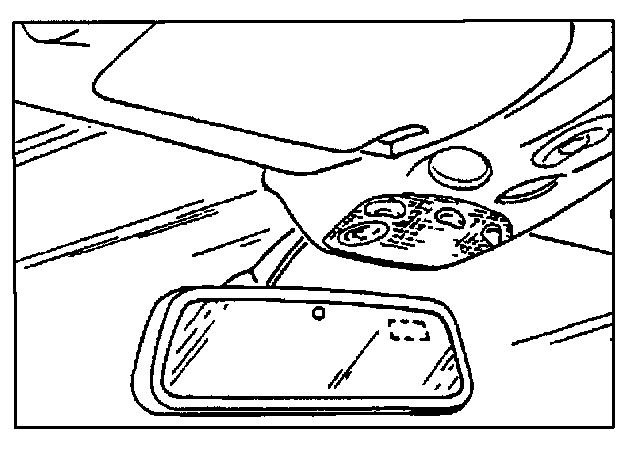

When the ignition is switched on, the automatic dimming (anti-dazzle) interior rearview mirror detects incoming light by means of two photocells. If the brightness on the mirror glass is greater than the brightness on the mirror housing (front side), a control process is initiated and the mirror glass is darkened.
Note:
The automatic dimming (anti-dazzle) function is disabled whenever the vehicle is in reverse gear (with ignition on). When in reverse gear, the mirror will only operate in a normal, undimmed state.
Important:
For this reason, the reverse gear input signal to the automatic dimming interior mirror must be connected for proper operation. This input signal should be connected at weld-point 21 under the left (driver's) seat. See work procedure.
Parts Info.:
Part Number Qty. Description
000 044 801 46 1 Automatic dimming (anti-dazzle) mirror (6-pole) kit
Consisting of:
996 731 982 00 01C 1 Interior mirror, including lead and 6-pole plug
996 612 986 00 1 Electrical wiring harness, including 6-pole plug
N 020 909 4 7 Tie-wrap, 92 mm long / 2.4 mm wide
999 513 054 40 3 Tie-wrap, large (for seat memory and wiring harness)
Required Tools:
Special tool 9578
Teflon hose or flexible wire
Screwdrivers, as needed
Allen wrench, 4 mm and 5 mm
10 mm open-end wrench
Torque wrench, up to 65 Nm (48 ft lb.)
Torx socket wrench, T27 / E12
Hand saw
Lock file, flat
Side cutters
Felt-tip pen or scriber
Philips bit
Plastic spatula
Shop light
Req'd Materials:
Electrical tape
Cleaning cloth
Crimp contact for reverse gear input connection (0.35 mm).
Working Time:
Labor Operation TU Description
68 27 23 00 300 Installing automatic interior mirror
Includes: Disconnecting and connecting battery, removing standard interior mirror, installing and completely connecting the automatic interior mirror (and reverse gear signal), function test, reading out fault memories of the control modules.
Literature:
Boxster Technical Manual, Groups 5/6/7/9, sections:
55 10 37 - Disassembling and assembling front-lid release
68 27 19 - Removing and installing interior rearview mirror
70 18 37 - Disassembling and assembling dashboard
72 01 19 - Removing and installing front seat
94 05 19 - Removing and installing main light switch
96 85 19 - Removing and installing passenger compartment monitoring sensor
97 Wiring diagrams: Lights, Mirror Adjustment, Connectors, Weld Points, Relay Supports, Fuses
