Automatic Dimming Rearview Mirror (Exterior) - Install: Overview
Boxster11/98 6827
Binder - 6 Body
Date: 6/24/99

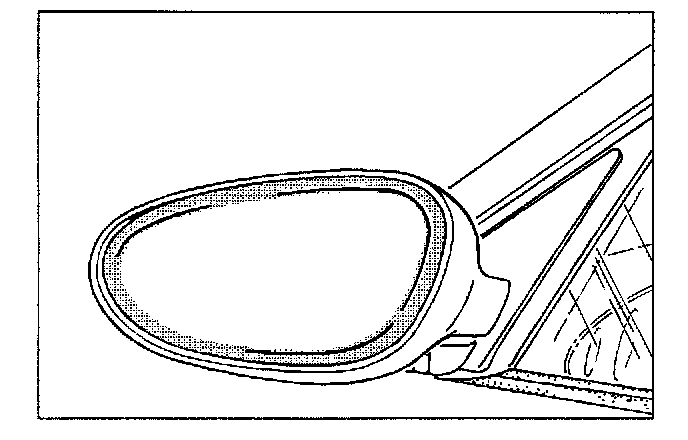

Automatic Dimming Rearview Mirror (Exterior)
Vehicle Type:
Boxster
Model Year:
As of 1998 (W)
Concern:
Service installation of the automatic dimming (anti-dazzle) driver's door mirror. (Exclusive option "XEH") This option must be installed with the anti-dazzle interior mirror option "XE3".
Information:
When the ignition is switched on, the automatic dimming (anti-dazzle) interior rearview mirror detects the incoming light on the mirror glass via photocells. If the brightness on the interior mirror glass (light from the rear) is greater than the brightness on the mirror housing (light from the front), a control process is initiated. The control process dims both the interior rearview mirror, and the driver's door mirror.
Note:
The automatic dimming (anti-dazzle) function is disabled whenever the vehicle is in reverse gear (ignition on). When in reverse gear, the mirror will only operate in a normal (undimmed) state.
Parts Information:
Part Number Qty. Description
000 044 801 03 1 Anti-dazzle door mirror kit for vehicles without seat and mirror memory Option (M537)
000 044 801 52 1 Anti-dazzle door mirror kit for vehicles with seat and mirror memory Option (M537)
996 612 985 01 1 Door wiring harness; for left door with maximum equipment (electrical system)
Kits above consist of:
Part Number Qty. Description
996 731 983 00 1 Mirror glass
999 703 470 40 1 Clip for angle (Part number - 996 610 320 00)
996 555 831 01 1 Door film, includes strips of adhesive tape
N 020 909 4 6 Tie-wrap
996 731 984 01 70C* 1 Mirror base for vehicles with M537
996 731 984 00 70C* 1 Mirror base for vehicles without M537
* Only included in the corresponding set!
Materials:
Adhesive tape
Cleaning cloth
999 652 983 22 (2x) - The contact pins are only needed if they're missing from the interior mirror control wires.
Tools Required:
Porsche System Tester - PST2
4 mm allen key
10 mm open-end wrench
Plastic spatula
Hand lamp
Screwdrivers, as needed
Torx T25 socket
Working Time:
Labor Operation TU Description
66 89 23 00 290 Installing anti-dazzle door mirror (driver's door)
Includes: disconnecting and connecting battery, removing standard door mirror, installing and connecting the automatic anti-dazzle door mirror, function test, reading out fault memories of the control modules.
Literature:
Boxster Technical Manual, Groups 5/6/7/9, sections:
57 51 19 - Removing and installing door
57 51 37 - Disassembling and assembling door
66 89 37 - Disassembling and assembling the rearview mirror
Wiring diagrams for 99 model - Lighting, seat and mirror memory, connector points, relay carrier and fuses
Technical Information, Group 5, No. 4/98 "Inner Door Release Inoperative"
Technical Information, Group 6, No. 7/98 "Automatic Rearview Mirror (Interior)"
