8005 PCM2 - Gateway

8005 PCM2 - Gateway

CAN Comfort Timeout, Instrument Cluster

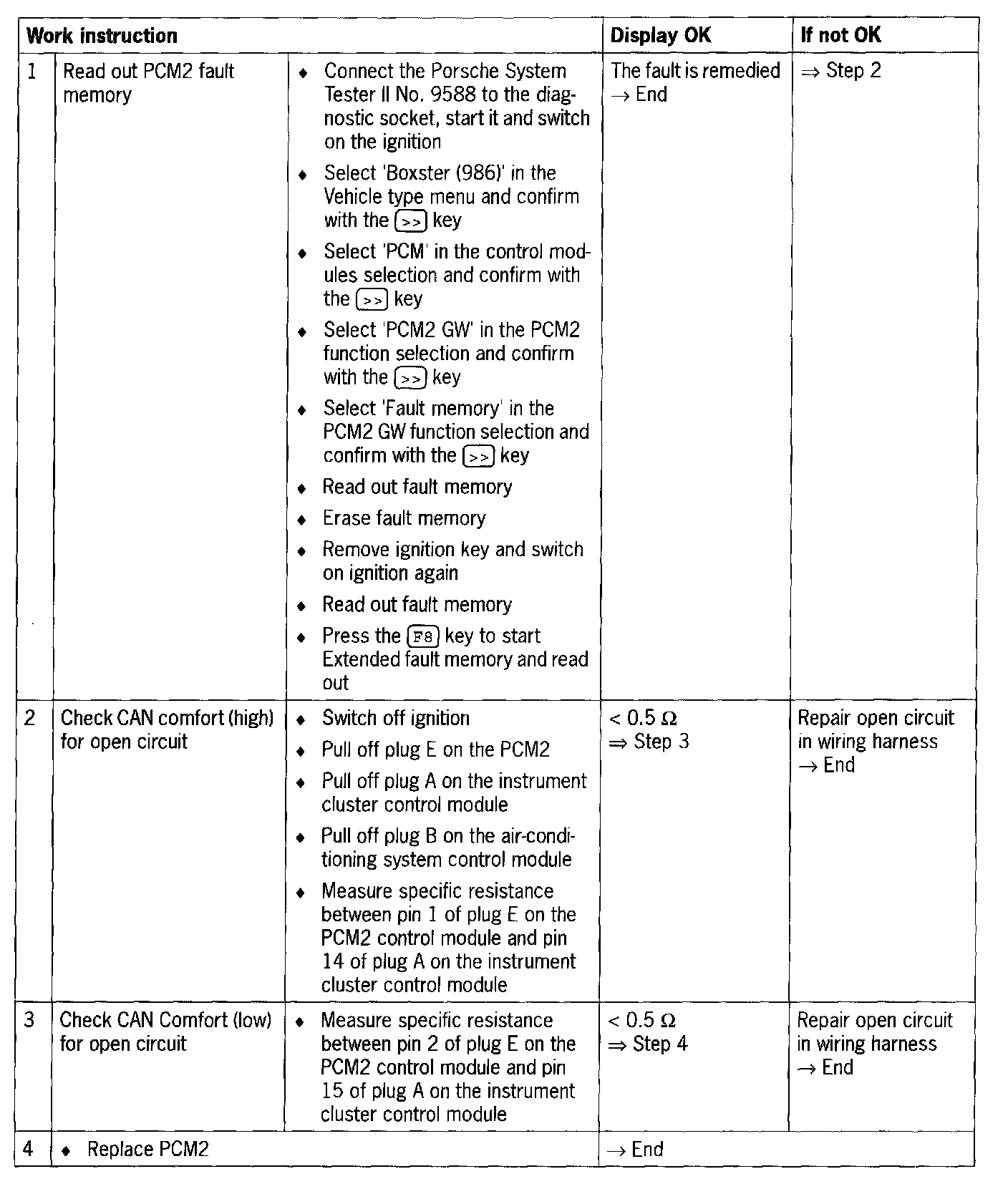

Diagnostic conditions
- Ignition on
- PCM2 on

Possible cause of fault
- CAN comfort (high) - open circuit
- CAN comfort (low) - open circuit

NOTE:
The CAN Comfort is connected to the following control units:
- PCM2 as of model year 2003
- Instrument cluster
- Air-conditioning control unit
- Radio

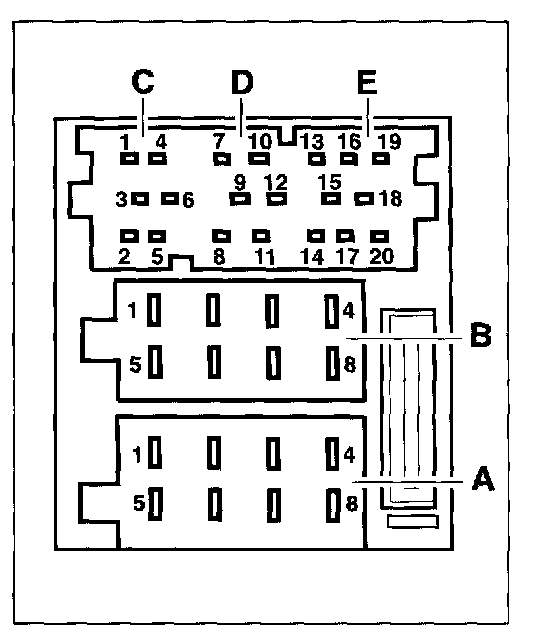

Affected pin
