Tensioning Plate (Shift Detent)

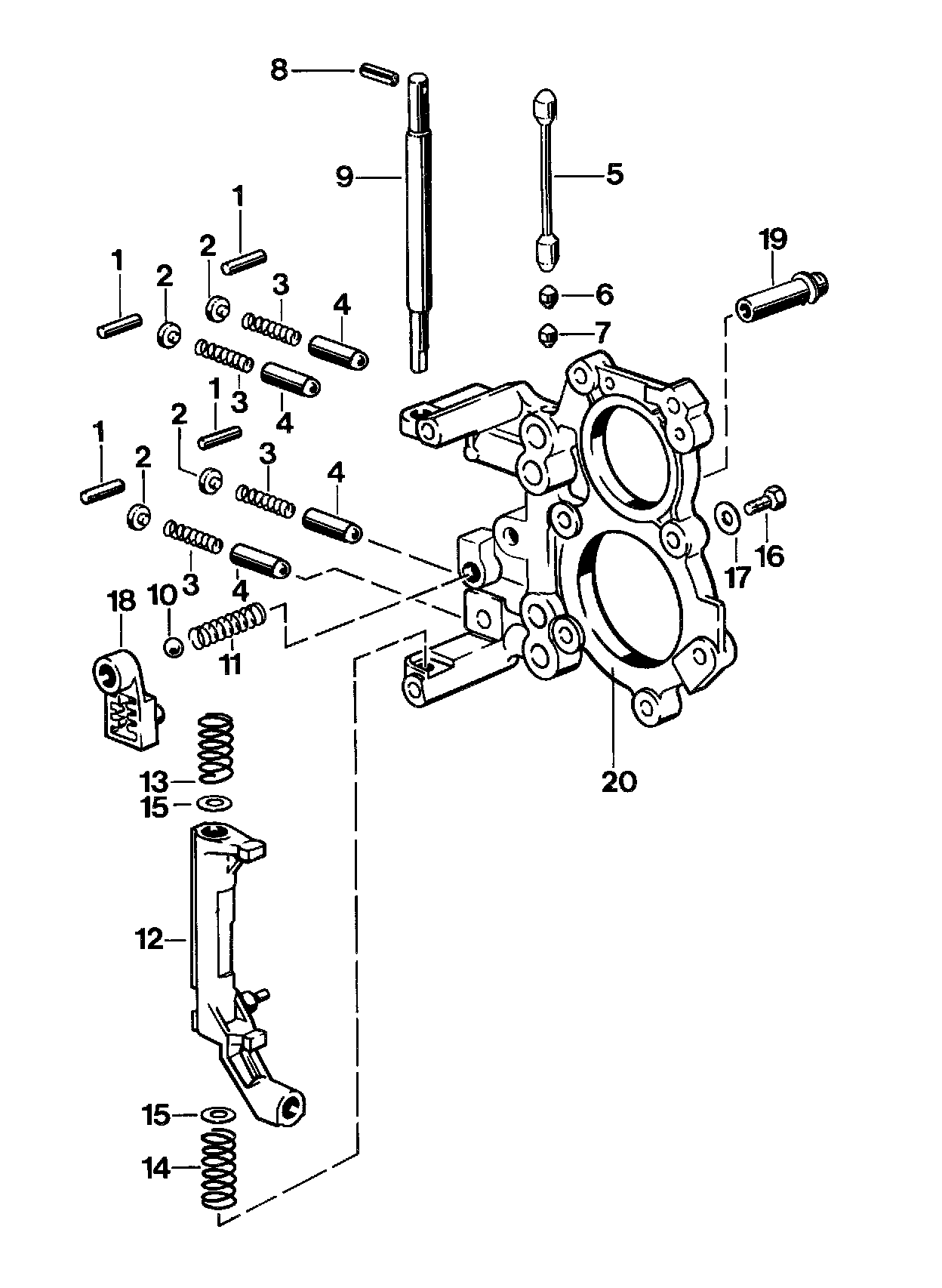

Shift Detent Plate Disassembly/Assembly (Part 1 Of 3):

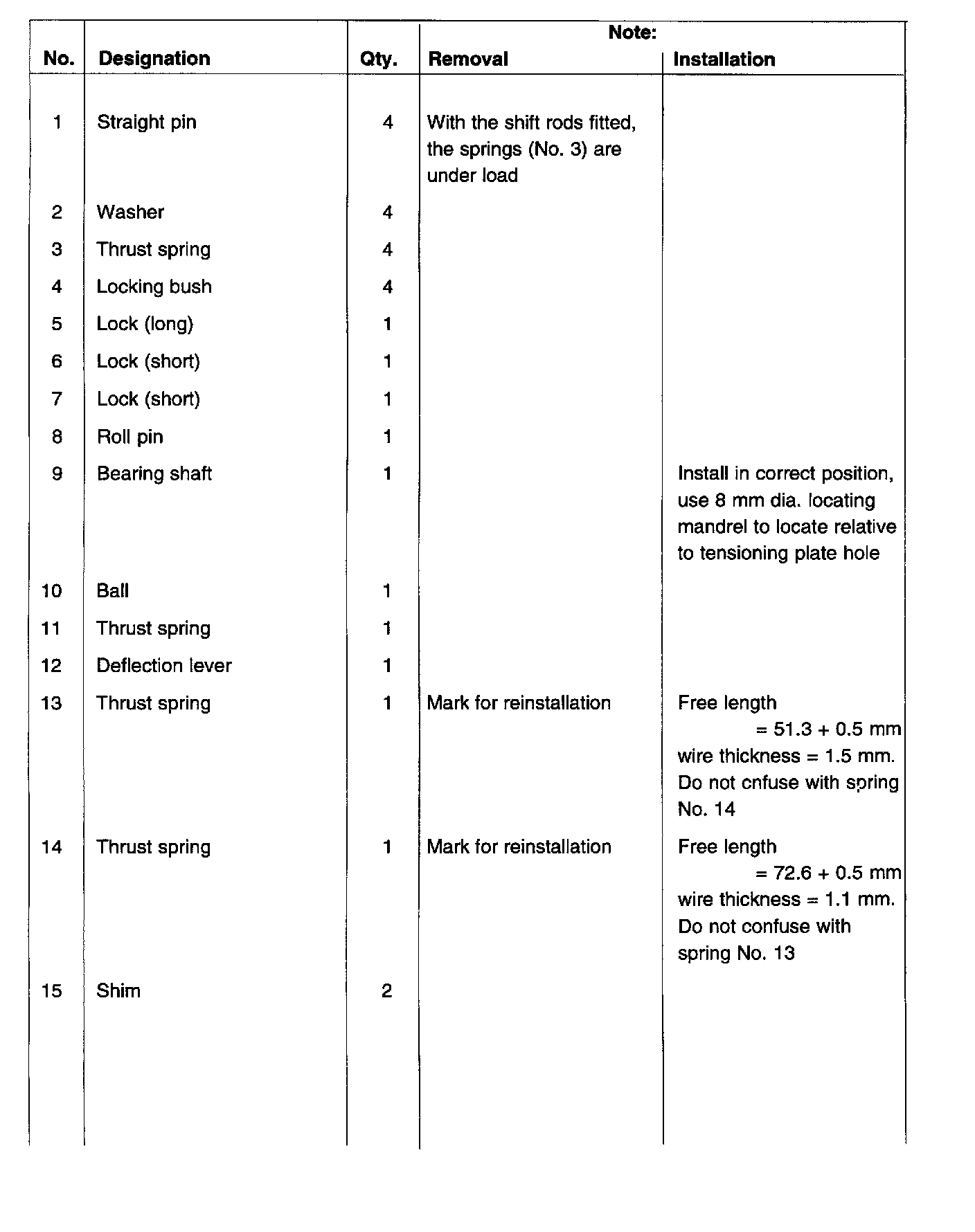

Shift Detent Plate Disassembly/Assembly (Part 2 Of 3):

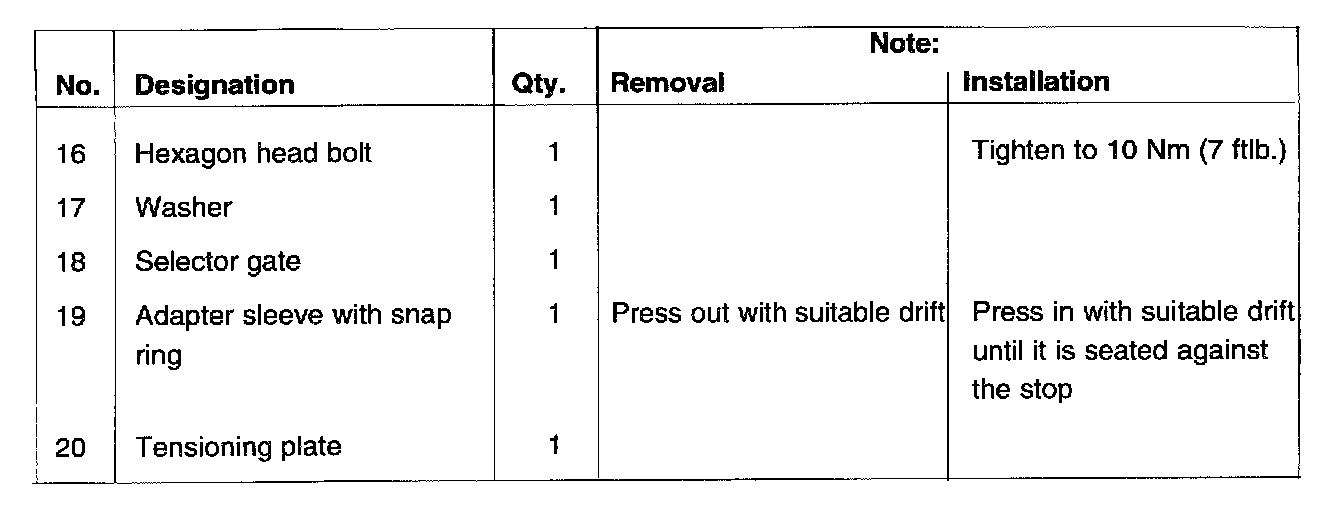

Shift Detent Plate Disassembly/Assembly (Part 3 Of 3):






Assembly Notes

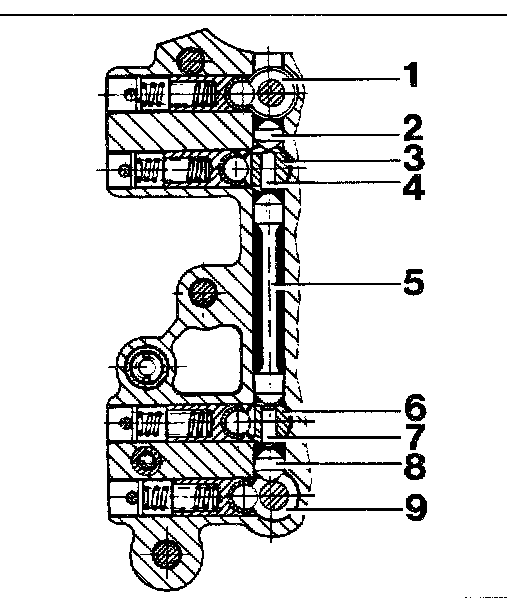

Installation Position Of The Locks:
