Output Shaft: Service and Repair



Refer to the following illustrations when performing services

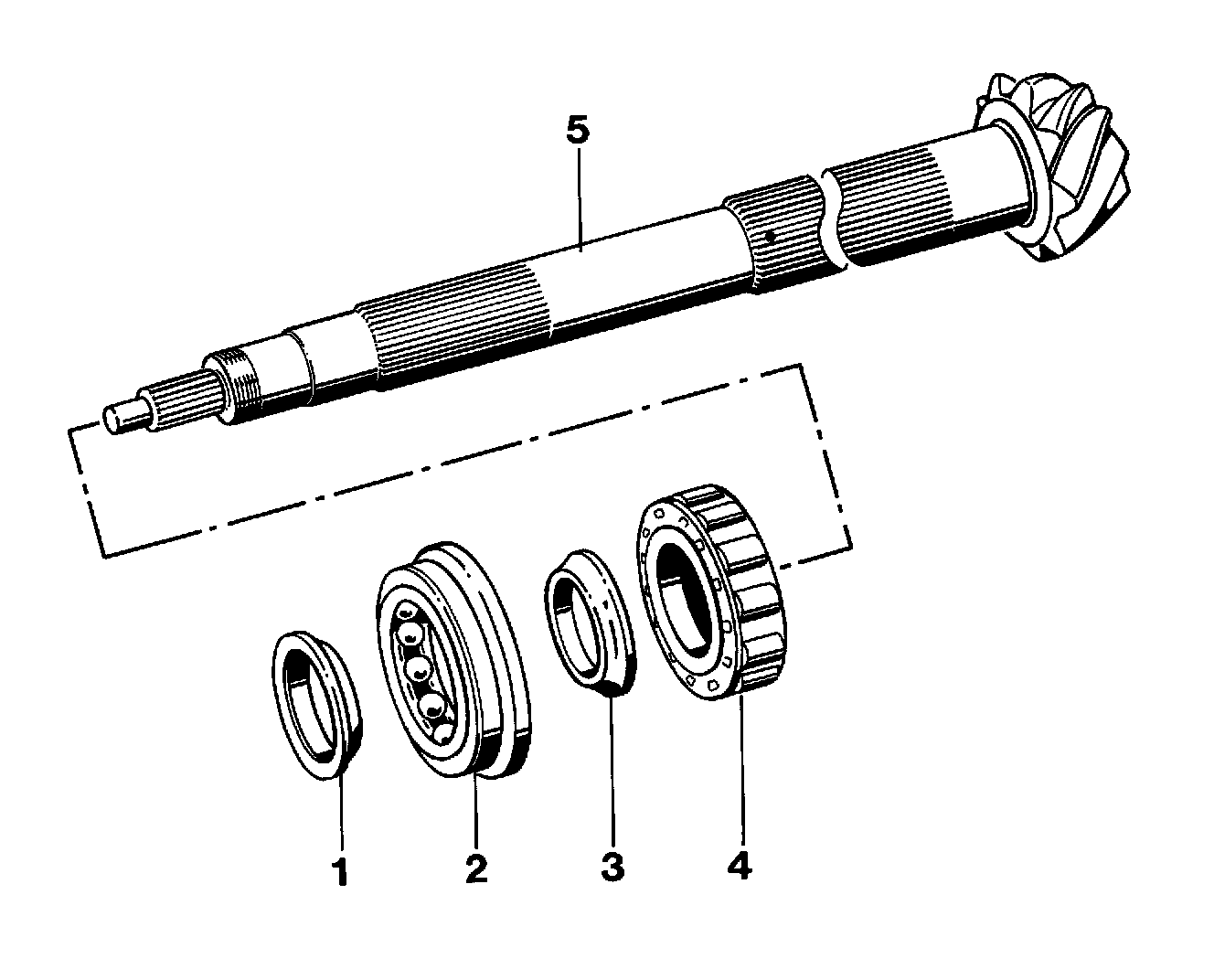

Output Shaft Disassembly/Assembly (Part 1 Of 2):

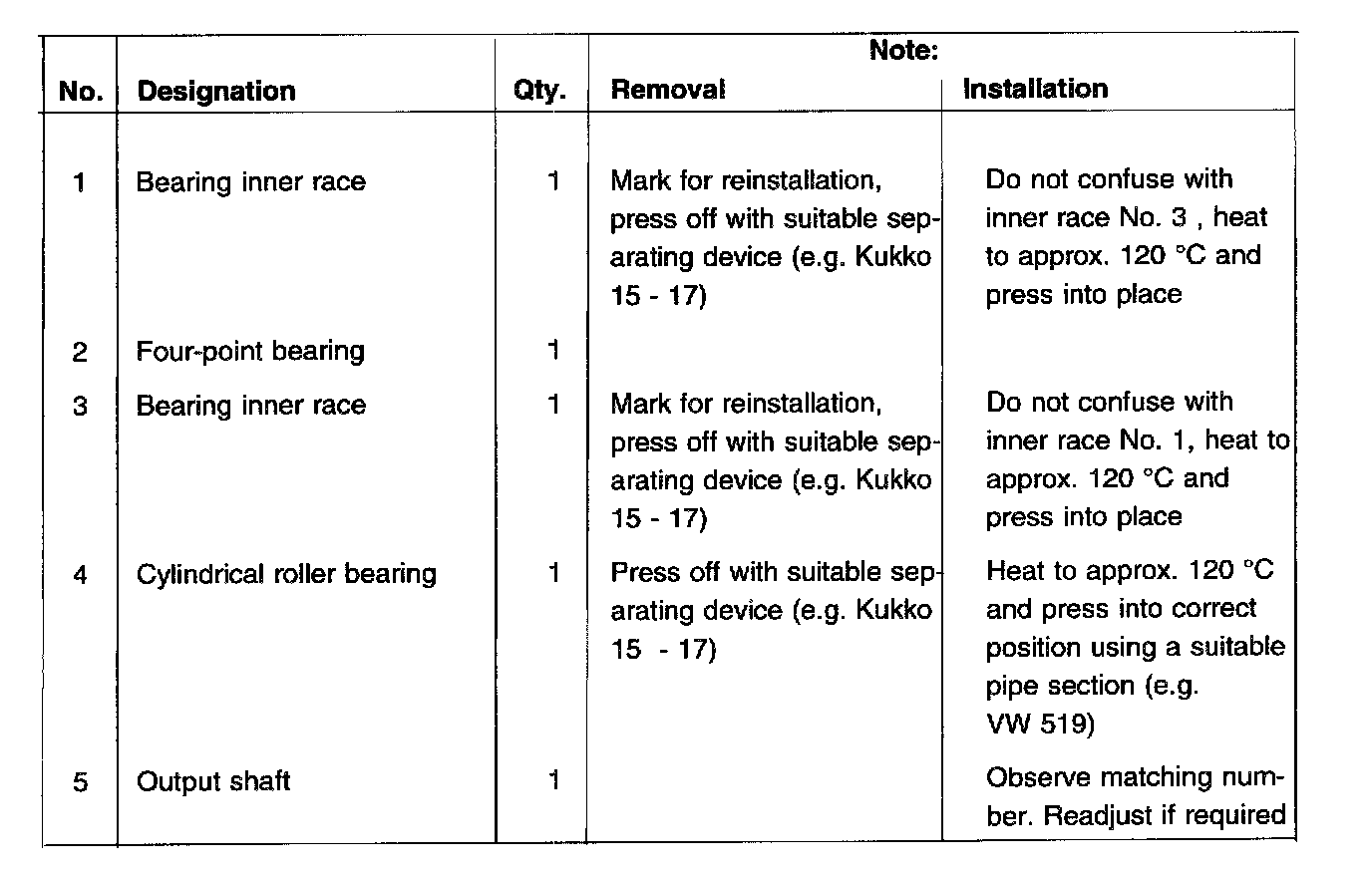

Output Shaft Disassembly/Assembly (Part 2 Of 2):
