Removing and Installing Driver Airbag Unit

1. Disconnect battery and cover terminals --or entire battery.

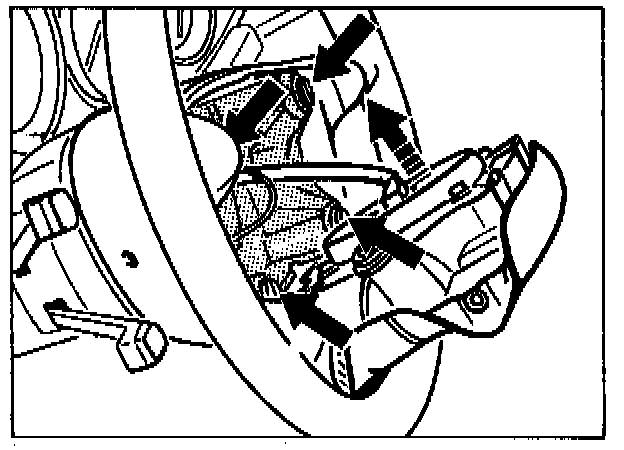

2. Undo fastening screws (2 ea.) with a Torx T-30 socket screwdriver.



3. Pull off connector.

NOTE: Replace the self-locking nuts whenever they have been released, undoing the retaining plate of the airbag unit (4 screws) in the steering wheel.

WARNING: When stowing away the airbag unit, make sure the padded side faces up. The airbag unit must be stored in a safe place when it remains removed for longer periods. Observe safety precautions.

- Tightening torque for fastening screws (two M 6x16 screws): 10 Nm (7 ft.lb.)
- Tightening torque for retaining plate (four M 5x20 screws): 5 Nm (3.5 ft.lb.)
