Campaign - Engine Harness Inspection/Replacement: Overview

911 Turbo (993)
1a/02 9752
Binder - Service Technical Bulletins
This bulletin replaces bulletin Group 9, # 2/01, Dated 10-18-02.

Date: 1-22-03

W301-Replacement of Engine Wiring Harness

Vehicle Type:
911 Turbo (993)

Model Year:
MY 1996 (T)

Concern:
Engine wiring harness - This bulletin replaces bulletin Group 9, # 2/01, Dated 10-18-02.

Information:
Porsche is requesting that the engine wiring harness be checked and/or replaced on a certain range of model year 1996 911 Turbo (993) vehicles.

Based on field information and internal testing, Porsche AG has concluded that the insulation of the wires of the wiring harness may deteriorate. The deterioration of multiple wires may result in shorts which affect the proper function of the engine. Rough engine running, stalling, inability to start the engine due to a dead battery, starter malfunction, and illumination of the Malfunction Indicator Light ("Check Engine" warning lamp) are symptoms for this problem.

The engine wiring harness part number must be checked on all affected vehicles. Depending on what you find when you inspect the vehicle, the wiring harness may then also need to be replaced.

Affected Vehicles:

A total of 779 U.S. and 65 Canadian vehicles fall within the scope of this Service Action.

Very Important! Not every vehicle in the below listed range may be affected. Use the ranges below as a general guideline. Alternatively, the VIN can be checked in the Porsche E-DCS/WWS for confirmation of an open service action (or recall campaign). Also, the VIN can be checked via the VRU (Voice Response System) for any open listing.

The affected Vehicle Identification Numbers are contained in the following VIN-Ranges:

WP0AC2992TS375065 to WP0AC2992TS375924 (U.S. Vehicles)

WP0AC2996TS375067 to WP0AC299XTS375895 (Canadian Vehicles)

Customer Notification

Porsche Cars North America, Inc. will notify all known Vehicle Owners directly by First Class Mail during the week of October 21, 2002, as per Notification Card located in Attachment "A"

Work Procedure:

See Attachment "B".

Administrative Procedure:

See Attachment "C"

Customer Reimbursement Procedure:

See Attachment "D"

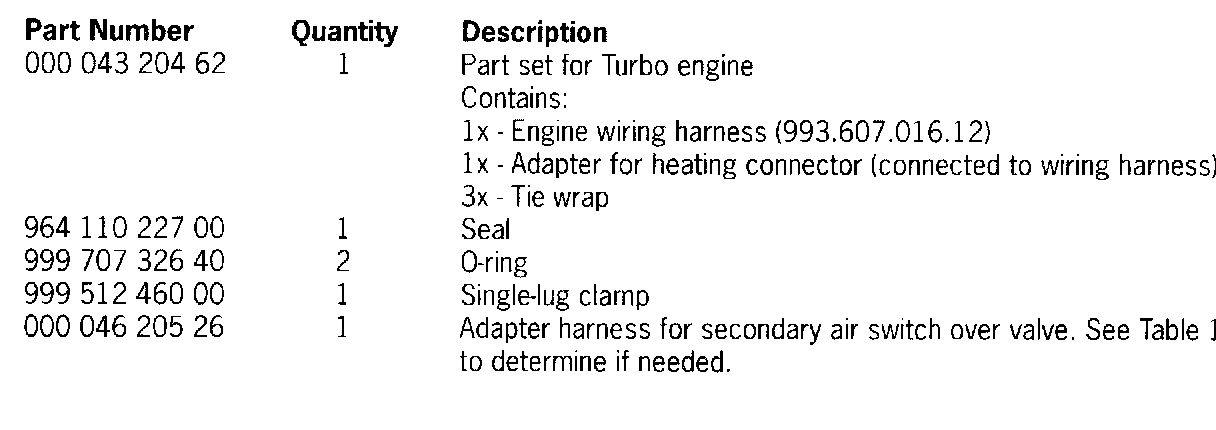

Parts Required:
