Warranty - Reporting OBDII Related Repairs
9119801
2470
Binder - Service Technical Bulletins
This Bulletin replaces bulletin, Group 2, # 9503, dated 8-31-95.
Date: 8-21-98
Reporting OBD II Related Repairs
Models Affected:
All 1996 911 and 911 Turbo
As of Model Year 1996, all Porsche vehicles are equipped with On-Board Diagnostics, Version Two (OBD II). If a condition develops relevant to exhaust emissions control, the "Check Engine" (MIL) warning light will illuminate. All information concerning the fault or faults will be stored in the Fuel Injection ECM (DME).

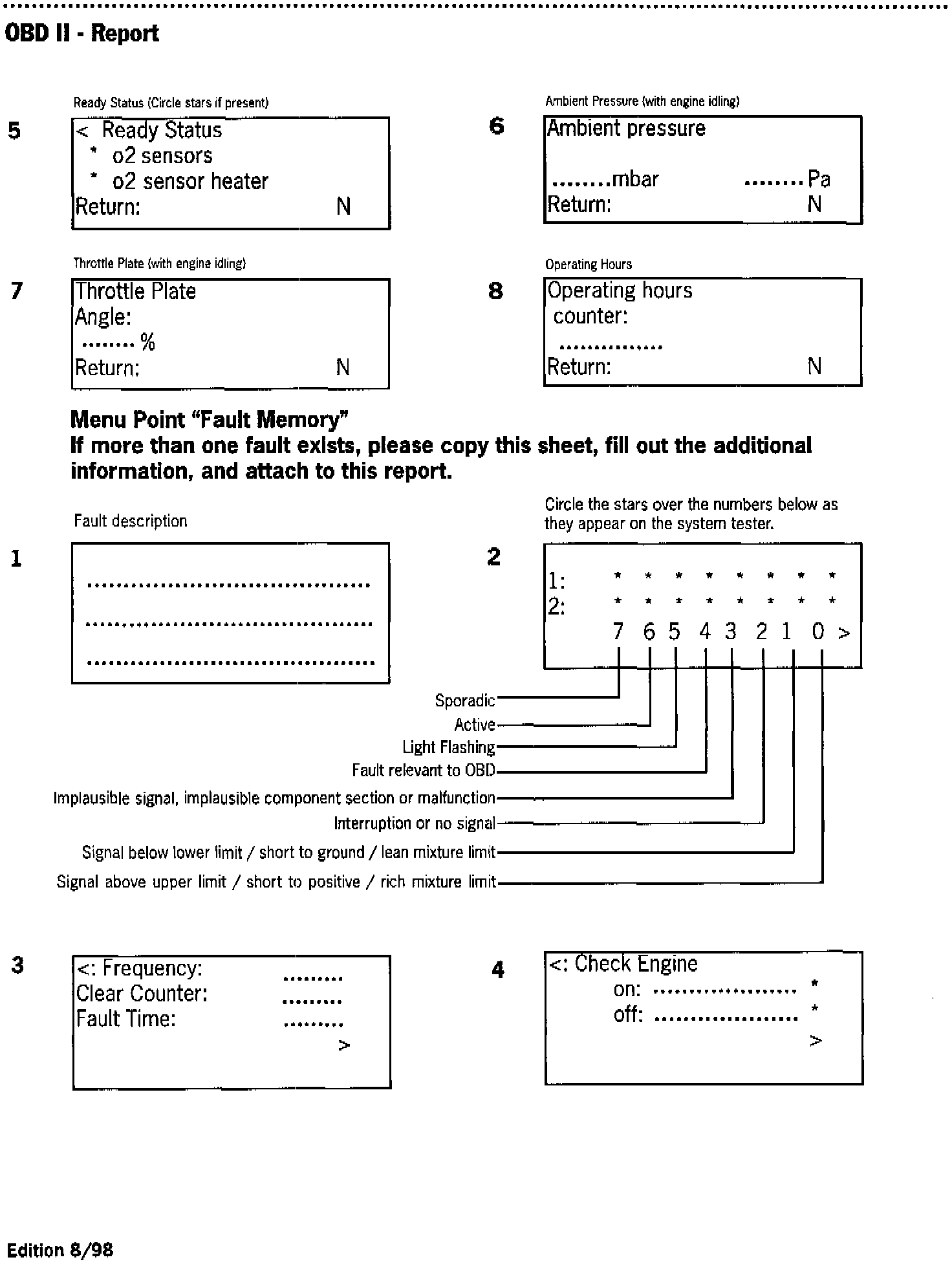

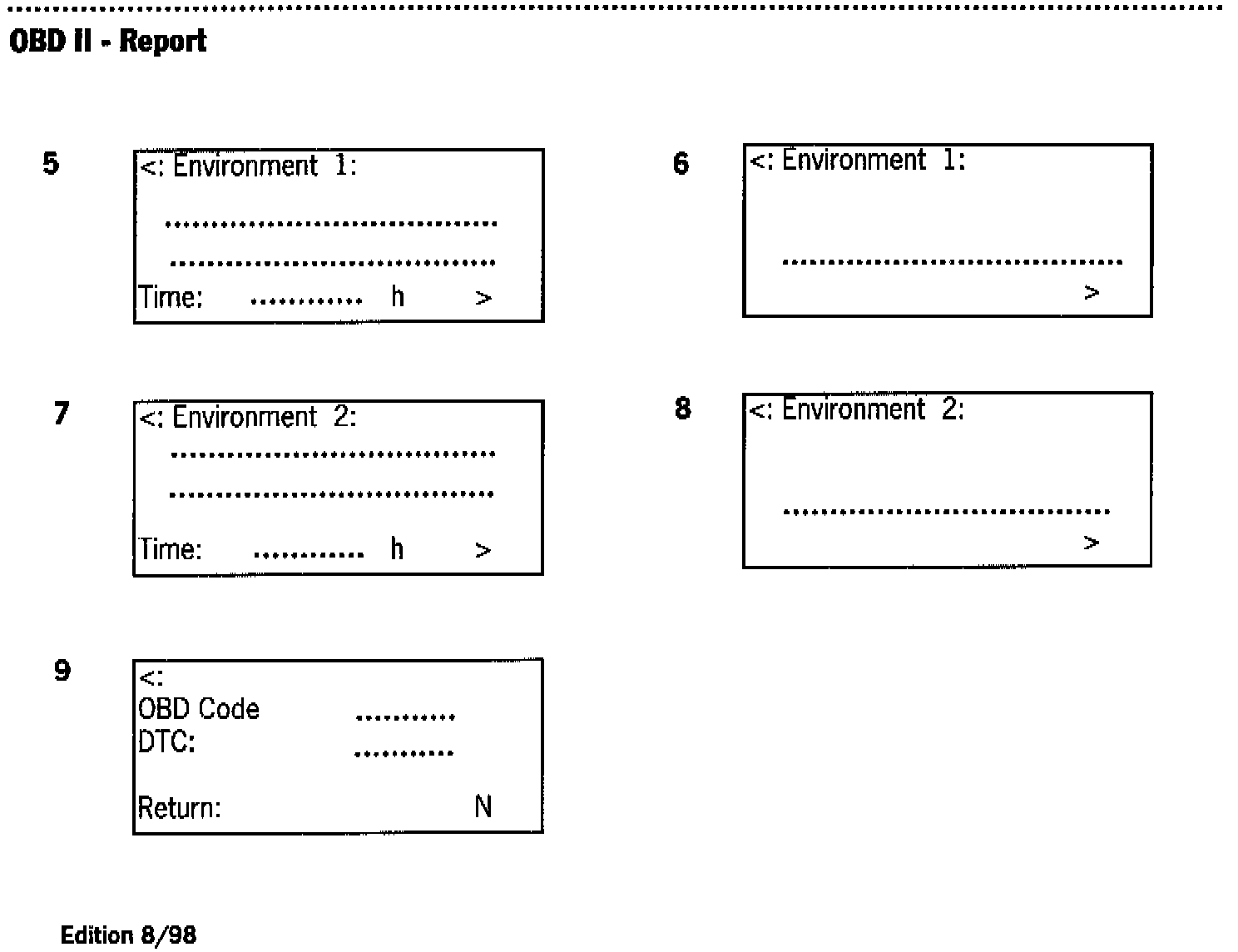

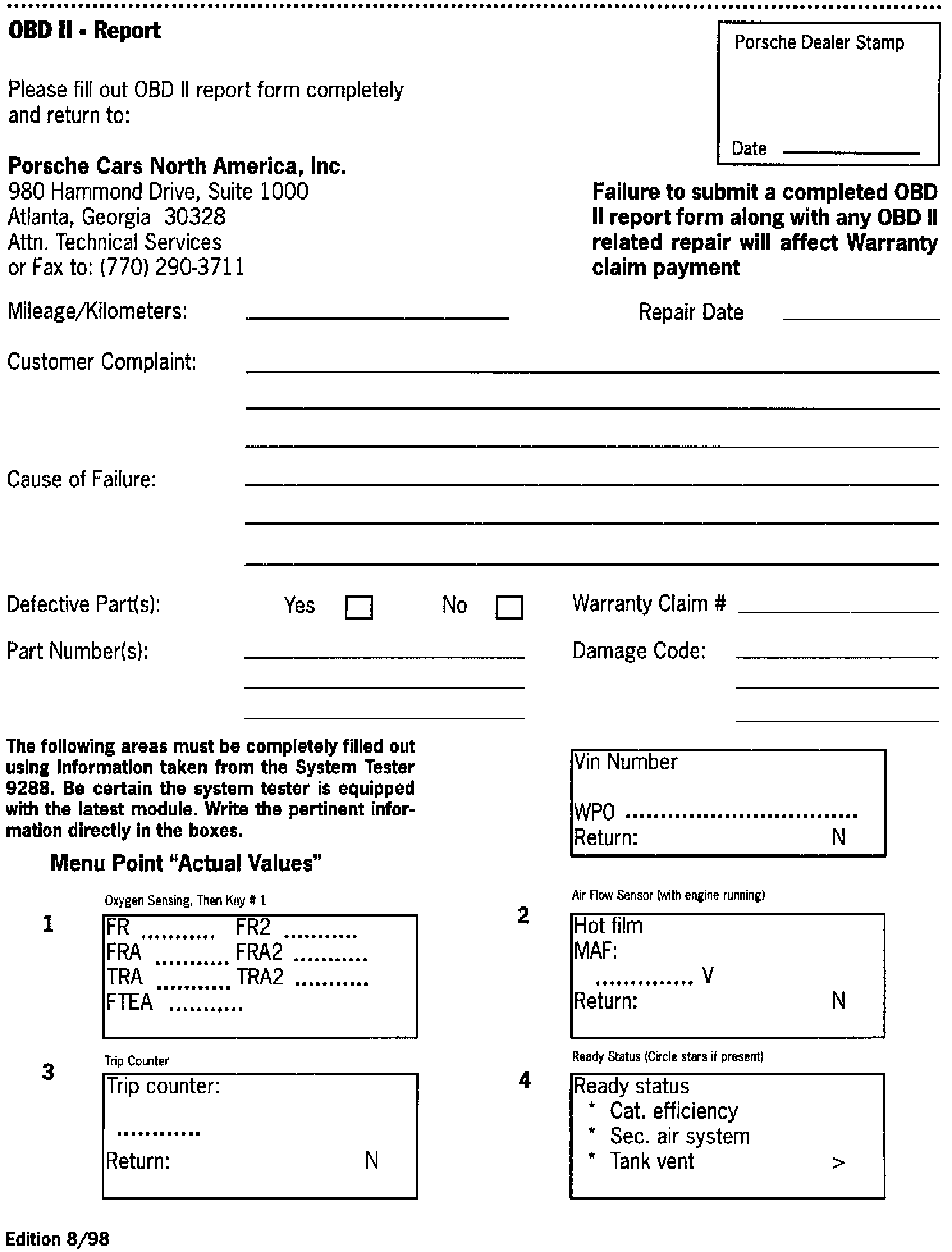

If an OBD II equipped Porsche vehicle enters the workshop with the "Check Engine" light on, all information from the customer and the vehicle fault memory must be gathered and written down on the attached OBD II report form. Screen prints from the System Tester 9288 can be attached if available. This report, when completed, must be copied and sent or faxed to:
Porsche Cars North America, Inc.
980 Hammond Drive, Suite 1000
Atlanta, Georgia 30328
Attn. Technical Services or Fax: (770) 290-3711
When submitting a claim for an 0BD II related repair, a copy of the completed 0BD II report form must be included in the documentation for the warranty claim. An initial supply of forms is included with this bulletin. Additional forms may be ordered using the above mentioned telephone number.
Important:
Failure to submit the completed OBD II report form along with any OBD II related repair will affect Warranty claim payment!
Care must be taken not to erase information from the control unit memory before it has been recorded on the 0BD II report form. If necessary, attach an extra sheet to the report form with any additional information.
Warranty information:
For Warranty claim use:
Labor Operation: Description Time Units
0BD II REP Complete 0BD II report 30 TU
