Crankcase Disassembly / Assembly

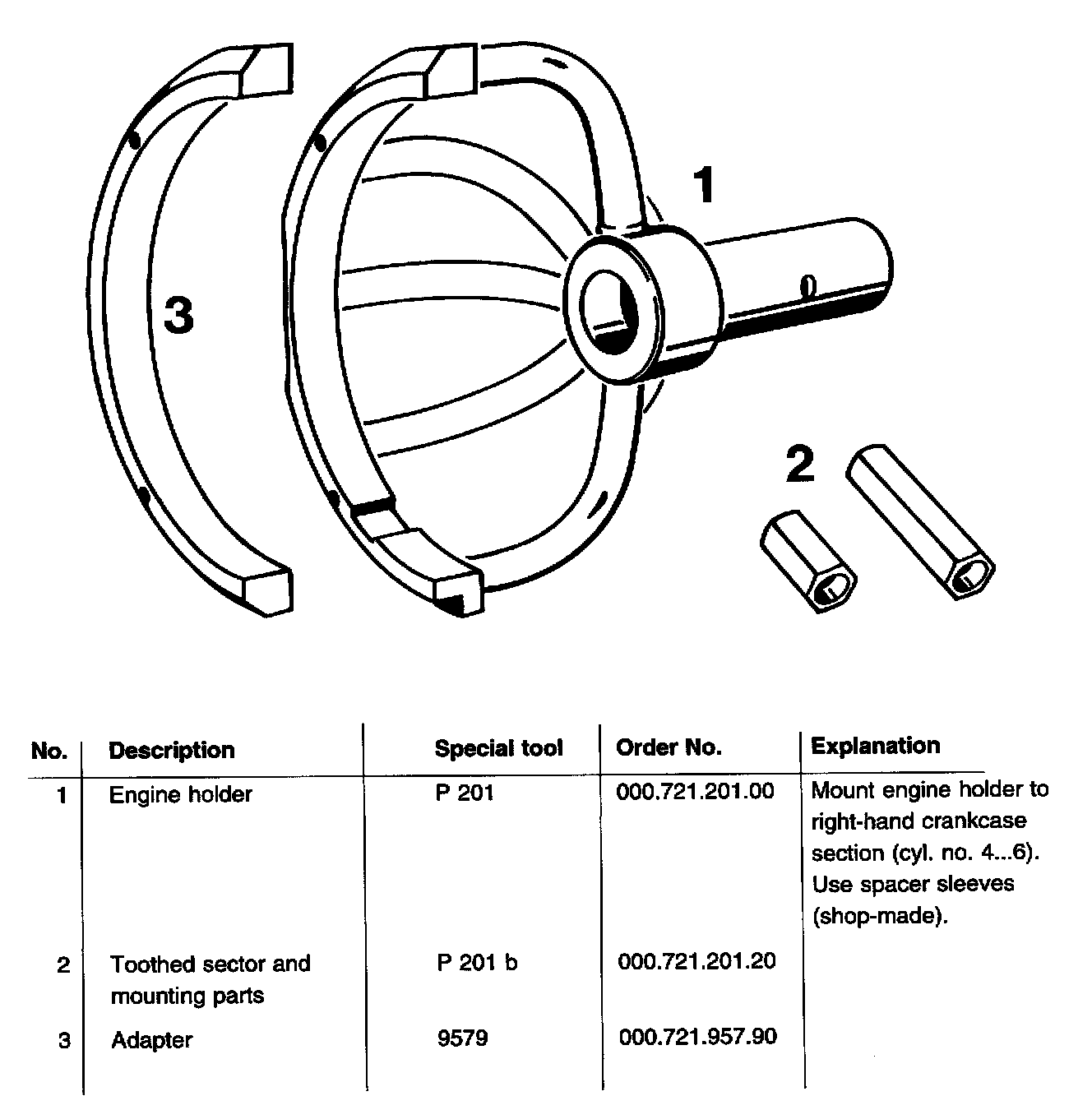

Engine Holder

Part 1 Of 2:




Part 2 Of 2:

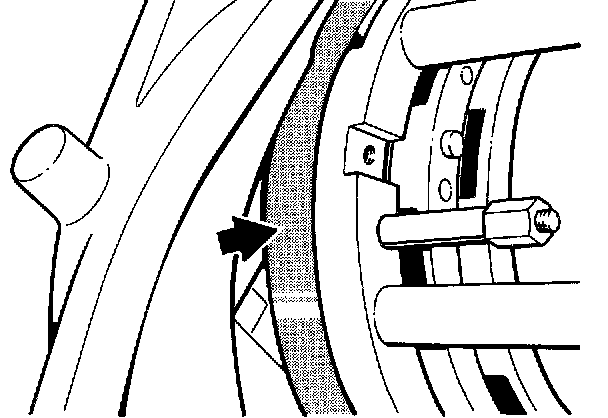

Assembly Note: Fit adapter (Special Tool 9579) between engine mount and right-hand crankcase half.

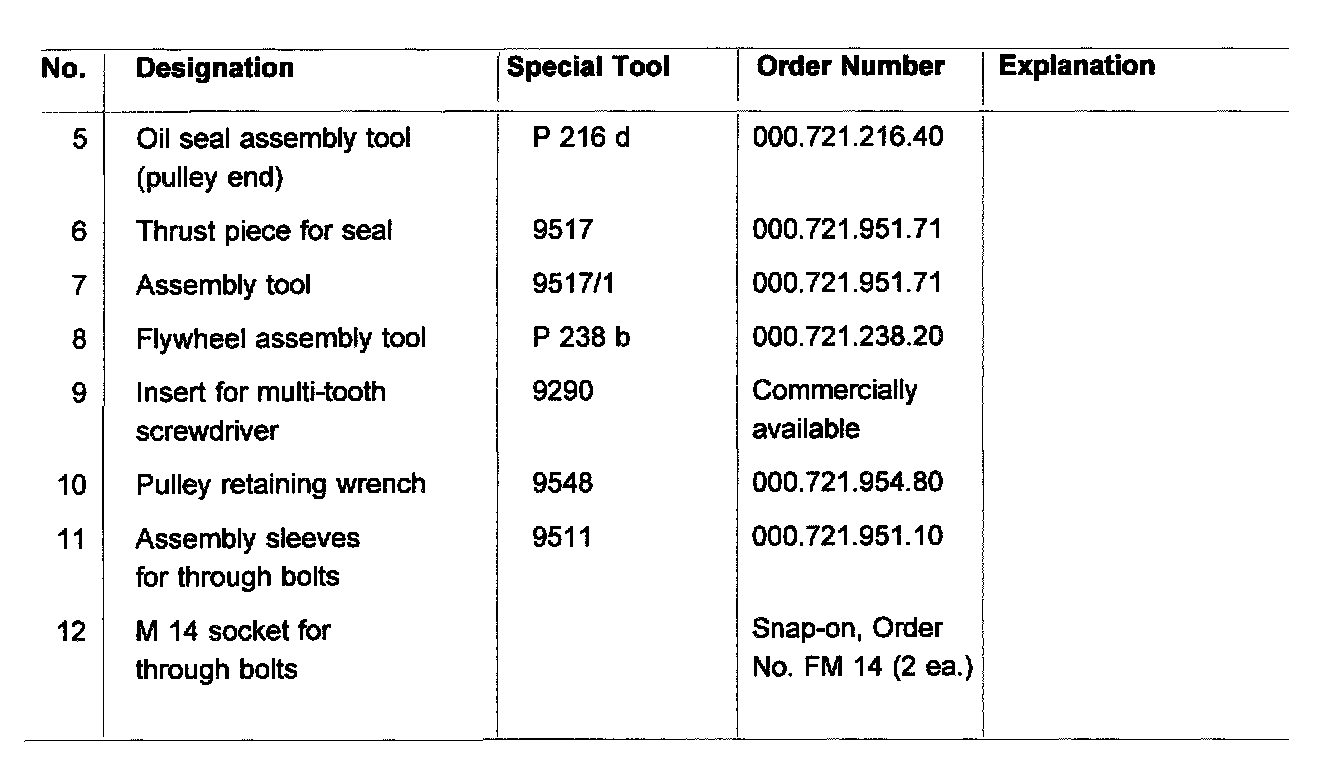

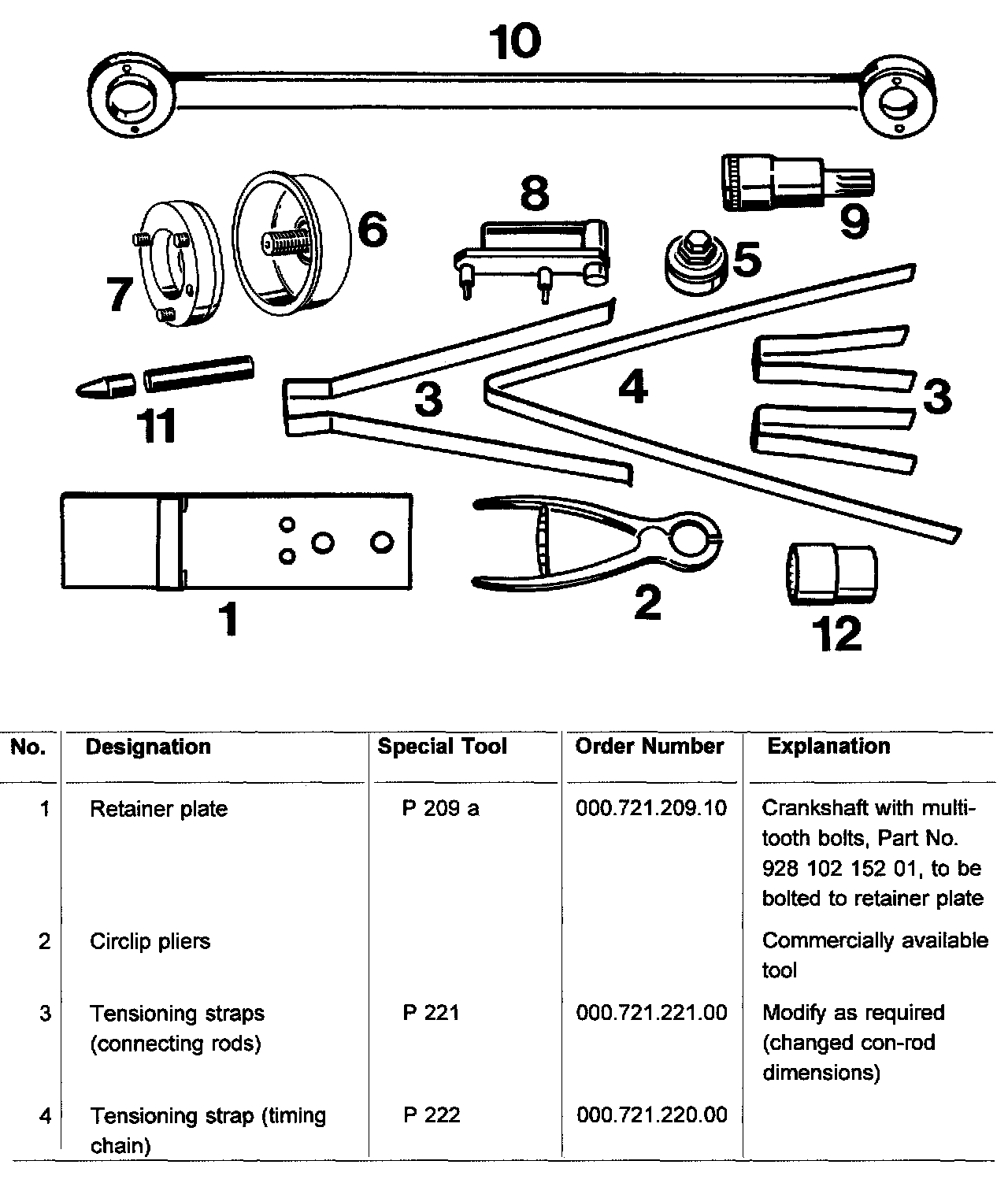

Crankcase Disassembly / Assembly

Part 1 Of 2:




Part 2 Of 2:
