Drive links (ABS and ABS / ABD)

- The Drive links menu can be used to activate the following actuators (drive links) with System Tester 9288:

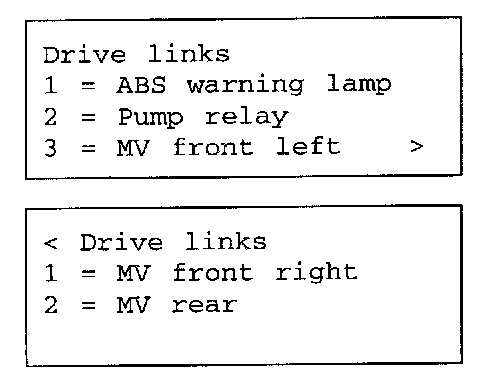

Solo ABS

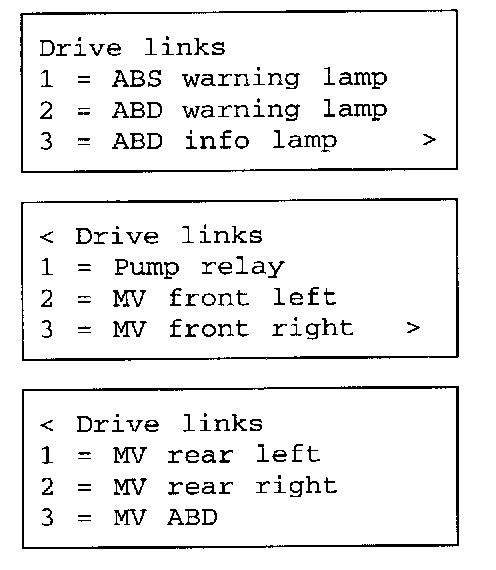

ABS/ABD

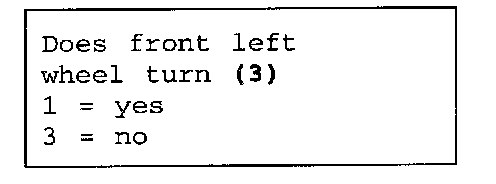

- When checking the solenoid valves (MV), the ,,Does wheel turn or is wheel locked- up" messages may be displayed several times. The test step (sequence) is therefore indicated as a number in brackets.

Example: The digit 3 in brackets (following the text) refers to test step No.3.



Important note

With the solenoid (MV) check, both operation and assignment (check for interchanging of electrical wires or hydraulic pipes) can be checked.

If no function or an incorrect function (reaction) is obtained when the selected actuator (drive link) is activated with System Tester 9288 or if the message "See Diagnostic / test plan" is displayed, carry out the troubleshooting procedure according to the test plan (troubleshooting list).
