Hydraulic Control Assembly - Antilock Brakes: Locations

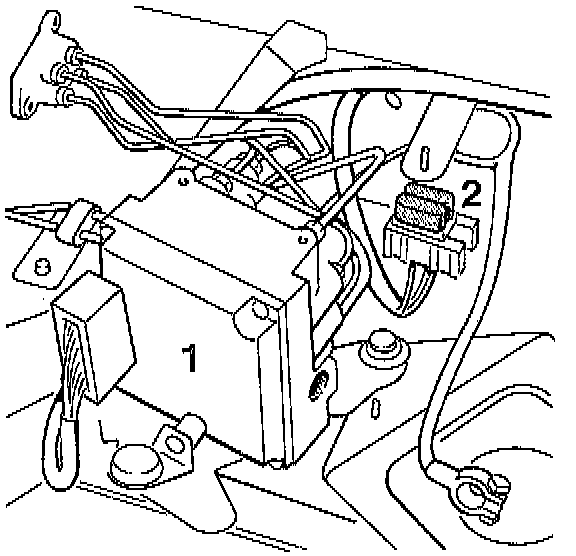

The hydraulic unit (No.1 is located in the left hand front area of the luggage compartment.

The hydraulic unit features four hydraulic outputs (4 channel system).
