Retrofitting Procedure

Remove front compartment carpet, spare tire, protective cover, fuel tank and battery

No. Operation Instructions

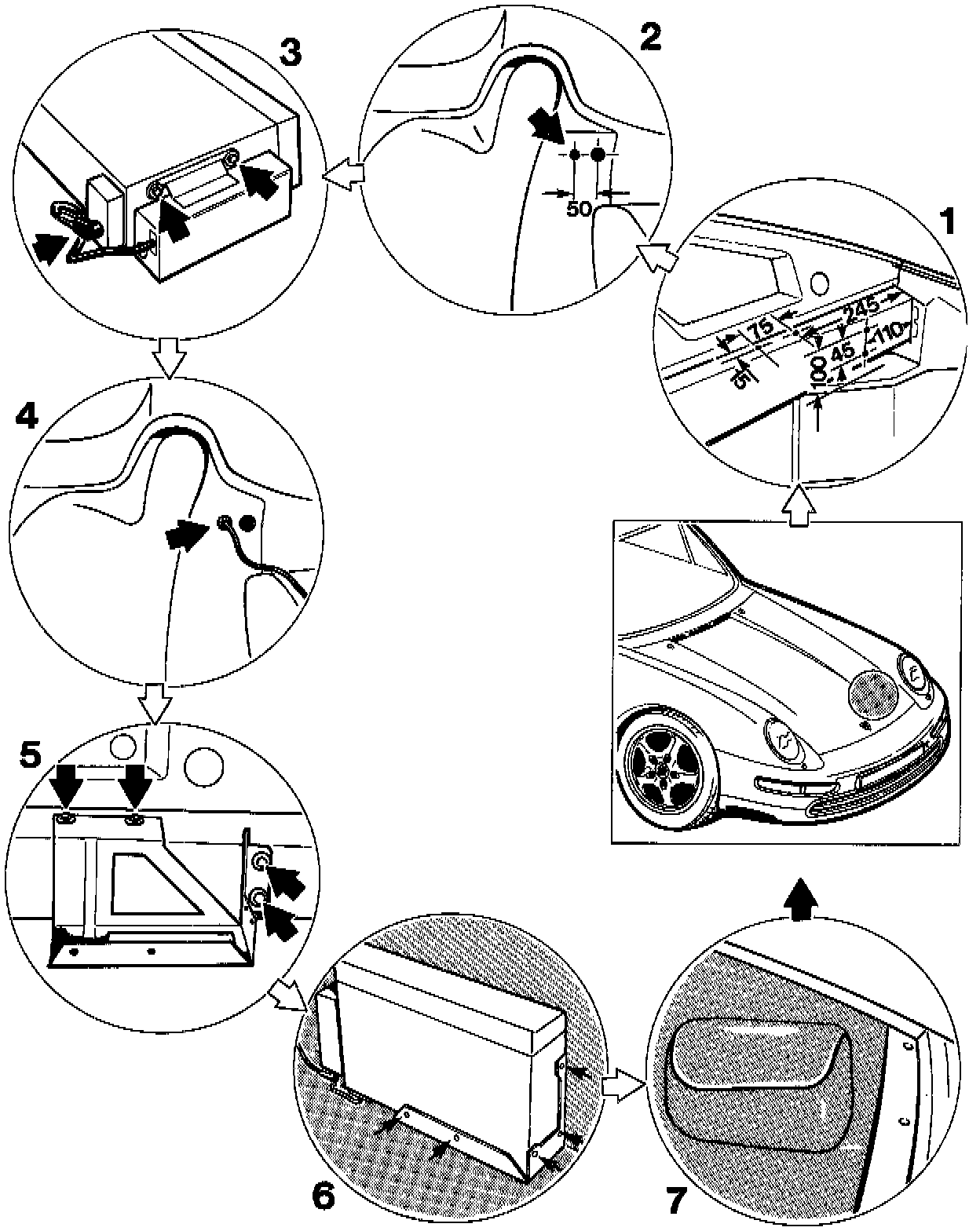

1 Insert pop rivet nuts for Scribe attachment points for CD changer bracket
attachment of the CD changer on left-hand front end to side member. Using a 9.5 mm dia.
bracket into side member drill bit, drill holes into side member according to scribe
marks. Insert M 6 pop rivet nuts into side member and rivet in place using a pop rivet nut gun,

2 Drill 20 mm dia. hole for Scribe hole for routing of CD changer/radio
routing of connecting wire connecting wire on bulkhead and drill to 20 mm dia.

3 Finish assembly of Remove transport locks from CD changer.
CD changer Cover open holes on CD changer using the self-adhesive sheets supplied. Fit interface to CD changer using M 4 x 8 combination screws (4 pc.). Connect interface/CD changer wiring.

4 Insert connecting wire Route connecting wire across hole in bulkhead, put grommet into place and insert connecting wire into radio. Tie connecting wire to wiring harness along side member.

5 Install and connect battery Enter radio code, correct clock setting and carry out system adaptation.

6 Fit bracket for CD changer Fit CD changer bracket to side member, using M 6 x 16 combination screws (4 pc.).

7 Fit CD changer Plug connecting wire into interface (CD changer). Fit CD changer to CD changer bracket, using M 4 x 8 combination screws (5 pc.).

8 Check CD changer operation

9 Fit spare tire, modified front
compartment carpet and
trim for CD changer
