Disassembly / Assembly

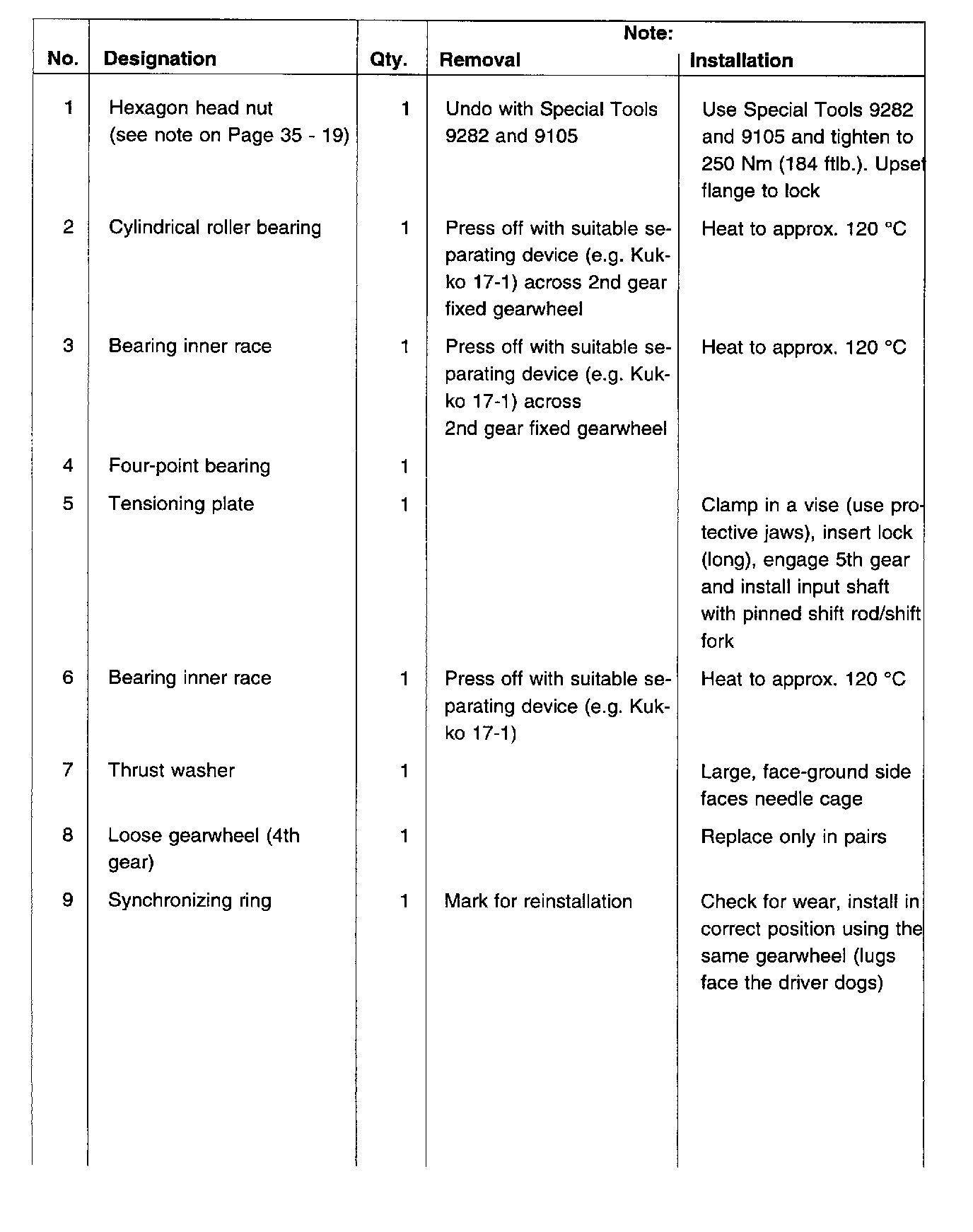

Mainshaft Disassembly/Assembly (Part 1 Of 3):

Mainshaft Disassembly/Assembly (Part 2 Of 3):

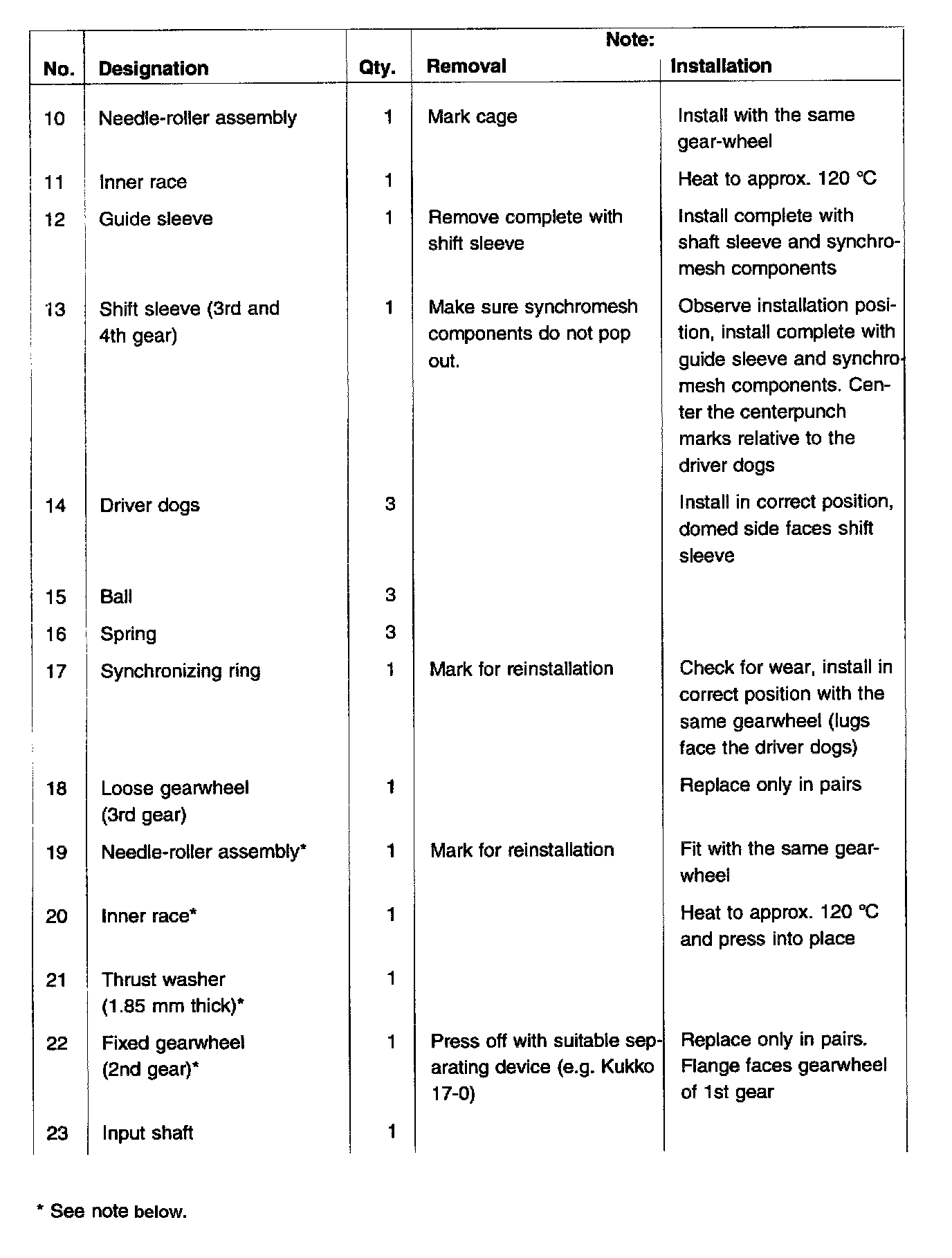

Mainshaft Disassembly/Assembly (Part 3 Of 3):

NOTE:
- Since 1 October 1994, the fixed wheel of second gear (No. 22) has been firmly fixed to the drive pinion; the needle cage (No. 19) runs directly on the polished shaft.
- The thrust washer (No. 21) and the inner ring (No. 20) are no longer fitted.


Disassembly Notes

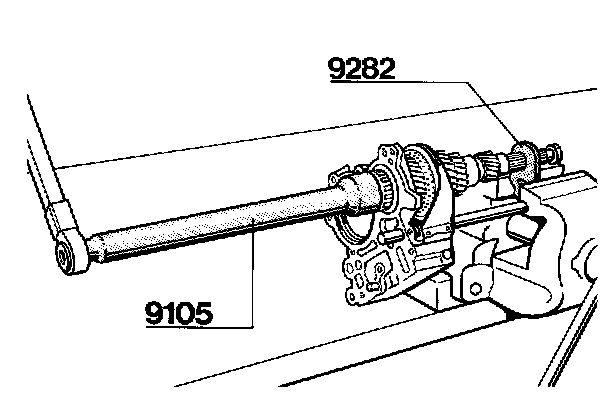

1. Mount retaining plate 9282 in vise, fit input shaft and undo hexagon-head nut with Special Tool 9105.
2. Use a suitable tool (e.g. Kukko 17-1) to press all parts off the input shaft over the 2nd gear wheel.

Assembly Notes





1. To inspect synchronizing rings, press rings onto the gear wheel tapers and use a feeler gauge to measure gap "A".
- Assembly dimension:
New: 0.9 mm minimum
Wear limit: 0.6 to 0.7 mm

NOTE:
- Transmission shafts without recesses for securing the hexagon nuts have been installed since September 1995.
- Self-locking hexagon nuts are used on these shafts, and these nuts must always be replaced in every transmission repair.
