Shift Cable: Service and Repair

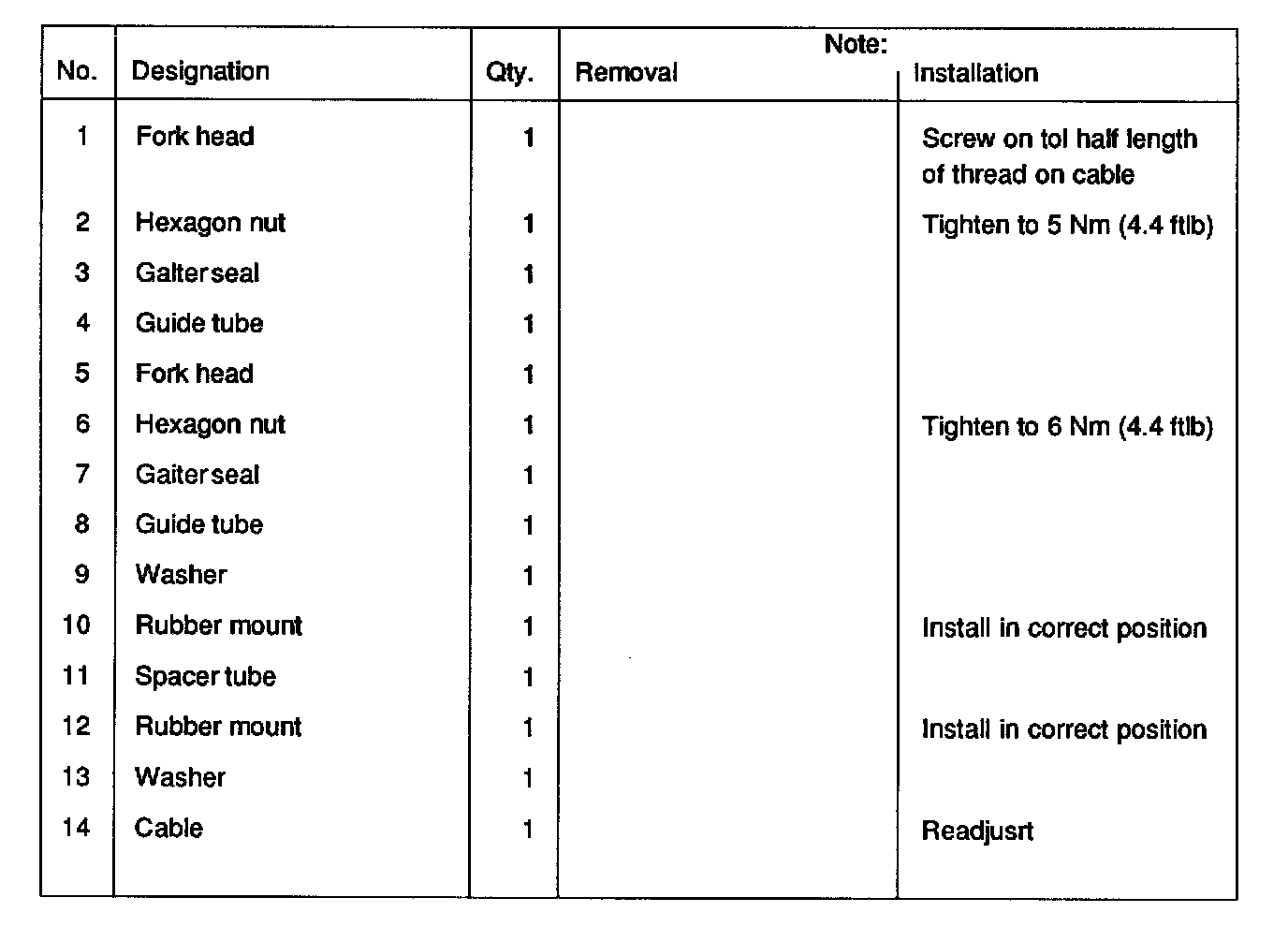

Shift Cable Replacement (Part 1 Of 2):

Shift Cable Replacement (Part 2 Of 2):

Removal
1. Remove transmission undertray and underside panel.

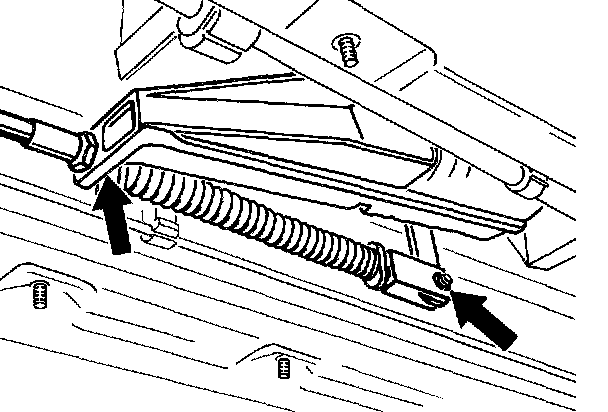

2. Disconnect cable on operating lever and remove fork head.
3. Disconnect guide tube on bracket.





4. Disconnect cable on selector lever casing and disconnect guide tube,

Installation
1. Installation is carried out in reserve order.
2. Adjust cable for selector mechanism.
