Clockspring Assembly / Spiral Cable: Service and Repair

Removing and installing contact unit
1. Remove airbag steering wheel. Service and Repair

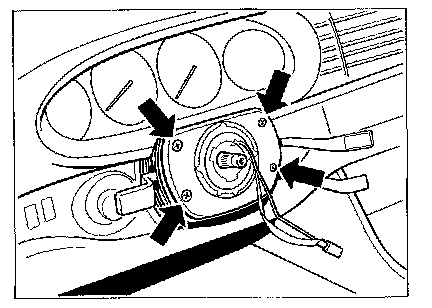

2. Undo and lift out cover.

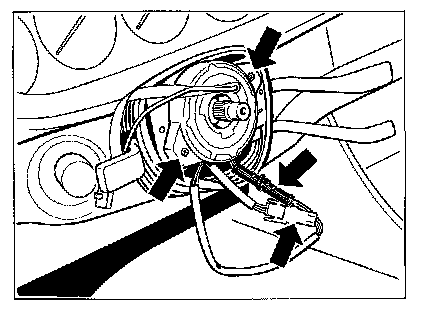

3. Disconnect plug connectors.



4. Undo mounting screws




Note

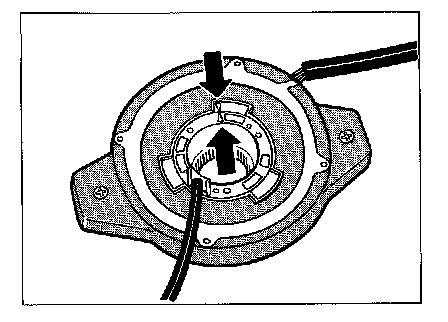

Before fitting the contact unit, align front wheels to straight-ahead position and place contact unit in center position (approx. 4 1/2 turns from left-hand or right-hand end stop). The precise center position is indicated by two arrows.

New contact units are locked in the center position. The lock is not removed until the contact unit has been fitted.
