Engine Cooling Fan Hub - Available as Separate Part
Group1
Model
911 C2/C4
Turbo
Number
9306
Part Identifier
1905
October 5, 1993
Subject:

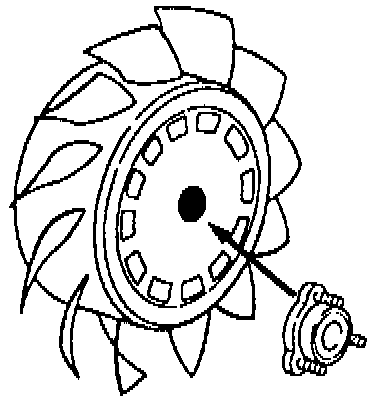

The engine cooling fan hub (with bearing) is now available as a separate part.
ATTENTION: Service Manager / Service Technician
Models Affected:
911 Carrera 2/4 1989-on
911 Turbo 1991-on
Repair Information:
The hub can be removed and installed using a normal shop press. The hub should be used when a vehicle is being repaired for a noisy or damaged fan bearing or fan hub.
The fan hub can be installed on engine cooling fans with the following part numbers:
Description Part Number
Cooling fan 964 106 015 02/20/30/75/76
Cooling fan 930 106 015 00
Parts Information:
Description Part Number
Engine cooling fan hub 964 106 051 30
Warranty Information (If applicable):
Damage Code: 1905 10 0002
Labor 911 C2/C4 Turbo
19051500 R+R Fan 70 TU 160 TU
19054950 R+R Fan Hub 20 TU 2O TU
