Piston: Service and Repair

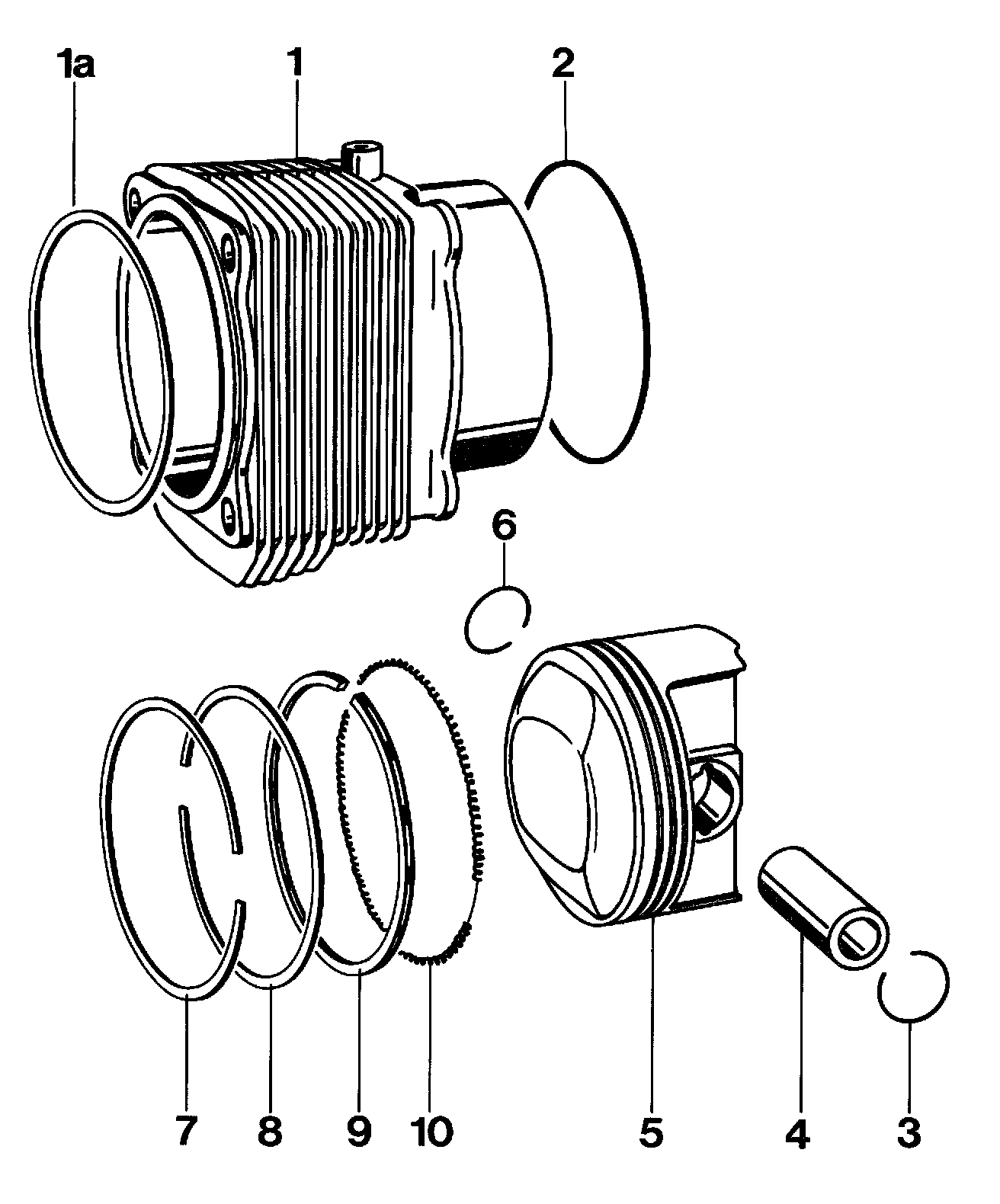

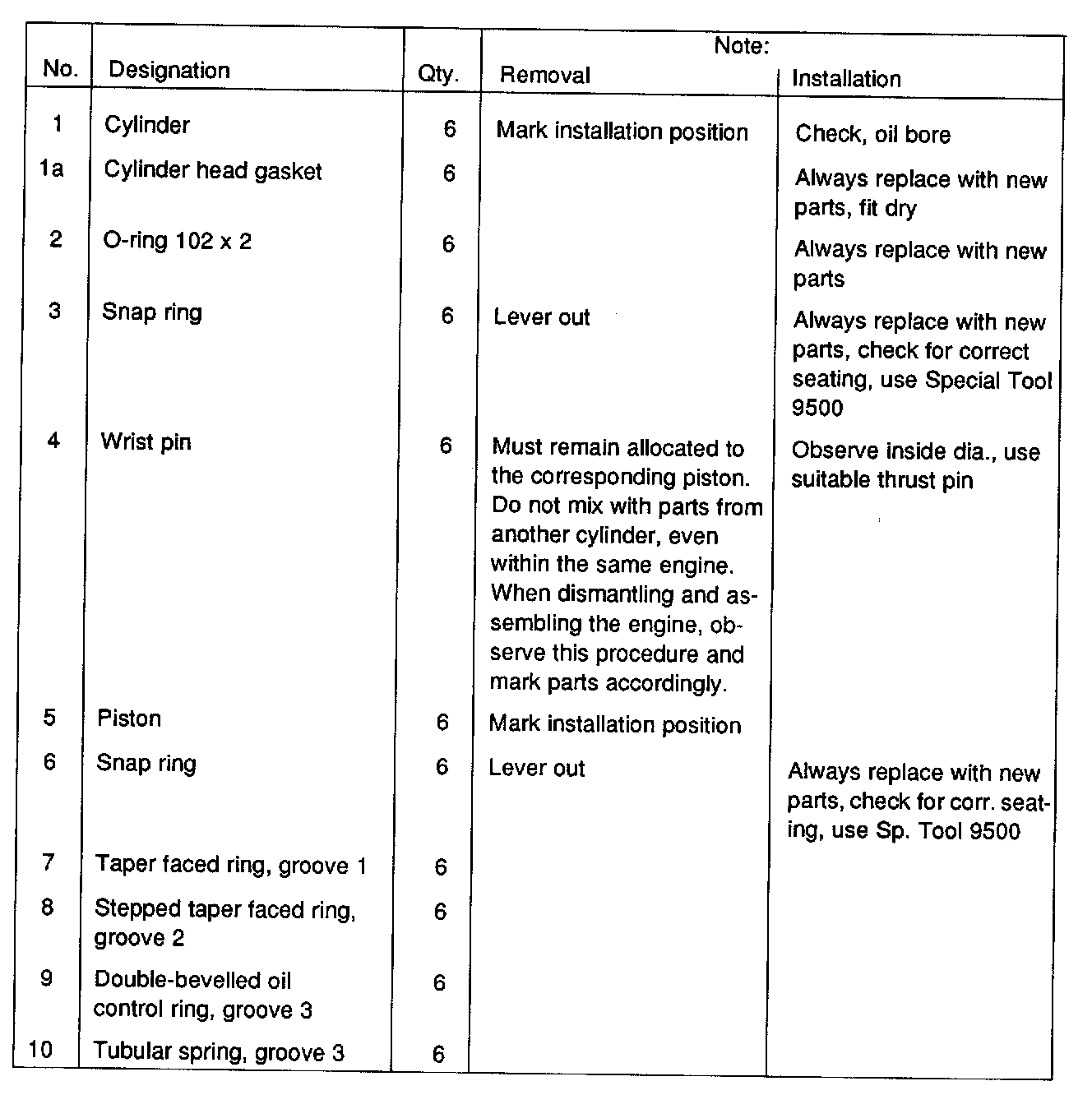

Dismantling And Assembling Pistons And Cylinders








Assembly Note



Lift off cylinder head only in this reinforced area (arrows) using a suitable tool. If required, soak sealant residues with adhesive remover, e.g. by Loctite, and remove carefully.
